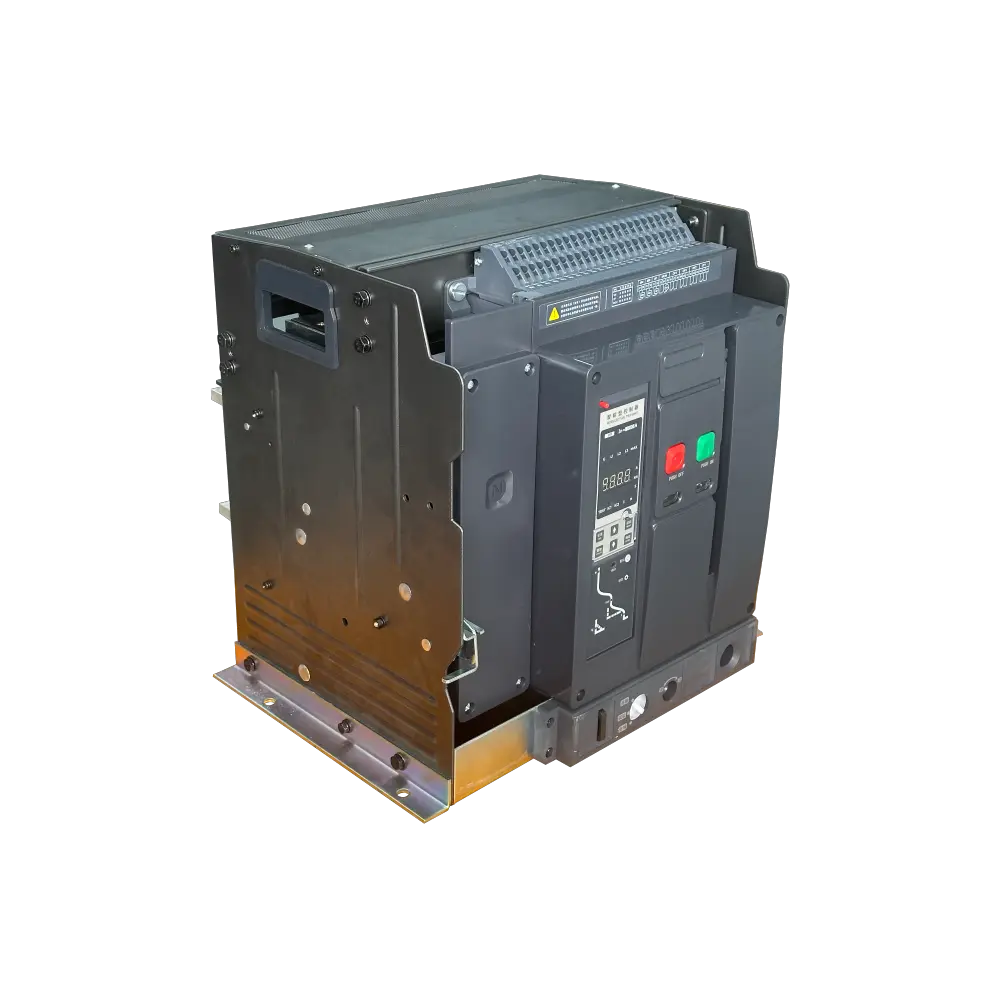

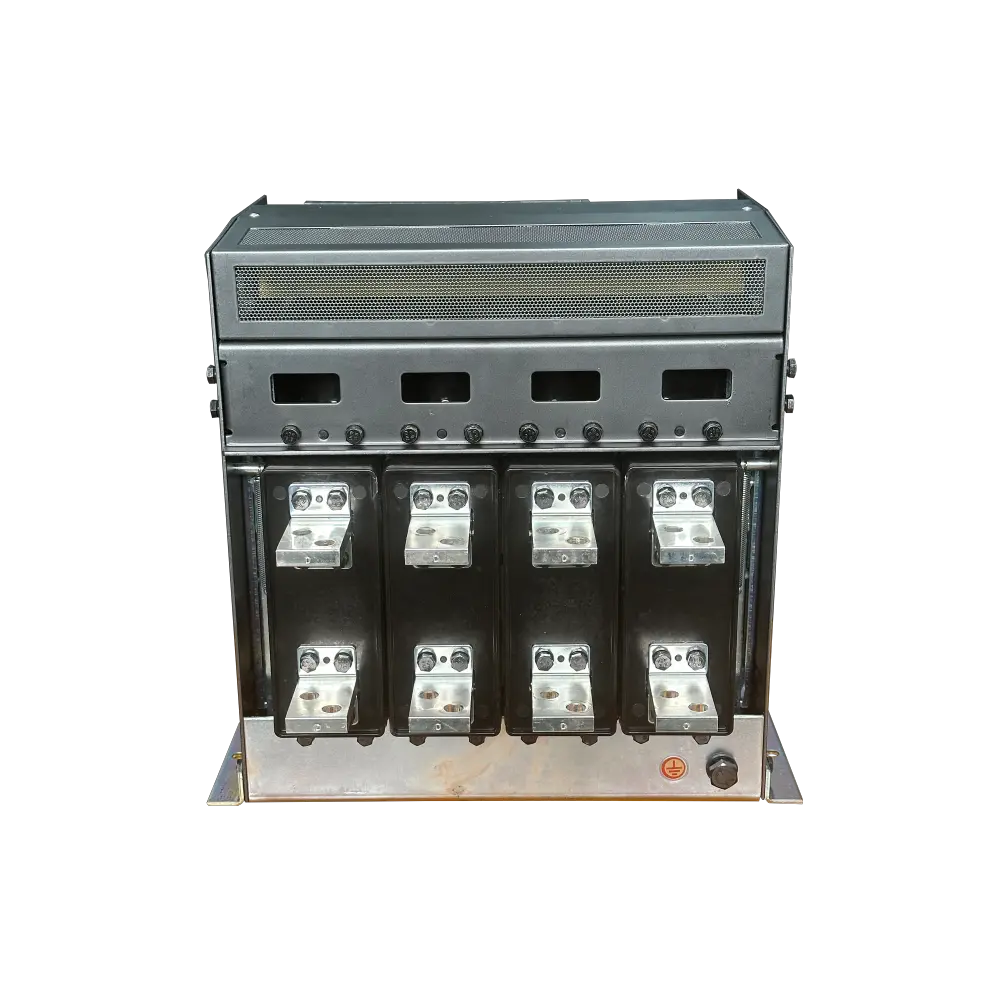

Air circuit breaker WEW1-1000 1000 amp acb withdrawable type acb fixed type 400VAC/690VAC 1000A 3/4p acb
Air circuit breaker WEW1-1000 1000 amp acb withdrawable type acb fixed type 400VAC/690VAC 1000A 3/4p acb
Air circuit breaker WEW1-1000 1000 amp acb withdrawable type acb fixed type 400VAC/690VAC 1000A 3/4p acb

Air circuit breaker WEW1-1000 1000 amp acb withdrawable type acb fixed type 400VAC/690VAC 1000A 3/4p acb

Rated Current : 1000A

Number Of Poles : 3P/4P

Rated Working Voltage : 400V/690V

    Contact us
    Product Details

    Introduction to 400V Air Circuit Breakers (ACB) and Their Applications

    In the realm of electrical engineering, the importance of circuit protection cannot be overstated. The use of reliable and efficient circuit breakers is crucial in safeguarding electrical systems from overloads and short circuits. One such essential component is the 400V air circuit breaker (ACB), which plays a pivotal role in ensuring the safety and stability of electrical installations. In this article, we will delve into the world of 400V air circuit breakers, exploring their features, applications, and the critical role they play in modern electrical systems.

    Understanding 400V Air Circuit Breakers

    A 400V air circuit breaker is a type of circuit protection device designed to operate at a voltage of 400V. It is capable of interrupting and breaking the flow of electrical current in the event of an overload or short circuit, thereby preventing damage to the electrical system and ensuring the safety of personnel and equipment. These circuit breakers are specifically engineered to handle the demands of low voltage applications, making them an integral part of various industrial, commercial, and residential electrical installations.

    Main performance index of WEW1 series circuit breaker

    WEW1 Moulded Case Circuit Breaker
    		 1000
    Rated operating current In (A),40℃
    		 200-400-630-800-1000
    Rated insulation voltage Ui (V) 1000
    Rated impulse withstand voltage (kV) 12
    Rated operational voltage Ue(V),AC 50/60Hz 400V/690V
    Use category B
    Rated operational voltage Ue(V),AC 50/60Hz 100%In
    Breaking capacity code M H
    Number of poles
    		 3P ■ ■
    4P ■ ■
    Rated ultimate
    short-circuit breaking
    capacity Icu (kA)
    		 AC380V/400V/415V 55 65
    AC690V 25 50
    Rated service breaking
    capacity Ics (kA)
    		 AC220/230/240V 42 55
    AC380/400/415V 20 42
    Rated short-time withstand
    current Icw (kA/1s)
    		 AC220/230/240V 42 55
    AC380/400/415V 20 42
    Mechanical life
    (CO recycle)
    		 Maintenance 20000
    Electrical life
    (CO recycle)
    		 AC415V,In 2000
    AC690V,In 1000
    Standard configuration Fixed Drawetry-pe
    The body of the circuit breaker ■ ■
    Drawer base ■ ■
    Intelligent controller ■ ■
    Upper and lower horizontal connecting wires ■ ■
    Indicating contact of opening/closing ■ ■
    Indicating contact of fault tripping ■ ■
    Auxiliary contact 4NO+4NC ■ ■
    Electric motor operating mechanism ■ ■
    Shunt releas ■ ■
    Optional accessories
    Phase partition Fixed Drawetry-pe
    Instantaneous undervoltage release □ □
    Time-delay undervoltage release □ □
    Opening and closing button lock □ □
    Lock for the drawer base □ □
    Lock for the separation position of the drawer seat □ □
    Key lock □ □
    Door interlock □ □
    Auxiliary contact 6NO+6NC □ □
    Electric indications of three positions on the drawer base □ □
    Steel cable interlock □ □
    Locking interlock □ □
    Dual power controller □ □
    External neutral line transformer □ □
    Zero-sequence transformer □ □
    Ground current transformer and its accessories □ □
    Dimension
    Dimension (mm)
    W×H×D
    		 Width (3P/4P) 36.5/46 46.5/46
    Height 43/55 51/55
    Depth 32.5/42 37/42
    Weight
    Weight(kg)/Fixed
    		 1P 23.7/24.4/25
    2P 32.9/33.5/34.2
    Weight(kg)/Drawer 3P 42.82/42.85/43.66
    4P 53.3/53.3/53.9

    Main performance index of WEW1 series circuit breaker

    1000 (2)wok1000609

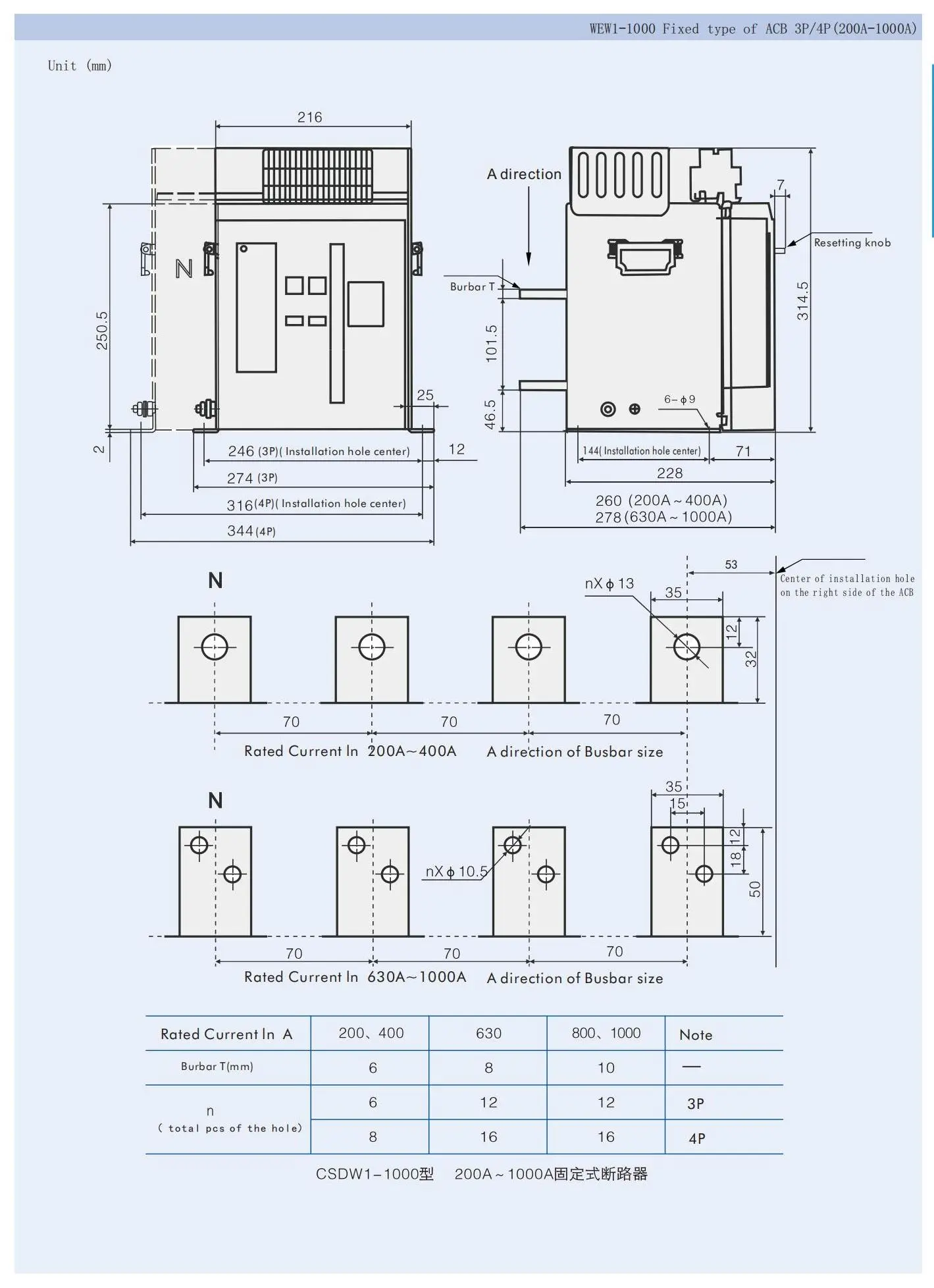

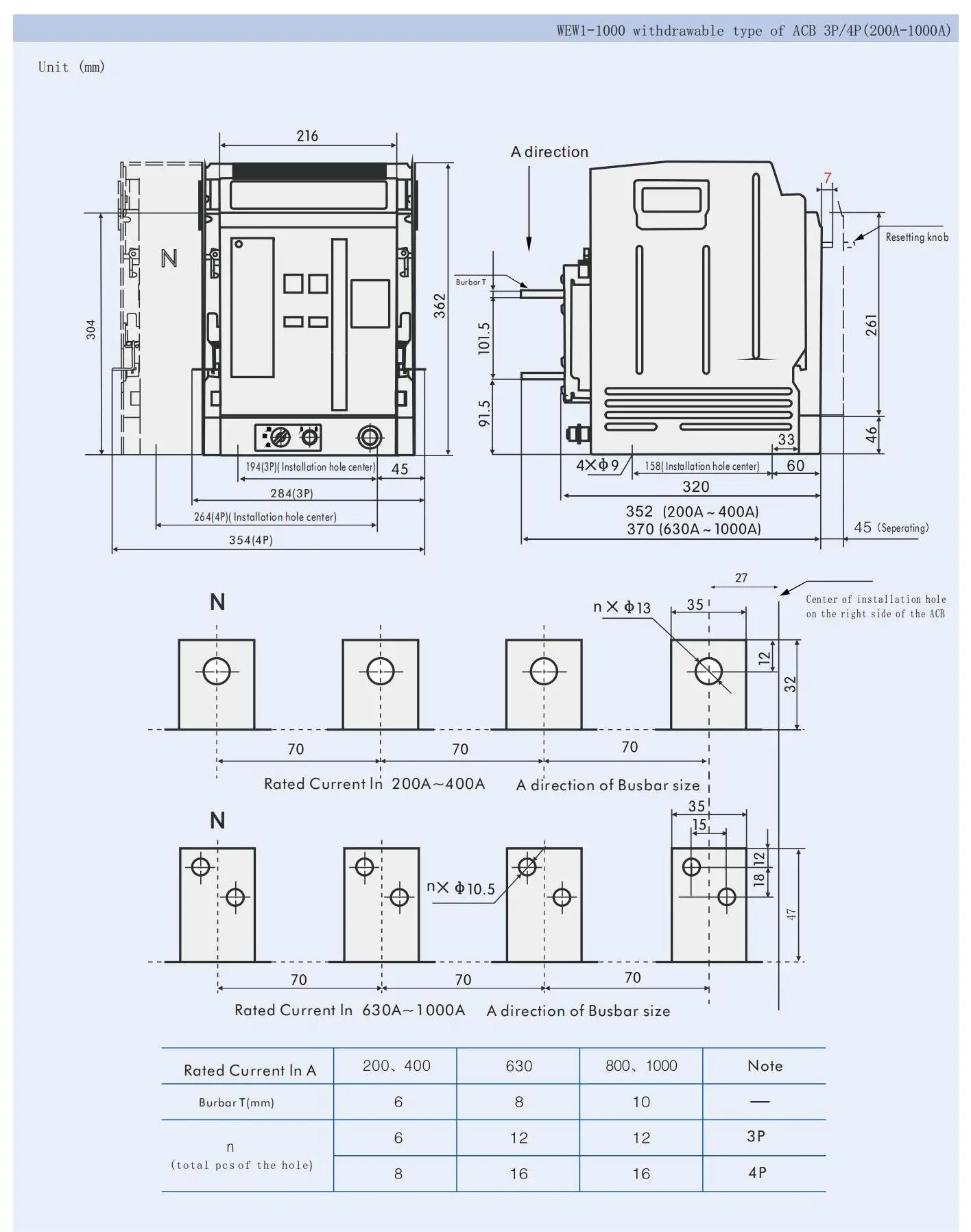

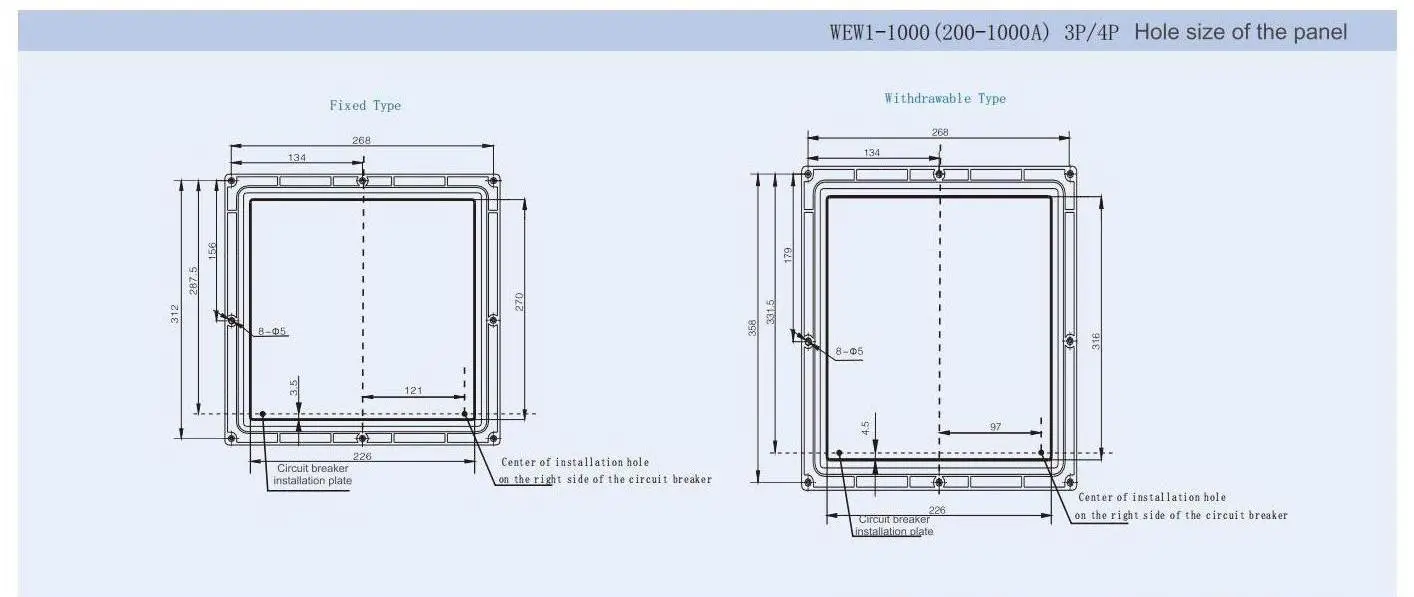

    Door frame size and installation hole spacing
