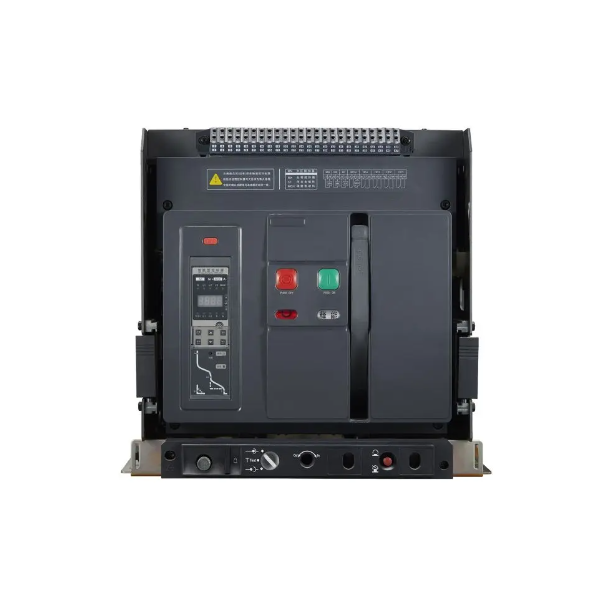

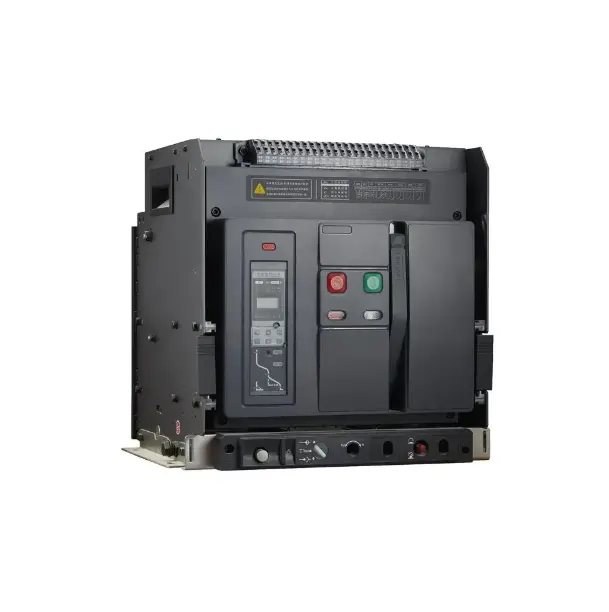

Comprehensive Overview of the WEW1-4000 Air Circuit Breaker

The WEW1-4000 Air Circuit Breaker (ACB) is a pivotal component in modern electrical distribution systems, designed to offer robust protection and operational reliability. Available in both withdrawable and fixed types, this air circuit breaker is engineered to handle significant electrical loads with ease, making it a vital asset for industrial, commercial, and large residential applications. This article provides an in-depth look at the WEW1-4000 ACB, its features, applications, and the crucial role it plays in ensuring electrical safety.

Key Specifications

• Rated Current:4000A
• Number of Poles:3P/4P
• Rated Working Voltage:400V/690V

Introduction to Air Circuit Breakers (ACBs)

Air Circuit Breakers (ACBs) are essential devices used in electrical distribution networks to protect circuits from overloads, short circuits, and other abnormal conditions. The WEW1-4000 model, with its high-rated current and versatile pole configurations, is specifically designed to offer comprehensive protection and control for high-power electrical systems.

1. Design and Construction

The WEW1-4000 ACB is available in two main types:

• Withdrawable Type:This design allows for the circuit breaker to be easily removed from the panel for maintenance or replacement without disconnecting the entire system. This feature is particularly beneficial in environments where minimizing downtime is crucial.
• Fixed Type:The fixed type ACB is permanently mounted in place, providing a more rugged solution for high-demand applications where frequent access is not necessary. This type is known for its robustness and reliability in continuous operation.

The ACB is housed in a sturdy, insulated casing that ensures protection against dust, moisture, and accidental contact. This robust construction enhances the breaker's durability and ensures reliable performance in various environmental conditions.

2. Operational Principles

The WEW1-4000 ACB operates using a combination of air and electromagnetic mechanisms to provide accurate and reliable circuit protection:

• Air Insulation:The breaker uses air as the insulating medium, which allows for a compact design while maintaining high voltage isolation. Air-insulated breakers are known for their effective arc extinguishing properties and ease of maintenance.
• Electromagnetic Trip Mechanism:The breaker features an electromagnetic trip mechanism that responds to short circuit conditions by quickly interrupting the flow of current. This rapid response is essential for protecting equipment and preventing damage during fault conditions.
• Thermal-Magnetic Trip Unit:The WEW1-4000 ACB is equipped with a thermal-magnetic trip unit that combines both thermal and magnetic protection. The thermal unit responds to overload conditions by heating up and tripping the breaker, while the magnetic unit acts instantaneously in the event of a short circuit.

The Role of 400V Air Circuit Breakers in Electrical Safety

The Air circuit breaker WEW1 4000 air circuit breaker withdrawable type acb fixed type switch ODM, with its rated voltage of 400V and 690V, plays a critical role in maintaining electrical safety across various applications. Here's how:

1. Protection Against Electrical Faults

• Overload Protection:The thermal mechanism within the ACB ensures that prolonged overload conditions trigger the breaker to interrupt the circuit. This prevents overheating of conductors and equipment, reducing the risk of fire and extending the lifespan of electrical components.
• Short Circuit Protection:The magnetic trip mechanism responds instantly to short circuits, interrupting the current flow before significant damage can occur. This rapid action is crucial for preventing damage to electrical systems and minimizing the potential for hazardous events.
• Ground Fault Protection:Advanced ACBs, including the WEW1-4000, often include ground fault protection features that detect leakage currents and provide timely tripping to protect against shock hazards and equipment damage.

2. Enhancing Operational Efficiency

• High Breaking Capacity:With a high interrupting capacity, the WEW1-4000 ACB can handle substantial fault currents without sustaining damage. This capability is essential for ensuring the breaker remains effective in high-demand scenarios and contributes to the overall resilience of the electrical system.
• Adjustable Settings:The breaker allows for adjustment of trip settings, enabling customization according to the specific needs of the electrical system. This flexibility ensures optimal protection and operational efficiency.

3. Integration with Modern Technologies

• Digital Protection Relays:The incorporation of digital protection relays in modern ACBs allows for enhanced monitoring and control. These relays provide real-time status updates, fault diagnostics, and advanced protection settings, contributing to improved system management.
• Communication Interfaces:Many advanced ACBs feature communication interfaces that enable integration with Supervisory Control and Data Acquisition (SCADA) systems. This integration facilitates remote monitoring, control, and data analysis, empowering facility managers with greater visibility and control over the electrical infrastructure.

Applications of the WEW1-4000 ACB

The WEW1-4000 ACB is suitable for a wide range of applications due to its high current rating and versatile features:

1. Industrial Applications

In industrial settings, the WEW1-4000 ACB is used to protect heavy machinery, transformers, and electrical distribution networks. Its high interrupting capacity and reliable performance are essential for managing the electrical demands of large-scale operations.

2. Commercial Buildings

For commercial buildings, including office complexes and shopping malls, the ACB provides reliable protection for critical electrical systems. Its ability to handle high fault currents and its advanced protection features ensure the safety and efficiency of the building's electrical infrastructure.

3. Large Residential Systems

In large residential properties or multi-dwelling units, the WEW1-4000 ACB offers robust protection for high-power electrical systems. Its versatility in current ratings and pole configurations makes it suitable for managing complex residential electrical needs.

4. Renewable Energy Systems

The ACB is also used in renewable energy systems, such as solar and wind installations, where reliable protection of electrical circuits is crucial. Its high breaking capacity and advanced protection features contribute to the efficiency and safety of renewable energy projects.

The WEW1-4000 Air Circuit Breaker is a vital component in modern electrical systems, offering superior protection, reliability, and operational efficiency. With its high-rated current, versatile pole configurations, and advanced protection mechanisms, it plays a crucial role in safeguarding electrical installations against overloads, short circuits, and ground faults. Its integration with modern technologies further enhances its functionality, providing facility managers with greater control and visibility over their electrical infrastructure. Whether in industrial, commercial, or large residential settings, the WEW1-4000 ACB ensures the safety and resilience of electrical systems, making it an indispensable asset in contemporary electrical distribution.
