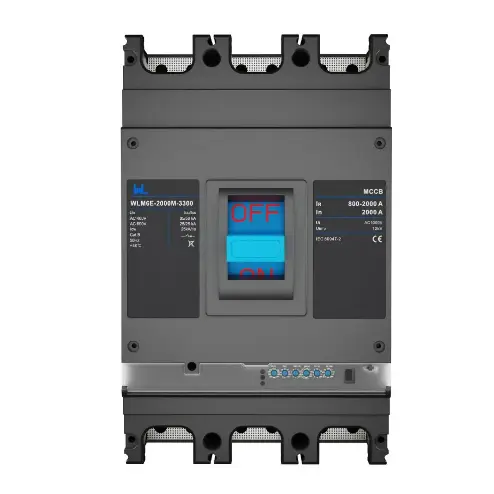

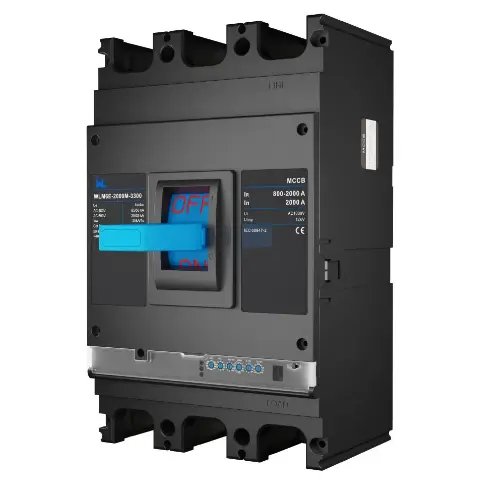

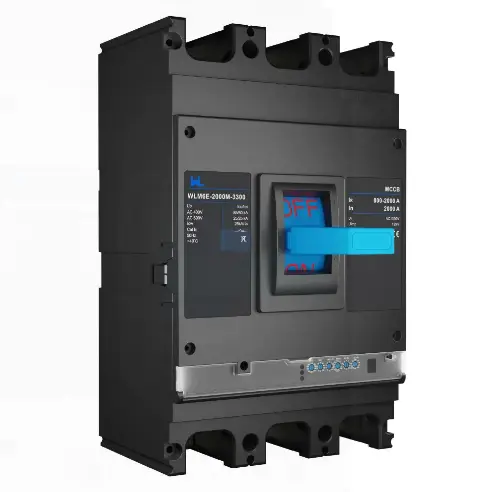

High-Amperage WLM6E-2000A-3300 Electronic Molded Case Circuit Breaker for Industrial and Commercial Applications

An electronic molded case circuit breaker (MCCB) is a type of electrical protection device used in industrial and commercial applications. It is designed to automatically interrupt the flow of electrical current in a circuit when an overload or short-circuit condition is detected. The WLM6E-2000A-3300 is a specific model of MCCB manufactured by a company, and it features a high amperage rating of 2000A and can be configured as either a three-pole (3P) or four-pole (4P) breaker.

MCCBs are essential components in electrical systems, providing reliable and efficient protection against electrical faults that can cause damage to equipment, start fires, or pose safety hazards to personnel. They are typically used in power distribution systems, motor control centers, and other industrial control panels. The electronic design of the WLM6E-2000A-3300 allows for precise and responsive tripping characteristics, ensuring that the circuit is interrupted quickly and safely in the event of an electrical fault. These breakers are available in various voltage ratings, including 400V and 690V, to accommodate different electrical system requirements. With their robust construction and advanced features, electronic MCCBs like the WLM6E-2000A-3300 play a crucial role in ensuring the safe and reliable operation of electrical systems in various industries.



Features of An electronic molded case circuit breaker



An electronic molded case circuit breaker (MCCB) is a sophisticated and advanced type of circuit protection device that offers several features to ensure reliable and efficient operation in industrial and commercial applications. Here are notable features of an electronic MCCB:



Electronic Trip Unit



The electronic trip unit is the heart of an electronic MCCB. It continuously monitors the electrical current flowing through the circuit and provides precise and responsive tripping characteristics. Unlike traditional thermal-magnetic trip units, the electronic trip unit uses microprocessor-based technology to accurately detect and respond to overload and short-circuit conditions. This feature ensures faster and more reliable protection for electrical systems.

Adjustable Trip Settings



Electronic MCCBs offer adjustable trip settings, allowing users to customize the protection parameters according to their specific requirements. These settings include long-time pickup (overload protection), short-time pickup (short-circuit protection), instantaneous pickup (high-level short-circuit protection), and ground fault pickup (earth leakage protection). By adjusting these settings, users can fine-tune the MCCB's response to different fault conditions, ensuring optimal protection for their electrical equipment.

Energy Measurement and Metering



Many electronic MCCBs come equipped with energy measurement and metering capabilities. They can measure and display various electrical parameters, such as current, voltage, power, energy consumption, and power factor. This feature provides valuable insights into the performance and efficiency of the electrical system, enabling better energy management and identifying potential issues before they escalate.



Communication and Integration



Electronic MCCBs often support communication protocols like Modbus, Profibus, or Ethernet, allowing them to be integrated into building management systems (BMS) or supervisory control and data acquisition (SCADA) systems. This integration enables remote monitoring, control, and data logging, enhancing the overall efficiency and manageability of the electrical system.



Zone-Selective Interlocking (ZSI)



Zone-Selective Interlocking is a feature that helps prevent unnecessary tripping of upstream circuit breakers during a fault condition. In a properly coordinated system, when a downstream circuit breaker detects a fault, it sends a restraint signal to upstream breakers, preventing them from tripping unnecessarily. This feature ensures that only the affected part of the system is isolated, minimizing disruptions and improving system availability.



Arc Flash Protection



Electronic MCCBs can be equipped with arc flash protection capabilities. Arc flashes are hazardous electrical explosions that can cause severe damage and injuries. By detecting the presence of an arc flash and rapidly interrupting the circuit, electronic MCCBs with this feature can help mitigate the risks associated with arc flash events, enhancing safety for personnel and equipment.



Diagnostics and Event Logging



Electronic MCCBs often include diagnostic and event logging features. They can record and store information about fault events, tripping occurrences, and other operational parameters. This data can be accessed and analyzed to identify patterns, troubleshoot issues, and improve maintenance practices, ultimately contributing to the reliable and efficient operation of the electrical system.



Self-Monitoring and Fault Diagnosis



Advanced electronic MCCBs often incorporate self-monitoring and fault diagnosis capabilities. These breakers can continuously monitor their own internal components and functions, checking for any potential issues or anomalies. If a problem is detected, the MCCB can generate diagnostic codes or alerts, which can be accessed through its user interface or communicated to a monitoring system.



Load Profiling and Energy Analytics



Some advanced electronic MCCBs offer load profiling and energy analytics capabilities, which can provide valuable insights into the energy consumption patterns and electrical loads within a facility or system. This feature involves continuously monitoring and recording various electrical parameters, such as current, voltage, power factor, and energy consumption, over time.



Maintenance Mode



Some electronic MCCBs offer a maintenance mode feature, which allows for safe and controlled testing or maintenance activities. When enabled, this mode temporarily overrides certain protection functions or trip settings, allowing technicians to perform necessary tasks without unintentionally tripping the breaker. This feature enhances safety and efficiency during maintenance operations, minimizing the risk of unplanned downtime.



Thermal Imaging and Temperature Monitoring



Advanced electronic MCCBs may incorporate thermal imaging or temperature monitoring capabilities. These features enable the breaker to detect abnormal temperature rises within the electrical system, which can indicate potential issues such as loose connections, overloaded circuits, or impending component failures. By identifying these thermal anomalies early, preventive measures can be taken to avoid more severe problems and unplanned outages.





Electronic molded case circuit breakers have revolutionized the field of circuit protection by offering advanced features and capabilities that go beyond traditional circuit breakers. With their electronic trip units, adjustable trip settings, energy measurement and metering, communication and integration options, zone-selective interlocking, arc flash protection, diagnostics and event logging, maintenance mode, and thermal imaging or temperature monitoring capabilities, electronic MCCBs provide a comprehensive and intelligent solution for protecting electrical systems.





These features not only enhance safety and reliability but also enable improved system visibility, energy management, and maintenance practices. By leveraging the power of microprocessor-based technology, electronic MCCBs offer precise and responsive protection, customizable settings, and advanced monitoring capabilities. As electrical systems become more complex and demanding, the adoption of electronic MCCBs has become increasingly important to ensure the safe, efficient, and sustainable operation of industrial and commercial facilities.
