Innovative JCB3LM-80 Series ELCB: Revolutionizing Electrical Safety Across Diverse Applications

The JCB3LM-80 series ELCB is an indispensable tool in the quest for comprehensive electrical safety. It provides earth leakage protection, overload protection, and short circuit protection, all within a single, reliable unit. This multifaceted protection ensures that electrical circuits operate safely, automatically disconnecting power whenever an imbalance or fault is detected. This rapid response is crucial in preventing potential disasters, making it an invaluable asset for homeowners and businesses alike.

The ELCB's core function is to detect and respond to earth fault currents, overloads, and short circuit currents. By attaching an ELCB to each separate circuit, the risk of a fault in one circuit affecting the others is minimized. This modular approach to electrical safety ensures that even if a problem arises in one part of the system, the rest remains unaffected, maintaining overall functionality and safety.

When an electrical fault occurs, such as a wire coming into contact with water or an individual experiencing an electric shock, current leaks to the ground. This leakage triggers the ELCB, which swiftly detects the imbalance in the electrical circuit and automatically shuts off the power supply. This rapid disconnection prevents further damage or harm, safeguarding both lives and property.

The JCB3LM-80 series ELCBs not only provide crucial safety features but also play a vital role in preventing electric shocks and fires. By swiftly cutting off the power supply upon detecting a fault, these devices significantly reduce the risk of electrocution and potential electric fires. In homes, where electrical accidents can occur due to faulty wiring, damaged appliances, or wet conditions, this protection is especially critical. With the JCB3LM-80 series ELCB, families can rest assured that their electrical systems are equipped with the latest safety technology.

Moreover, these ELCBs offer protection for electrical equipment and appliances. By shutting off the power when a fault is detected, they prevent damage to devices, thereby avoiding potentially costly repairs or replacements. This not only saves money but also ensures the longevity and reliability of electrical systems.

The JCB3LM-80 series ELCBs are designed to meet the evolving needs of modern electrical systems. They are increasingly used as backup protection for ground faults and direct and indirect contact electric shocks in low-voltage power distribution systems. As a safety device, they quickly break an electrical circuit to protect equipment and reduce the risk of serious harm from ongoing electric shocks. Additionally, they prevent fires caused by continuous ground faults when the over-current protection device fails to operate.

Earth Leakage circuit breakers with over-voltage protection, like the JCB3LM-80 series, also safeguard against over-voltage caused by power grid faults. This comprehensive protection ensures that electrical systems can withstand a variety of fault conditions, maintaining their integrity and reliability.

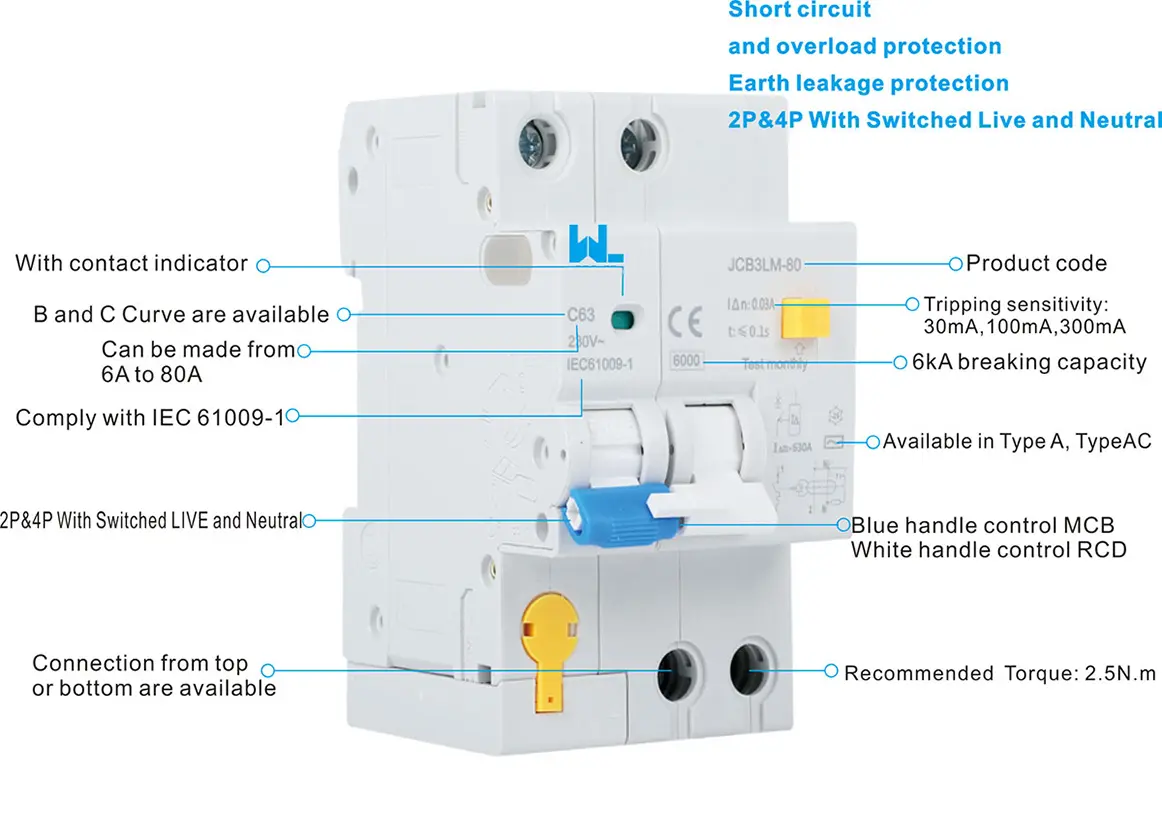

The main features of the JCB3LM-80 series ELCB make it an exceptional choice for electrical safety. With an electromagnetic design, it provides robust and reliable protection against earth leakage, overload, and short circuit currents. The breaking capacity of up to 6kA and rated currents ranging from 6A to 80A (including 6A, 10A, 20A, 25A, 32A, 40A, 50A, 63A, and 80A) ensure that these ELCBs can handle a wide range of electrical loads and fault conditions.

Furthermore, the availability of Type B and Type C trip curves allows for precise customization to meet specific circuit requirements. Trip sensitivities ranging from 30mA to 300mA provide additional flexibility, enabling users to tailor the ELCB to their specific needs. The choice between Type A or AC further enhances the adaptability of these ELCBs, making them suitable for a variety of electrical environments.

Installation of the JCB3LM-80 series ELCB is both convenient and straightforward. The 35mm DIN rail mounting option provides a secure and reliable installation method, while the flexibility to wire from the top or bottom offers additional ease of use. This convenience is crucial in a variety of electrical panels and enclosures, where space and accessibility can be challenging.

Compliance with international standards such as IEC 61009-1 and EN61009-1 underscores the commitment to quality, safety, and reliability of the JCB3LM-80 series ELCB. These certifications ensure that the ELCB meets stringent industry requirements, providing users with peace of mind regarding its performance and safety.

The versatility and reliability of the JCB3LM-80 series ELCB make it an ideal choice for a wide range of applications. In industries such as manufacturing, where electrical systems are crucial for daily operations, the ELCB provides the necessary protection to prevent costly disruptions and potential disasters. Commercial settings, such as offices and retail spaces, also benefit from the ELCB's ability to maintain electrical safety, ensuring the safety of employees and customers alike.

High-rise buildings, with their complex electrical systems, require robust protection to prevent electrical hazards. The JCB3LM-80 series ELCB offers this protection, ensuring that the electrical systems in these buildings operate safely and reliably. Households, too, can benefit from the ELCB's comprehensive safety features, providing a layer of protection against potential electrical accidents.

In conclusion, the JCB3LM-80 series ELCB is a revolutionary device that sets new standards in electrical safety. With its cutting-edge technology, comprehensive protection features, and compliance with international standards, it is a reliable choice for ensuring electrical safety and protection across diverse applications. Whether in industries, commerce, high-rise buildings, or households, the JCB3LM-80 series ELCB provides the peace of mind that comes with knowing that your electrical systems are protected by the best in the field. As the demand for electrical safety continues to grow, the JCB3LM-80 series ELCB stands ready to meet the challenge,
