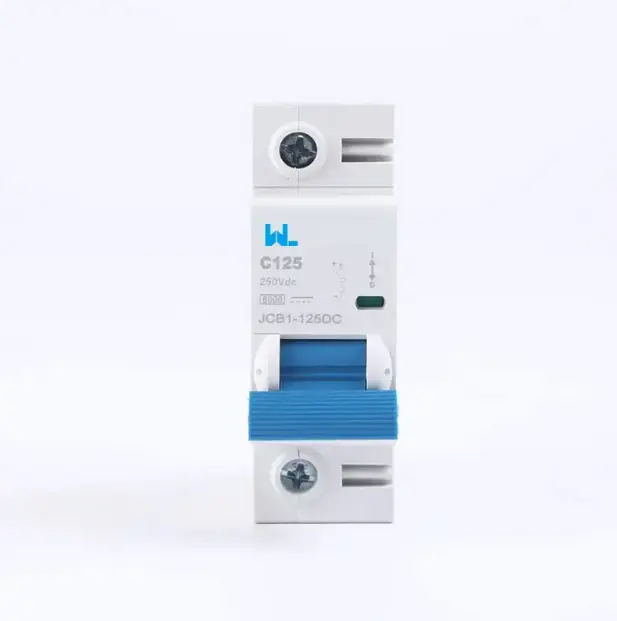

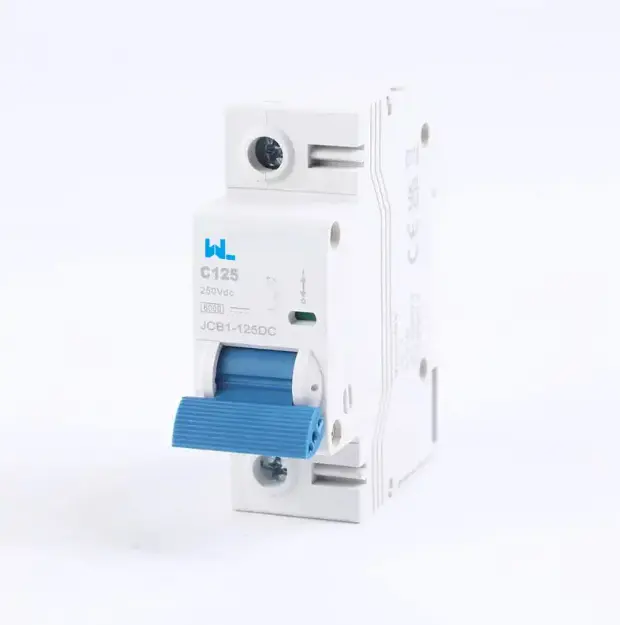

JCB1-125DC 125A DC Miniature Circuit Breaker: Features and Application

The JCB1-125DC 125A DC Miniature Circuit Breaker (MCB) is a robust and reliable electrical protection device specifically designed for handling direct current (DC) applications. This high-performance MCB provides short circuit and overload protection with an impressive breaking capacity of 6kA, making it ideal for various high-power applications. Its compliance with IEC 60947-2 standards ensures that the device meets rigorous safety and performance benchmarks, further cementing its status as a dependable choice in the industry.

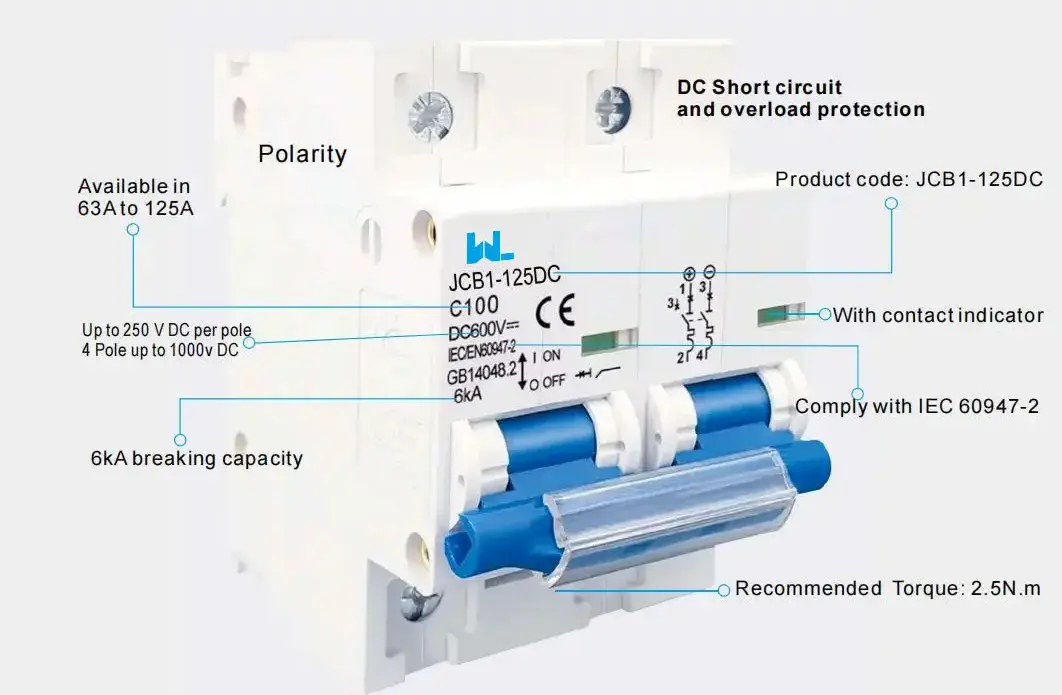

This DC MCB comes packed with features that make it an ideal choice for safeguarding DC circuits. Let's explore its notable features:

• Short Circuit and Overload Protection: The primary function of the JCB1-125DC 125A DC Miniature Circuit Breakeris to provide short circuit and overload protection to prevent damage to electrical systems. Overloads occur when a circuit draws more current than it's designed for, and short circuits happen when there is a direct contact between live wires, resulting in excess current. The MCB responds by interrupting the current flow, thereby protecting connected devices and systems.
• Breaking Capacity of 6kA: With a breaking capacity of 6kA, the JCB1-125DCcan handle a significant surge of current before it trips, making it suitable for demanding applications. A high breaking capacity ensures that the MCB can withstand large fault currents without causing damage to the circuit breaker itself. This high capacity adds to the breaker's longevity and reliability in industrial environments.

• Rated Current Options: 63A, 80A, 100A, and 125A: The JCB1-125DC 125A DC Miniature Circuit Breakeris available in multiple rated currents, including 63A, 80A, 100A, and 125A. This range makes the breaker adaptable to varying current requirements in different applications. Users can choose the model best suited to their electrical systems based on the expected load and protection requirements.
• Rated Voltage Up to 1000V: The MCB is rated for use in circuits up to 1000V DC, which makes it suitable for high-voltage applications. Many traditional MCBs are designed for lower voltages, primarily in AC systems, so having a DC breaker that can handle up to 1000V is a significant advantage for power-intensive DC circuits.
• Compact 27mm Module Width: The compact 27mm module widthof the JCB1-125DC allows it to be easily integrated into electrical panels without taking up excessive space. This design feature is especially beneficial for industrial installations where space-saving is a priority, as multiple circuit breakers can be fitted in a single panel with optimized space utilization.
• Contact Indicator: An essential safety feature of the JCB1-125DC 125A DC Miniature Circuit Breakeris its contact indicator. This indicator shows whether the breaker is in the ON or OFF position, allowing operators to easily monitor the breaker's status. This visibility minimizes errors and provides immediate insight into the breaker's state, enhancing safety during maintenance and inspection.
• Compliance with IEC 60947-2: The IEC 60947-2standard defines the requirements for low-voltage switchgear and controlgear, ensuring safety, reliability, and operational efficiency. Compliance with this international standard certifies that the JCB1-125DC meets strict quality benchmarks, providing users with peace of mind that the breaker is built to high industry standards.

Applications of JCB1-125DC 125A DC Miniature Circuit Breaker (MCB)

The versatility of the JCB1-125DC 125A DC Miniature Circuit Breaker makes it suitable for a wide range of applications. Here are some of the most common scenarios where this MCB proves invaluable:

• Renewable Energy Systems (e.g., Solar Power Systems): Solar power systems, particularly inverters and battery storage systems, often require DC circuit protection. The high voltage rating (up to 1000V) and range of current options make the JCB1-125DCan excellent choice for protecting solar panels and energy storage components from overload and short circuit conditions.
• Telecommunication and Data Centers: Telecommunications and data centers rely heavily on stable DC power supply systems. The JCB1-125DChelps protect the sensitive equipment from potential electrical faults by providing rapid response to overloads and short circuits, ensuring the continuity of critical operations.
• Electric Vehicle (EV) Charging Stations: As the demand for EVs rises, the need for reliable circuit protection in EV charging stations also grows. The JCB1-125DCcan handle the high currents and voltages typical of EV charging circuits, protecting both the charging station and the vehicle's electrical system.
• Battery Backup Systems and Uninterruptible Power Supplies (UPS): Many industrial and commercial facilities use battery backup systems or UPS to maintain power in the event of an outage. The JCB1-125DCprovides the necessary protection for these systems, ensuring they operate safely and are protected from faults.
• Railway Systems and Transport: Railway and transport systems frequently utilize DC power for traction and signaling. The JCB1-125DCcan safeguard these systems, which are subject to high currents, preventing equipment damage and enhancing safety.

Installation and Operation Considerations for JCB1-125DC MCB

When installing the JCB1-125DC 125A DC Miniature Circuit Breaker, there are several important factors to keep in mind:

• Wiring and Connection: Ensure that all wiring and connection points are secure and that the circuit breaker is installed according to the manufacturer's specifications. Loose connections can lead to overheating and potentially damage the breaker and connected equipment.
• Mounting Orientation: Proper orientation and secure mounting are essential to maintain the breaker's functionality and ensure safety. The 27mm module widthallows it to fit easily into standard DC panels without requiring extensive adjustments.
• Regular Testing and Maintenance: Routine testing and maintenance are necessary to ensure that the JCB1-125DCremains operational. Regular inspections of the contact indicator and periodic testing of its response to simulated faults help verify that the breaker will function as expected during an actual fault.
• Environmental Conditions: The JCB1-125DCshould be installed in an environment with a stable temperature and free from excessive moisture or dust. Extreme temperatures and environmental contaminants can affect its performance and may shorten its lifespan.
• Coordination with Other Protective Devices: When used in combination with other protective devices, ensure coordination to avoid nuisance tripping or unintended system shutdowns. Proper selection of breaker rating and breaking capacity aids in achieving a coordinated and effective protection scheme.

The JCB1-125DC 125A DC Miniature Circuit Breaker (MCB) stands out for its robust design, high breaking capacity, and adaptability for various applications. From renewable energy systems to telecommunications and EV charging stations, this DC MCB offers reliable short circuit and overload protection, which is critical in today's high-demand electrical environments. Its compact form factor and compliance with IEC 60947-2 further enhance its appeal, making it an ideal choice for any system requiring dependable DC circuit protection.
