JCB3-63DC Polarity DC MCB: Reliable Protection for DC Systems

Miniature circuit breakers (MCBs) are essential in safeguarding electrical circuits, especially in industries that heavily depend on DC (Direct Current) systems, such as communication systems and photovoltaic (PV) solar applications. The JCB3-63DC Polarity DC Miniature Circuit Breaker (MCB), also known by its variant name JCB3 63DC Polarity DC Miniature Circuit Breaker, represents a reliable and high-performance option for such applications. Manufactured with cutting-edge technology, this china dc molded case circuit breaker is specifically engineered to offer short-circuit and overload protection for circuits operating at up to 1000V DC and currents up to 63A.

This article delves into the features, design advantages, applications, and technical specifications of the JCB3-63DC Polarity DC MCB, highlighting why it's an ideal choice for DC environments, especially in PV systems and communication setups.

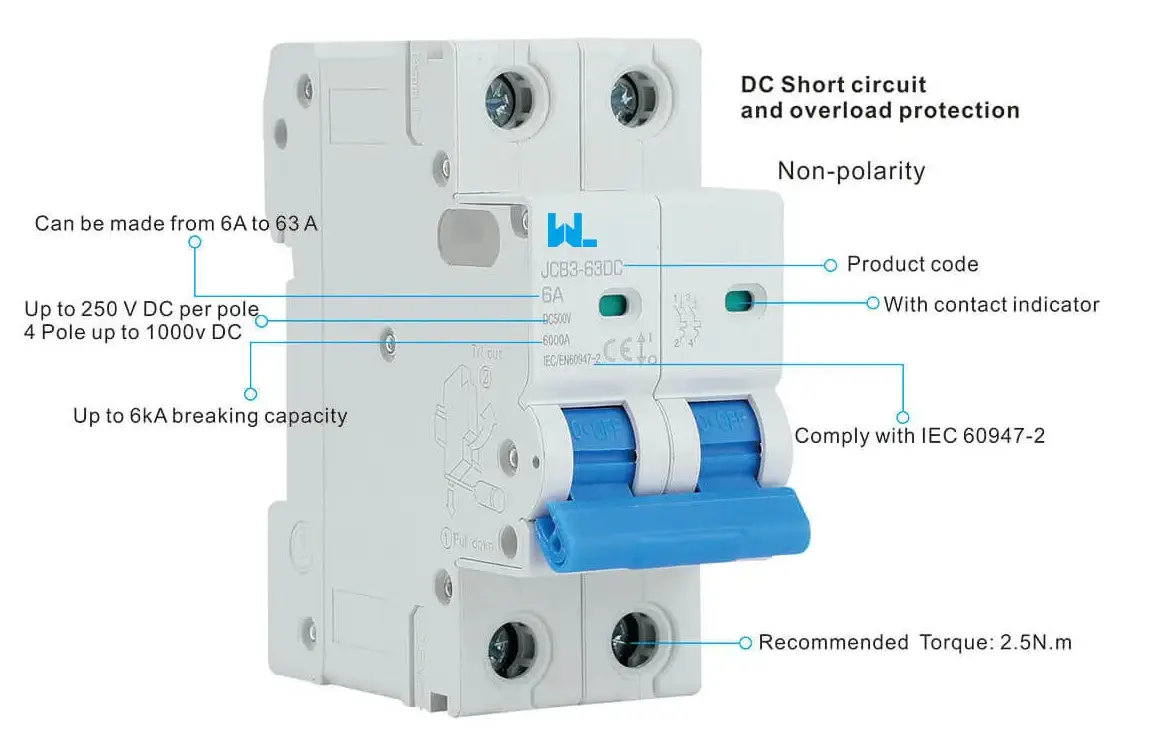

The JCB3-63DC Polarity DC MCB is built with a range of features to enhance safety and reliability. Some of the defining characteristics of this breaker include:

• Short-Circuit and Overload Protection: Designed with robust protective mechanisms, the JCB3-63DC provides reliable safety for electrical circuits, particularly in high-voltage DC environments. This MCB is engineered to disconnect the circuit during overload or short-circuit conditions, thereby preventing potential damage to equipment and hazards to personnel.
• High Breaking Capacity: The breaker boasts an impressive breaking capacity of up to 6kA, which enables it to manage high fault currents, ensuring it can swiftly disconnect power during serious faults. This capacity is essential for safeguarding sensitive equipment in DC environments, such as communication and PV systems.
• Contact Indicator: An innovative contact indicator on the JCB3-63DC MCB allows for quick and clear visualization of the breaker's status, aiding in maintenance and enhancing safety. This feature proves invaluable for professionals managing large systems where frequent status checks are required.
• Versatile Pole Options: Available in 1-pole, 2-pole, 3-pole, and 4-pole configurations, the breaker can be tailored to meet the specific requirements of various applications. This versatility allows for greater flexibility in system design and ensures compatibility with a range of circuits.
• Rated Current and Voltage: With a rated current of up to 63A and a rated voltage of up to 1000V DC, this MCB is well-suited to handle substantial loads in high-demand applications. This high rating ensures consistent performance, even under challenging operational conditions.
• Compliance with IEC 60898-1 Standards: The JCB3-63DC conforms to IEC 60898-1, an international standard governing circuit breakers. This compliance indicates the MCB's safety, quality, and performance, making it a trusted choice for professionals in electrical engineering fields.

Why Use a DC Miniature Circuit Breaker?

In applications involving DC systems, the JCB3-63DC Polarity DC Miniature Circuit Breaker provides unique advantages over traditional AC MCBs:

• Exclusive Design for Safety: The JCB3-63DC is specifically designed with safety in mind, addressing the particular demands of DC power systems. This design minimizes risks such as arcing, which can occur more persistently in DC circuits compared to AC circuits.
• Enhanced Protection for Communication and PV DC Systems: In communication setups and photovoltaic DC systems, the need for stable and reliable power is crucial. The JCB3-63DC MCB's overload and short-circuit protection significantly reduce the likelihood of equipment failure and downtime, thereby ensuring the continuous operation of these systems.

Applications of the JCB3-63DC Polarity DC Miniature Circuit Breaker

The JCB3-63DC Polarity DC MCB is ideally suited for a variety of applications where DC voltage stability is paramount. Below are some of the primary areas where this MCB finds extensive use:

• Photovoltaic (PV) Systems: Solar energy systems generate DC power, making DC MCBs like the JCB3-63DC essential for protecting solar panels and related equipment from short circuits and overloads. Given the high breaking capacity of up to 6kA, this breaker can handle high fault currents that may arise in PV systems, safeguarding both the equipment and users.
• Communication Systems: Communication infrastructures often rely on DC power sources for stable operation. The JCB3-63DC ensures these systems remain protected against electrical faults, maintaining consistent power flow and protecting sensitive electronic equipment.
• Battery Storage Systems: With the growth of renewable energy, battery storage systems have become more prevalent. The JCB3-63DC is a valuable asset in these setups, providing protection for DC circuits and ensuring long-term safety for battery storage and power management.
• Electric Vehicle (EV) Charging Stations: As DC power becomes increasingly important in EV charging infrastructure, the JCB3-63DC's high voltage and current rating allow it to be incorporated into EV chargers, enhancing the safety and efficiency of charging stations.

Design Advantages of the JCB3-63DC Polarity DC Miniature Circuit Breaker

The JCB3-63DC MCB has several design aspects that contribute to its performance in DC systems:

• Arc Suppression: One of the main challenges in DC circuit protection is managing electrical arcing. The JCB3-63DC is designed to minimize arcing, ensuring that the breaker operates safely under both low and high load conditions.
• Polarity Protection: Designed specifically for DC applications, this breaker provides polarity protection, which is essential for avoiding potential faults that can arise from reversed connections.
• Flexible Installation: The breaker's compact size and adaptable pole options make it easy to install across a variety of systems. Its universal design also enables it to fit in multiple settings without compromising its safety and performance standards.

Key Benefits of the JCB3-63DC Polarity DC Miniature Circuit Breaker

• Enhanced System Reliability: The MCB's short-circuit and overload protection contribute significantly to maintaining the reliability of DC systems, preventing costly equipment damage and enhancing operational uptime.
• Cost-Effective Protection: By reducing the risk of equipment damage, the JCB3-63DC can help minimize repair and replacement costs, making it a cost-effective solution for DC circuit protection.
• Safety and Compliance: Compliance with IEC 60898-1 standards is a testament to the breaker's safety and performance, making it a reliable choice for engineers and system designers focused on safety and quality.

The JCB3-63DC Polarity DC Miniature Circuit Breaker is a premium solution for safeguarding DC power systems across various applications, from photovoltaic solar installations to communication networks and battery storage systems. Its high-rated current and voltage, along with its overload and short-circuit protection features, make it an invaluable component for any DC circuit requiring high reliability and safety.

Whether you're looking to protect a PV installation or maintain uninterrupted power flow in communication infrastructure, the JCB3-63DC MCB, crafted with cutting-edge technology, provides a reliable and robust solution. With its compliance to international standards and thoughtful design elements like contact indicators and polarity protection, this breaker truly exemplifies modern electrical safety.
