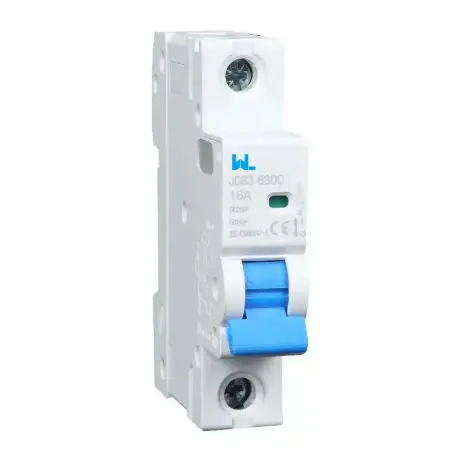

Miniature Circuit Breaker JCB3 63DC1000V DC: Reliable Protection for DC Power Systems

In today's world, DC (Direct Current) power is widely used in solar energy systems, battery storage, electric vehicle (EV) charging, telecommunications, and industrial applications. As more industries and homeowners shift towards renewable energy solutions, the need for reliable circuit protection has never been greater.



The JCB3-63DC1000V DC Miniature Circuit Breaker (MCB) is a high-performance protective device specifically designed for DC power applications. With its high breaking capacity (6kA), non-polarized design, multiple pole configurations, and compliance with IEC safety standards, it ensures optimal safety and efficiency.



This guide will explore the importance of DC circuit protection, key features, applications, benefits, installation guidelines, maintenance tips, and comparisons with other MCBs.

Why DC Circuit Protection Matters



DC power systems are mostly used in solar photovoltaic (PV) installations, backup power solutions, electric vehicles, and industrial automation. However, DC faults are more dangerous than AC faults because DC arcs are harder to extinguish.



If a short circuit or overload occurs, it can lead to:



✔ Equipment damage - Overheating and power surges can shorten the lifespan of expensive components.

✔ Fire hazards - Continuous DC currents can sustain electrical arcs, increasing the risk of fire.

✔ System failures - An unprotected system can experience complete power loss, causing downtime and expensive repairs.



A high-quality DC circuit breaker, like the JCB3-63DC, is essential for ensuring safety, preventing costly damage, and maintaining uninterrupted power flow.



Key Features of JCB3-63DC MCB



The JCB3-63DC DC Miniature Circuit Breaker offers a wide range of features that make it a top choice for professionals working with high-voltage DC power systems.



1. High Breaking Capacity (6kA)



Capable of safely interrupting large fault currents, preventing damage to connected equipment.



Essential for applications like solar PV plants, industrial automation, and energy storage systems, where unexpected voltage surges can occur.



2. Wide Voltage and Current Range



Rated up to 1000V DC, making it ideal for high-voltage systems.



Supports current ratings from 2A to 63A, providing flexibility for different installations.

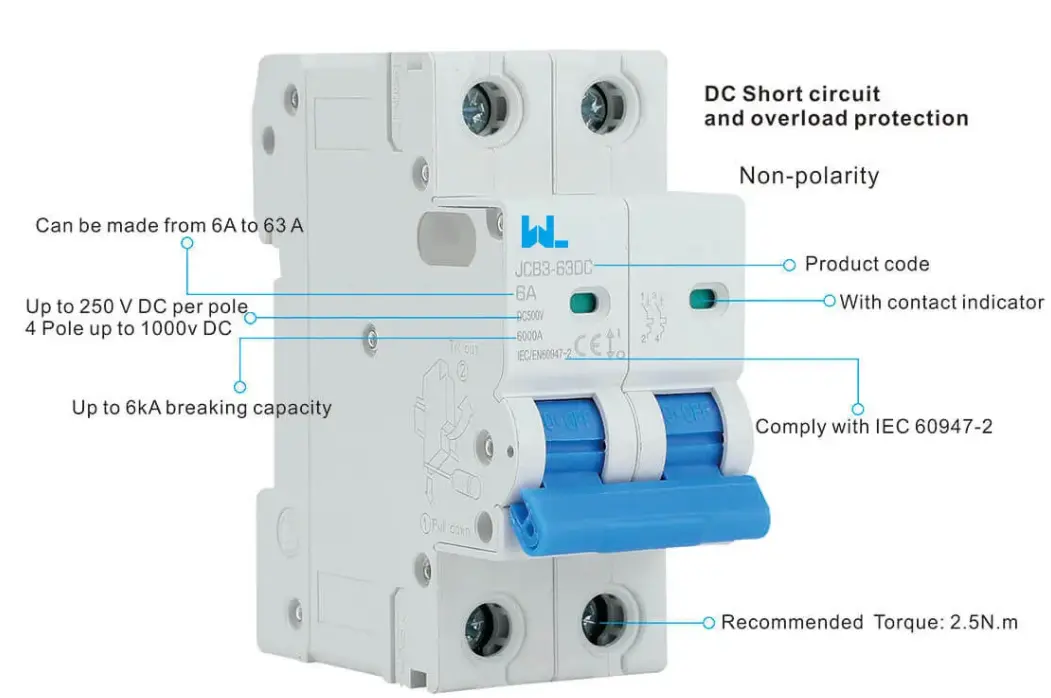

3. Multiple Pole Configurations (1P, 2P, 3P, 4P)



1P (Single Pole) - Suitable for simple low-voltage DC applications.



2P (Double Pole) - Used in solar PV systems where both positive and negative lines need protection.



3P (Triple Pole) & 4P (Quadruple Pole) - Ideal for complex DC networks requiring full system isolation.



4. Non-Polarized Design for Easy Installation



Unlike some DC circuit breakers, JCB3-63DC is non-polarized, meaning that:



Wires can be connected in any direction without affecting performance.



Simplifies installation and maintenance, reducing the risk of wiring errors.



5. Built-in Contact Position Indicator



Red and green indicators provide a clear visual representation of whether the breaker is ON or OFF.



Enhances safety and efficiency for electricians, engineers, and maintenance personnel.



6. Lockable for Extra Safety



Can be locked in the OFF position using a padlock, preventing accidental re-energization during maintenance.



7. Certified for International Safety Standards



Complies with IEC 60898-1 and IEC/EN 60947-2, ensuring global acceptance and reliability.



8. Advanced Arc-Extinguishing Technology



Uses a flash barrier system to quickly suppress dangerous electrical arcs, reducing the risk of fire or component failure.

Applications of JCB3-63DC DC Circuit Breaker



Due to its versatile design and high safety features, the JCB3-63DC is used in a wide range of DC applications:



1. Solar PV Systems



Used between solar panels, inverters, and battery storage units to protect against overcurrents and short circuits.



Ensures safe operation in both residential and commercial solar installations.



2. Battery Energy Storage Systems (BESS)



Provides critical protection for battery banks used in homes, businesses, and industrial power backup solutions.



3. Electric Vehicle (EV) Charging Stations



Prevents short circuits and overloads in DC fast-charging stations, ensuring safe and efficient charging.



4. Telecommunications & Data Centers



Protects communication networks and power supplies from electrical faults.



Essential for maintaining uninterrupted data transmission and mobile connectivity.



5. Industrial Automation & Power Distribution



Used in manufacturing plants and automation systems to ensure continuous power flow and equipment protection.



How to Install the Miniature Circuit Breaker JCB3 63DC



To ensure safe and proper operation, follow these installation steps:



1. 1.Turn off all power sources before starting.
2. 2.Mount the MCB onto a standard DIN rail inside a distribution panel.
3. 3.Connect the DC input and output wires securely to the breaker terminals.
4. 4.Ensure that the breaker is in the OFF position before restoring power.
5. 5.Perform a function test by switching the breaker ON and OFF.



Pro Tip: If you are unfamiliar with electrical installations, always hire a licensed electrician to ensure compliance with safety regulations.



Maintenance Tips for Longevity and Safety



To keep the JCB3-63DC working efficiently, regular inspection and maintenance are recommended:



✔ Check connections - Ensure all terminals are tight and free from corrosion.

✔ Test the breaker - Periodically switch it ON and OFF to verify proper operation.

✔ Inspect for damage - Look for burn marks, loose parts, or overheating signs.

✔ Clean regularly - Remove dust and debris to prevent performance issues.

✔ Replace if necessary - If the breaker trips frequently or shows signs of failure, replace it immediately.



Comparison: JCB3-63DC vs. Other DC Circuit Breakers



The JCB3-63DC outperforms standard DC circuit breakers in terms of voltage handling, arc suppression, and ease of installation, making it the ideal choice for high-voltage DC applications.

The JCB3-63DC miniature circuit breaker outperforms standard DC circuit breakers in several key areas. It offers a higher breaking capacity of 6kA, compared to the 4-5kA typically found in standard models, ensuring superior protection against short circuits and overloads. Additionally, while most standard DC MCBs are rated for 600-800V DC, the JCB3-63DC supports up to 1000V DC, making it more suitable for high-voltage applications. Another advantage is its non-polarized design, which simplifies installation by allowing connections in any direction, unlike many traditional DC breakers that require specific wiring orientation. Furthermore, the Miniature Circuit Breaker JCB3 63DC 1000V DC features a lockable mechanism, allowing it to be secured in the OFF position for added safety, a feature rarely found in standard models. Lastly, it incorporates advanced arc suppression technology, which significantly reduces electrical arc risks, whereas many other circuit breakers offer only limited arc protection.



Conclusion



The Miniature Circuit Breaker JCB3 63DC1000V DC is a must-have solution for solar energy systems, battery storage, EV charging stations, telecommunications, and industrial automation.



Its high breaking capacity, flexible pole configurations, and compliance with IEC safety standards make it one of the most reliable DC protection devices on the market.



Looking for the best DC circuit breaker?



Buy the JCB3-63DC today!
