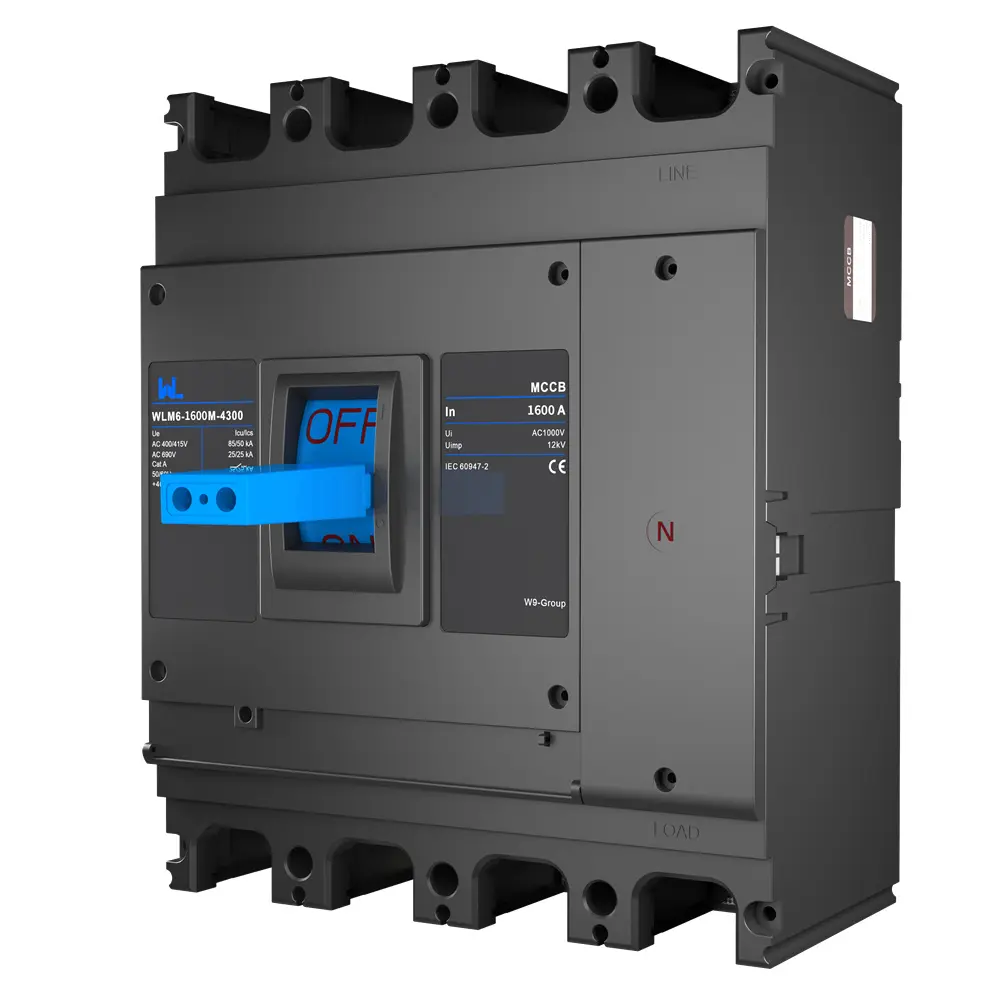

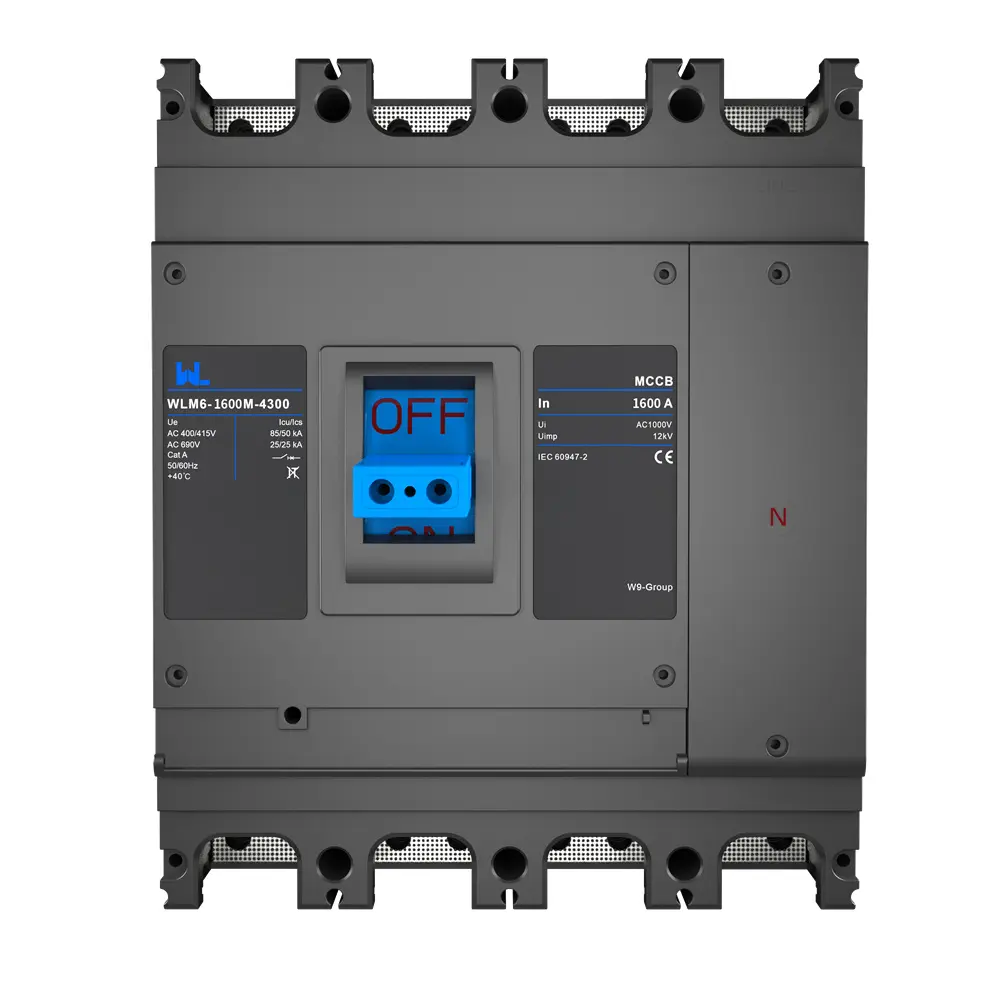

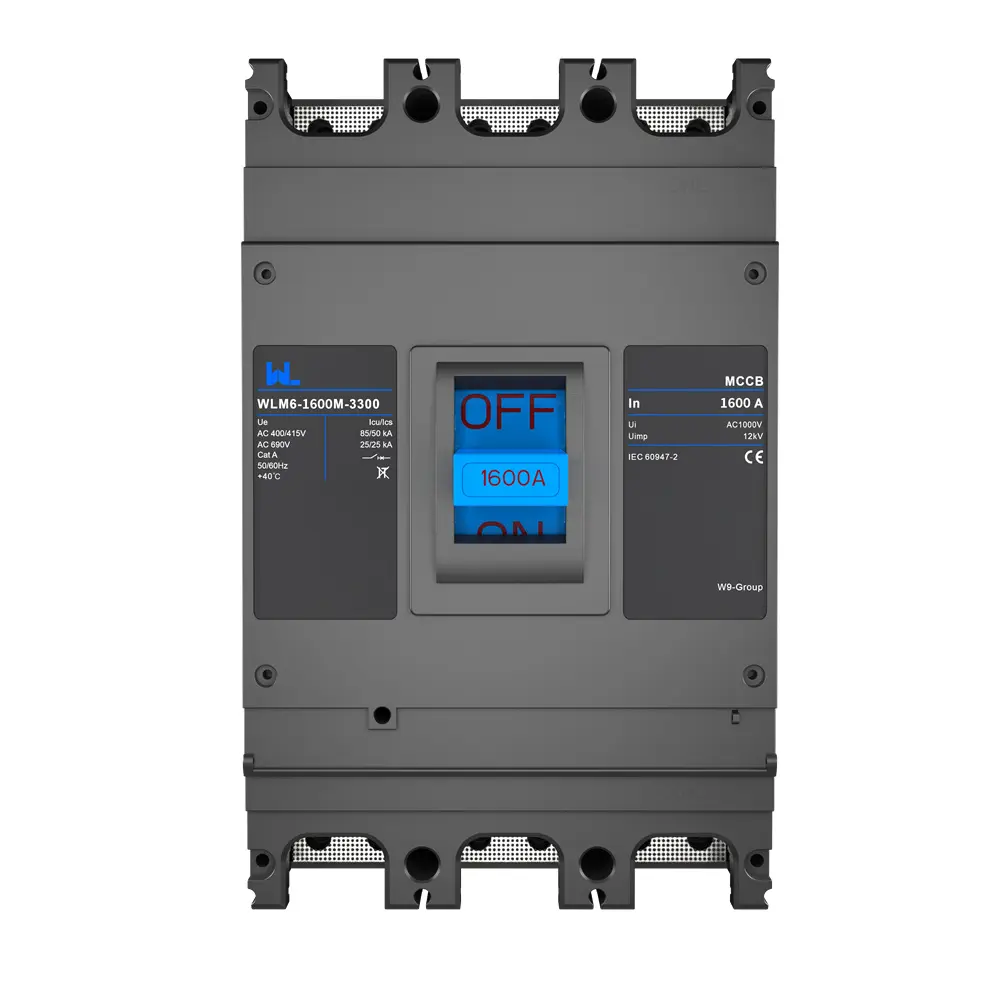

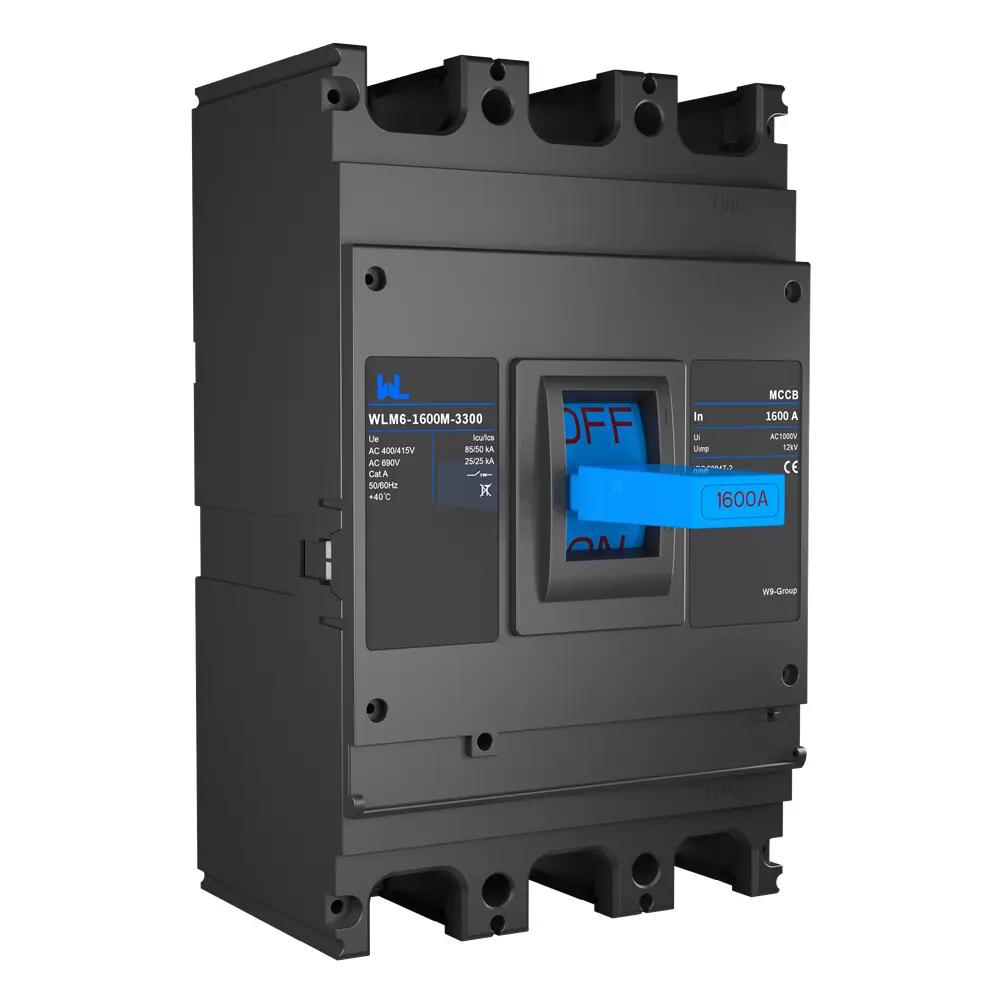

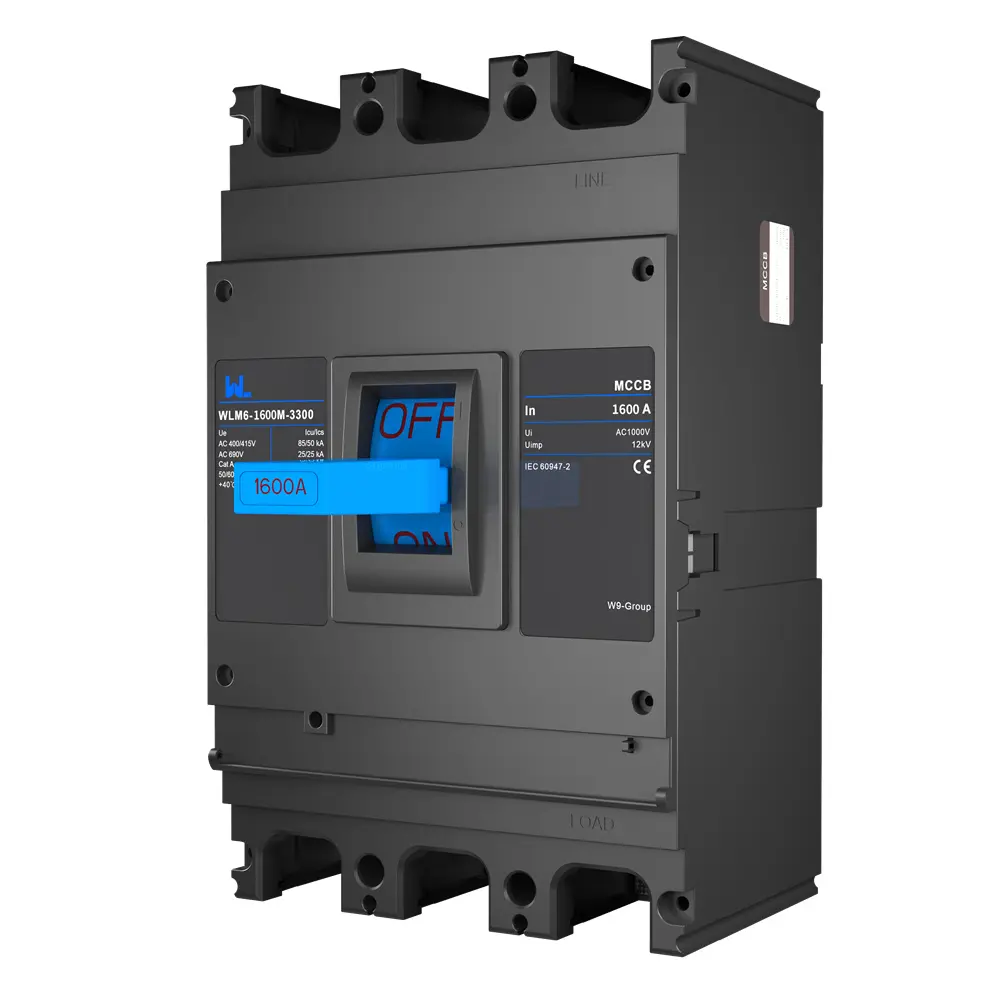

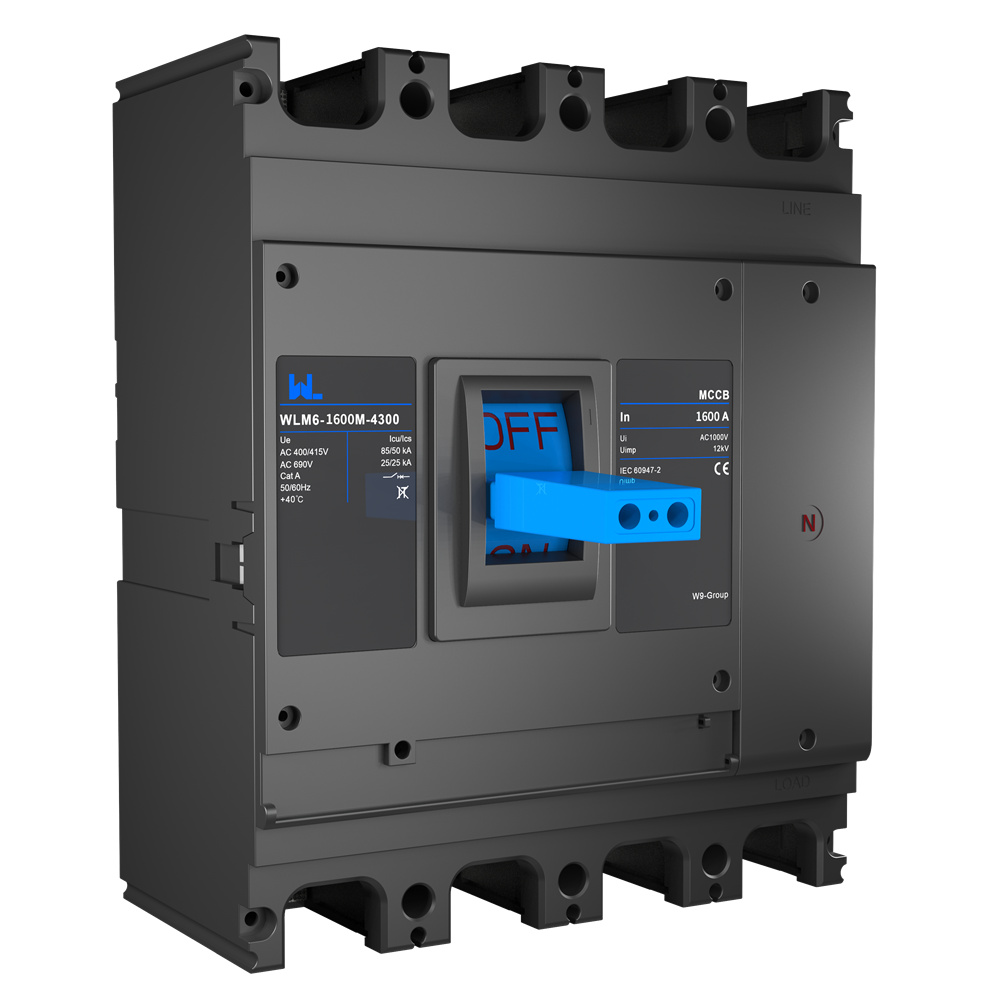

MCCB circuit breaker WLM6-1600A-3300 3P/4P WLM6 Series thermal magnetic type breaker 400V/690V 1600 amp 3/4 Poles

Rated Current : 1600A/2000A

Number Of Poles : 3P / 4P

Rated Working Voltage : 400V/690V

3P 4P

01/03

Product Details

MCCB Highlights

The nylon materials such as the upper cover of ARXM3 are halogen-free VO flame retardant, high and low temperature resistant, aging resistant high-quality plastics, brand: reinforced flame retardant nylon PA66

The products have longer electrical life and strength, better appearance and higher breaking capacity.

Main performance index of WLM6 series circuit breaker

WLM6 Moulded Case Circuit Breaker		2000
Rated operating current In (A),40℃	Magnetic Type	1000-1250-1600-2000
	Thermal-magnetic type	1000-1250-1600-2000
	Adjustable type	1000-1250-1600-2000
Electric characteristics
Rated insulation voltage Ui (V)		1000
Rated impulse withstand voltage (kV)		8
Rated operational voltage Ue(V),AC 50/60Hz		380/400/415,440,500,660/690
Breaking capacity code		S	M	H
Number of poles	1P(Adjutable has no this type)	-	-	-
	2P	-	-	-
	3P	-	■	■
	4P	-	■	■
Number of poles	AC220/230/240V	-	-	-
	AC380/400/415V	-	70	100
	AC440V	-	-	-
	AC500V	-	-	-
	AC660/690V	-	20	20
Number of poles	AC220/230/240V	-	-	-
	AC380/400/415V	-	50	70
	AC440V	-	-	-
	AC500V	-	-	-
	AC660/690V	-	20	20

Standard
Utilization category		A(Thermal-magnetic)/B(Electronic)
Ambient temperature
Safety of insulation		■
Arcing distance		0
Mechanical life (CO recycle)	Maintenance	8000
Electrical life (CO recycle)	AC415V,In	1000
	AC690V,In	800
Release units
Distribution protection	TM	■
Motor protection	TM	■
Mounting and connection
Fixed	Front connection	■
	Rear connection	-
Plug-in	Front connection	-
	Rear connection	-
Draw-out	Front connection	-
	Rear connection	-
DIN rail	Front connection	-
Dimension
Dimension (mm) W×H×D	Width (1P/2P/3P/4P)	210/280
	Height	340
	Depth	141
Weight
Distribution protection	1P	-
	2P	-
	3P	16.46/16.72/18.42
	4P	21.4/22.78/24.1
