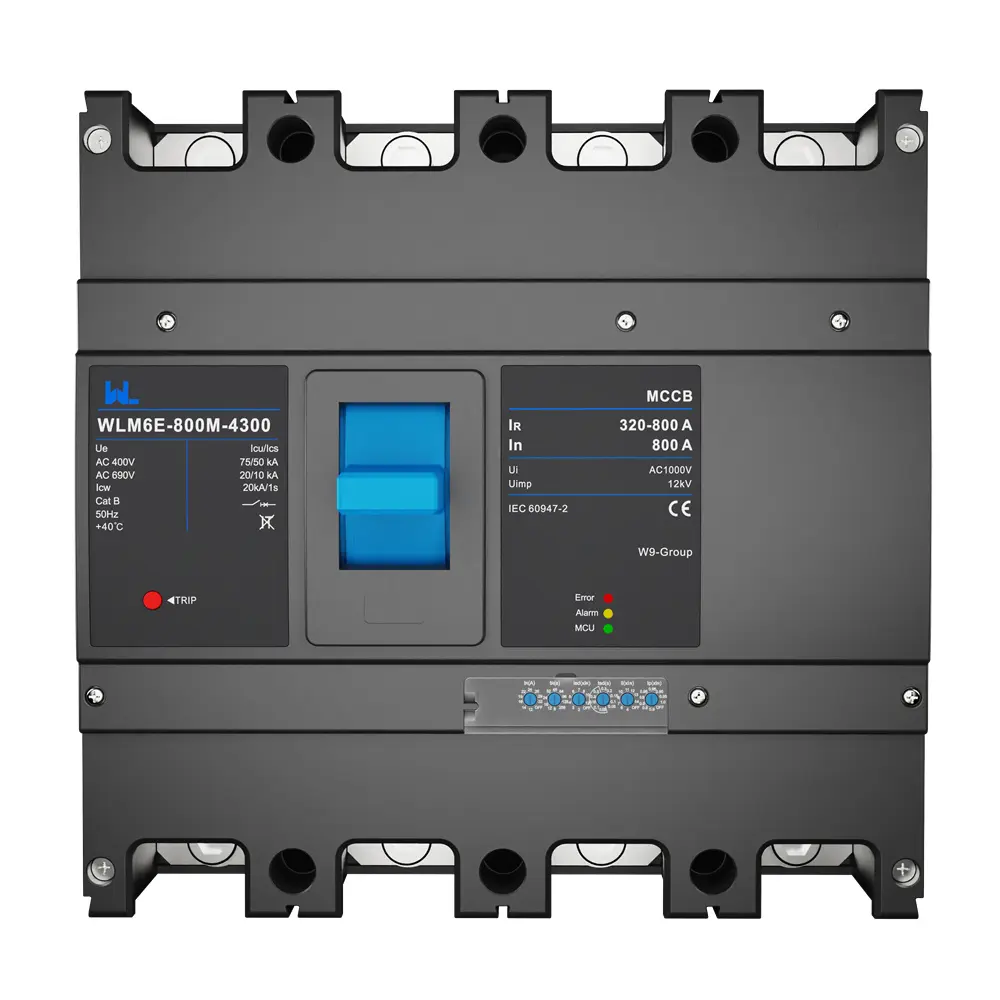

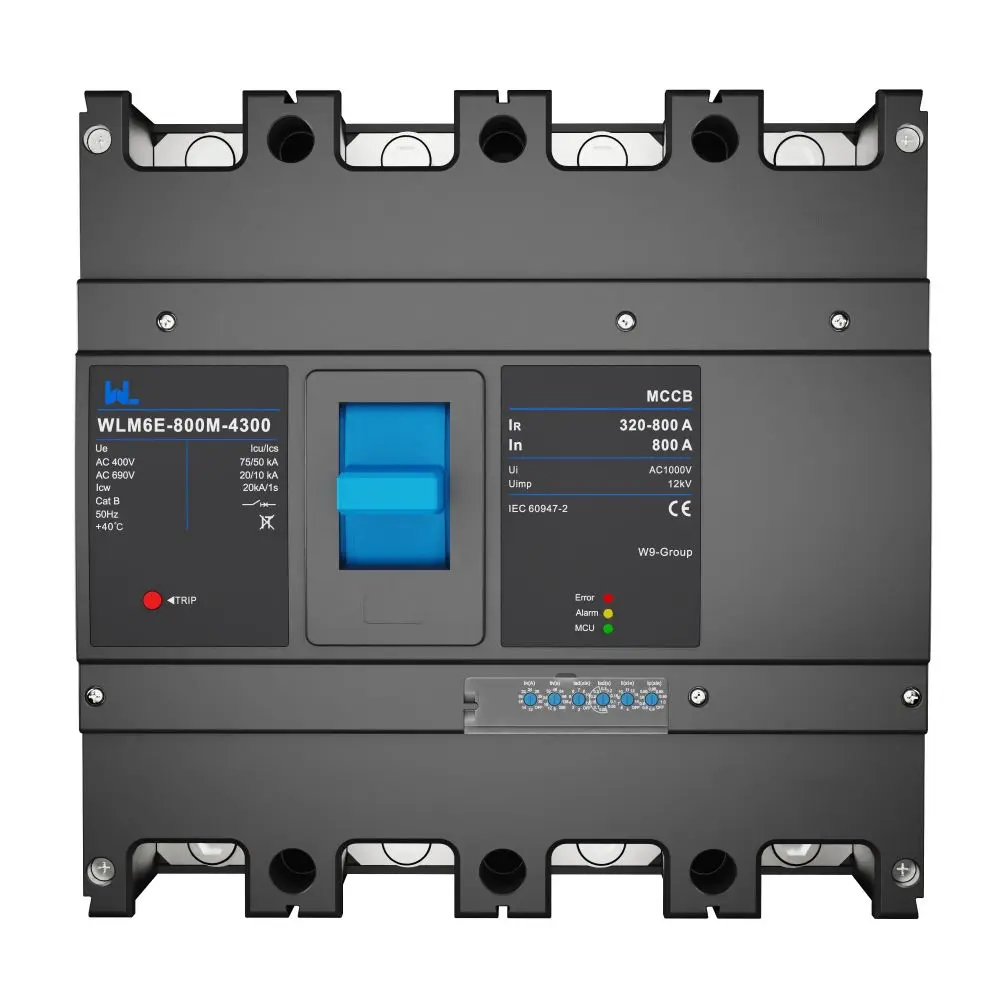

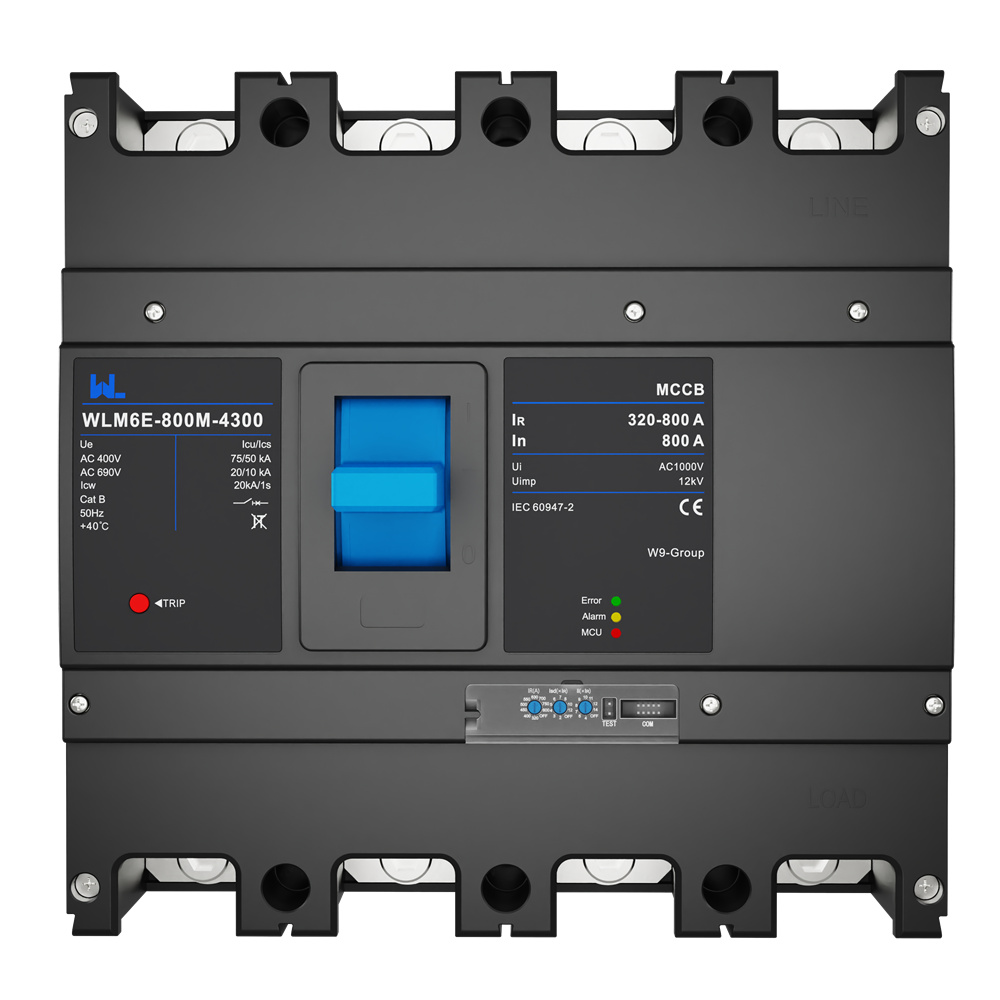

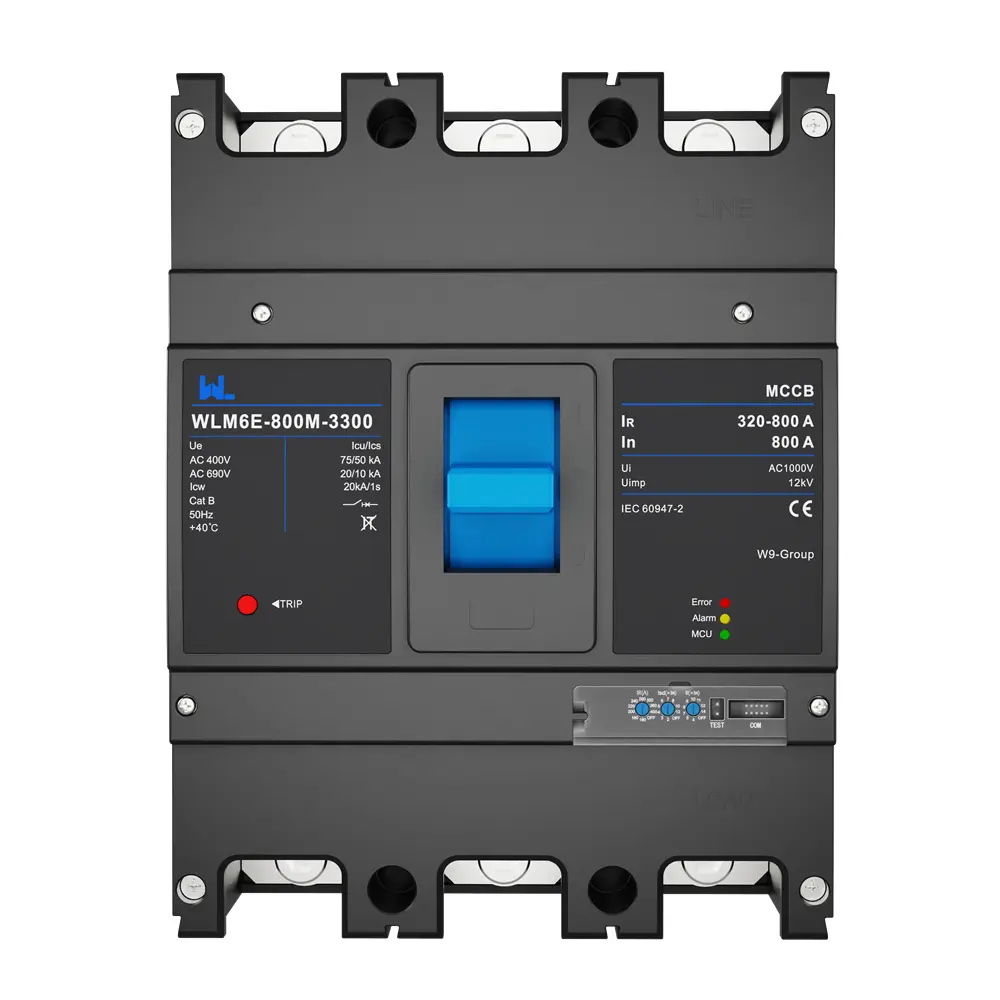

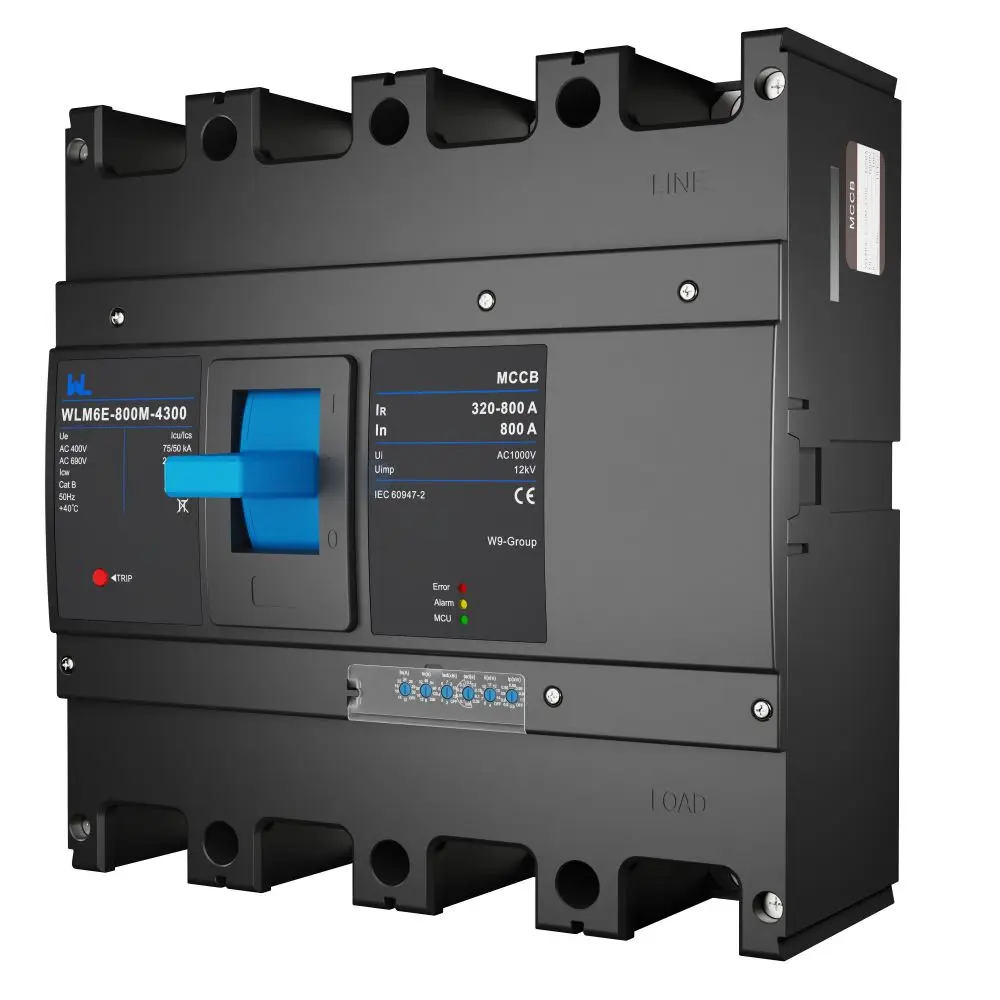

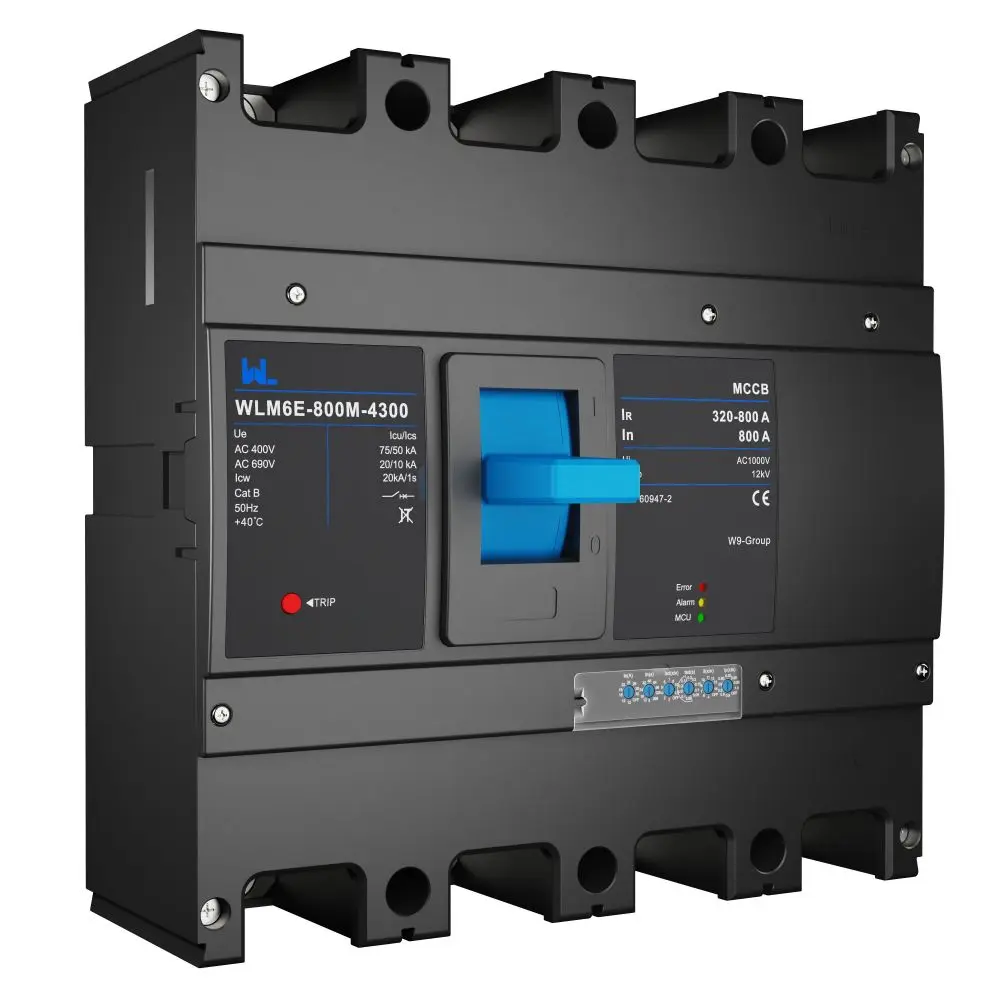

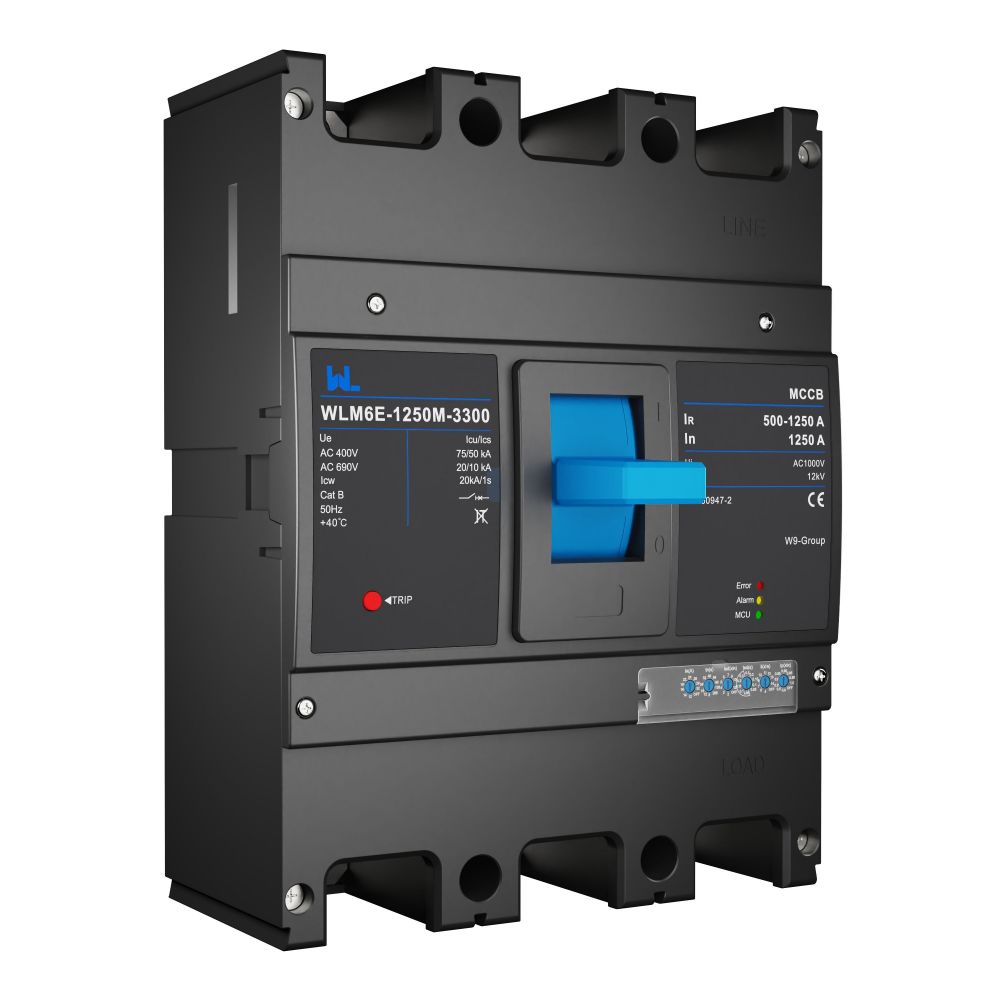

MCCB circuit breaker WLM6E-800A-3300 3P/4P WLM6E Series electronic type circuit breaker 400V/690V 800 amp 3 Poles/4 Poles built in lsig
01/03
x
01/03
x
MCCB Highlights
MCCB Highlights is a leading provider of high-quality circuit protection solutions for industrial, commercial, and residential applications. With a focus on innovation and reliability, MCCB Highlights offers a wide range of molded case circuit breakers that are designed to meet the diverse needs of customers around the world.
One of the key highlights of MCCB products is their advanced technology, which ensures superior performance and safety. The circuit breakers are built to withstand high fault currents and provide reliable protection against overloads and short circuits. Additionally, MCCB Highlights’ products are designed for easy installation and maintenance, making them a preferred choice for electrical professionals and end-users alike.
Furthermore, MCCB Highlights is committed to sustainability and energy efficiency, with many of their products meeting or exceeding industry standards for environmental responsibility. This dedication to eco-friendly practices sets MCCB Highlights apart as a forward-thinking and socially responsible company.
In conclusion, MCCB Highlights is a trusted brand known for its cutting-edge technology, reliability, and commitment to sustainability. Whether it’s for industrial, commercial, or residential applications, customers can rely on MCCB Highlights for top-quality circuit protection solutions.
One of the key highlights of MCCB products is their advanced technology, which ensures superior performance and safety. The circuit breakers are built to withstand high fault currents and provide reliable protection against overloads and short circuits. Additionally, MCCB Highlights’ products are designed for easy installation and maintenance, making them a preferred choice for electrical professionals and end-users alike.
Furthermore, MCCB Highlights is committed to sustainability and energy efficiency, with many of their products meeting or exceeding industry standards for environmental responsibility. This dedication to eco-friendly practices sets MCCB Highlights apart as a forward-thinking and socially responsible company.
In conclusion, MCCB Highlights is a trusted brand known for its cutting-edge technology, reliability, and commitment to sustainability. Whether it’s for industrial, commercial, or residential applications, customers can rely on MCCB Highlights for top-quality circuit protection solutions.
Main performance index of WLM6E series circuit breaker
|
WLM6E Moulded Case Circuit Breaker |
800 | ||||||||||||
Rated operating current In (A),40℃ |
6 adjutable knobs | 500-550-600-630-660-700-740-780-800 | |||||||||||
| 3 adjutable knobs | 12-16-20-25-32-40-50-63-80-100-125-160 | ||||||||||||
| Electric characteristics | |||||||||||||
| Rated insulation voltage Ui (V) | 1000 | ||||||||||||
| Rated impulse withstand voltage (kV) | 8 | ||||||||||||
| Rated operational voltage Ue(V),AC 50/60Hz | 380/400/415,440,500,660/690 | ||||||||||||
| Breaking capacity code | C | S | M | H | |||||||||
| Number of poles | 1P | - | - | - | - | ||||||||
| 2P | - | - | - | - | |||||||||
| 3P | - | - | ■ | ■ | |||||||||
| 4P | - | - | ■ | ■ | |||||||||
| Number of poles | AC220/230/240V | - | - | - | - | ||||||||
| AC380/400/415V | - | - | 70 | 100 | |||||||||
| AC440V | - | - | - | - | |||||||||
| AC500V | - | - | - | - | |||||||||
| AC660/690V | - | - | 20 | 20 | |||||||||
| Number of poles | AC220/230/240V | - | - | - | - | ||||||||
| AC380/400/415V | - | - | 50 | 70 | |||||||||
| AC440V | - | - | - | - | |||||||||
| AC500V | - | - | - | - | |||||||||
| AC660/690V | - | - | 10 | 10 | |||||||||
| Standard | IEC/EN 60947-2 | ||||||||||||
| Utilization category | B | ||||||||||||
| Ambient temperature | -40℃ ~+70 ℃ | ||||||||||||
| Safety of insulation | ■ | ||||||||||||
| Arcing distance | 0 | ||||||||||||
|
Mechanical life
(CO recycle)
|
Maintenance | 2500 | |||||||||||
|
Electrical life
(CO recycle)
|
AC415V,In | 500 | |||||||||||
| AC690V,In | 400 | ||||||||||||
| Release units | |||||||||||||
Distribution protection |
E | ■ | |||||||||||
Motor protection |
E | ■ | |||||||||||
| Mounting and connection | |||||||||||||
Fixed |
Front connection | ■ | |||||||||||
| Rear connection | ■ | ||||||||||||
Plug-in |
Front connection | ■ | |||||||||||
| Rear connection | ■ | ||||||||||||
| Draw-out | Front connection | ■ | |||||||||||
| Rear connection | ■ | ||||||||||||
DIN rail |
Front connection | ■ | |||||||||||
| Dimension | |||||||||||||
Dimension (mm)
W×H×D
|
Width (3P/4P) | 210/280 | |||||||||||
| Height | 275.5 | ||||||||||||
| Depth | 103 | ||||||||||||
| Weight | |||||||||||||
Distribution protection |
1P | - | |||||||||||
| 2P | - | ||||||||||||
| 3P | 9.253 | ||||||||||||
| 4P | 11.07 | ||||||||||||
