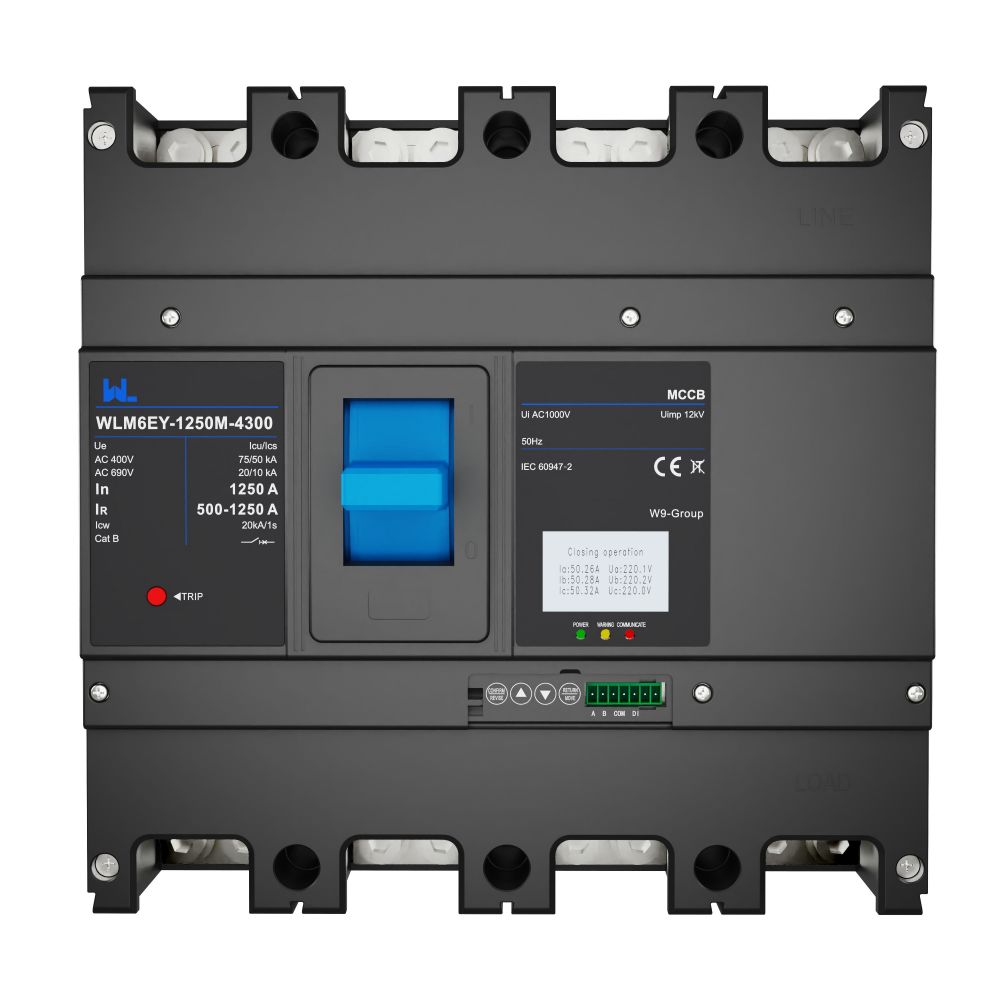

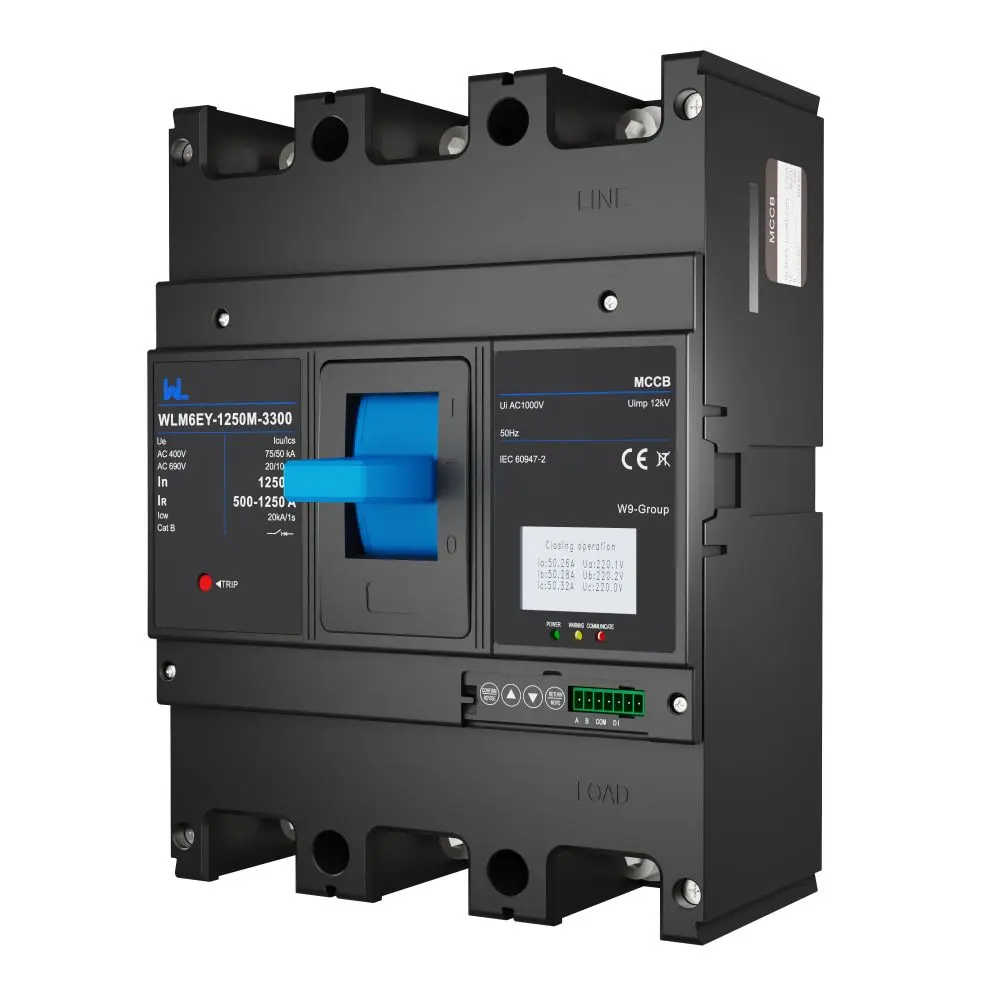

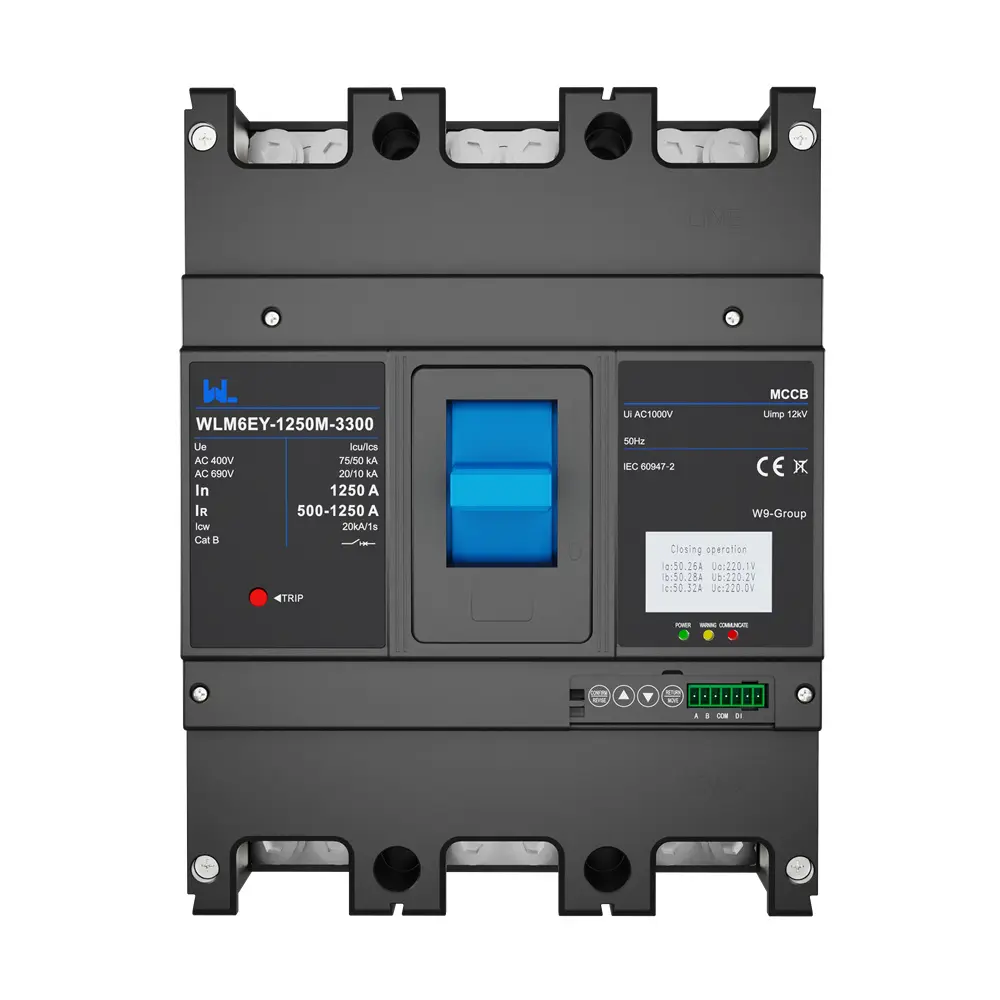

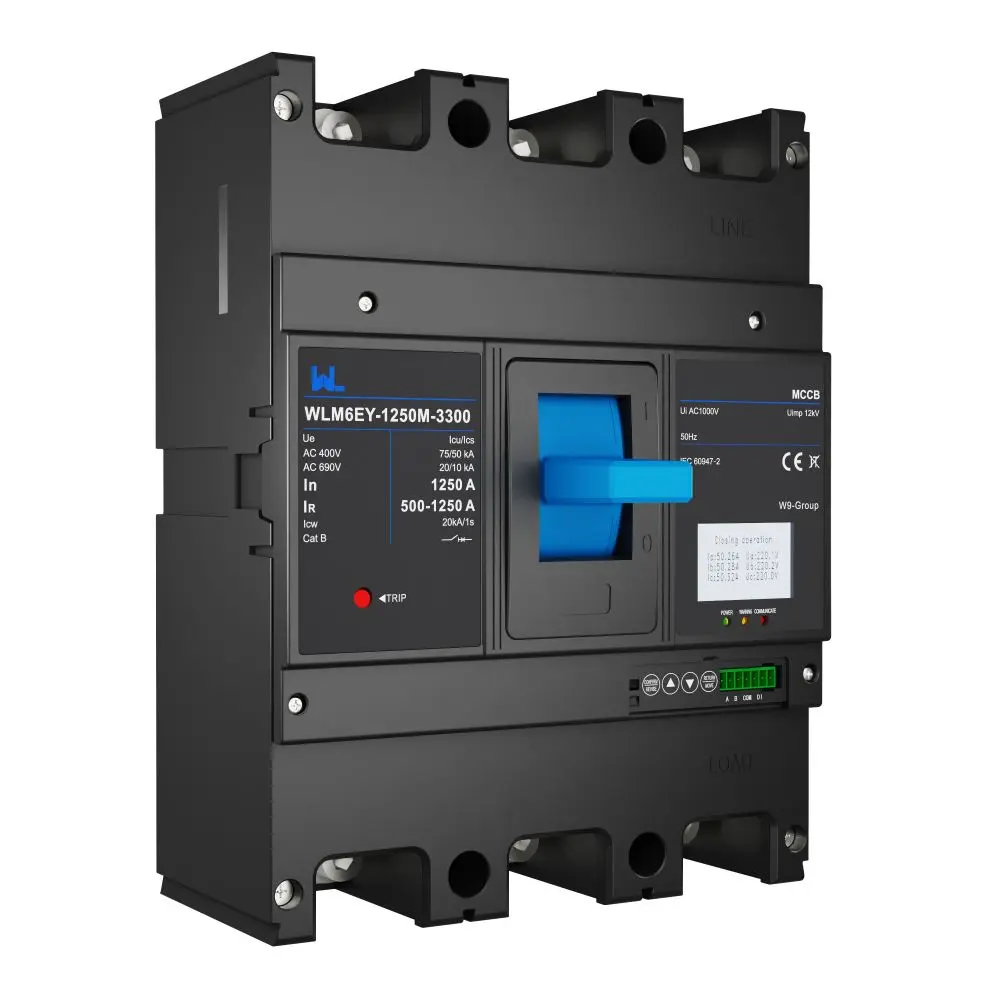

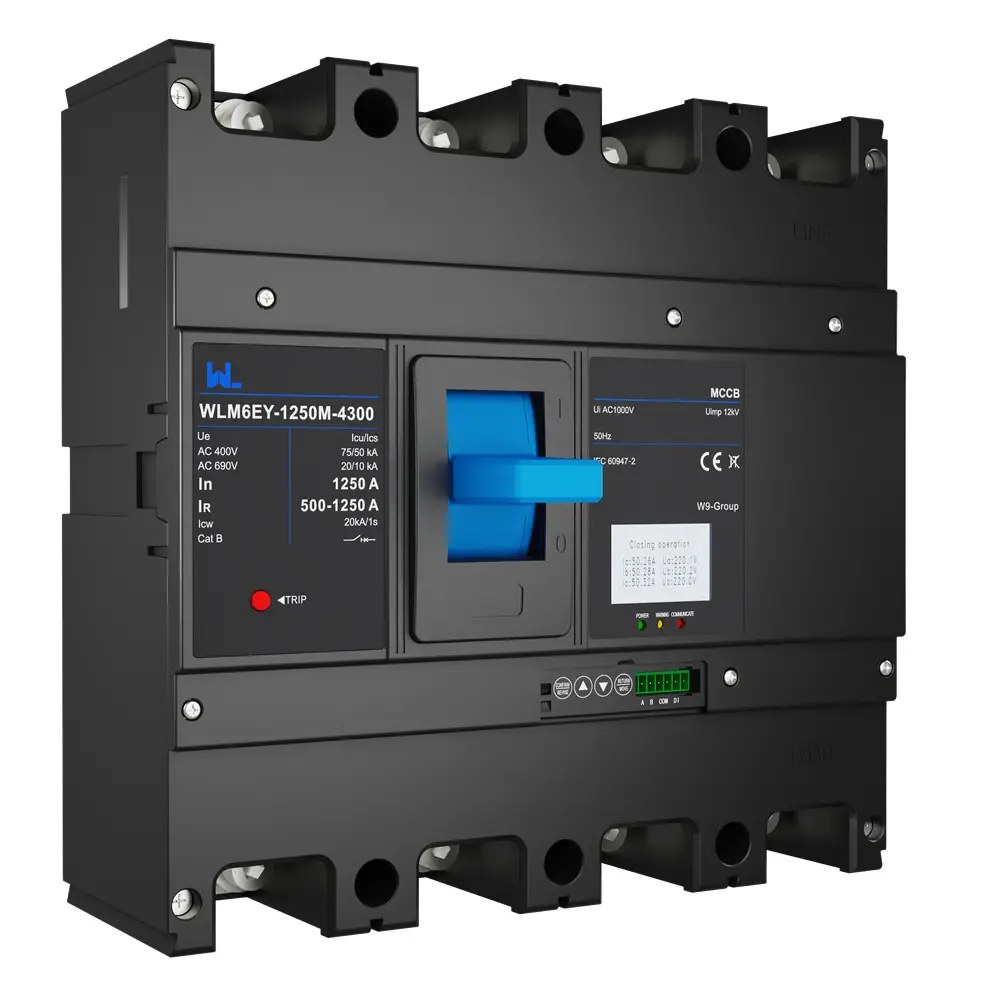

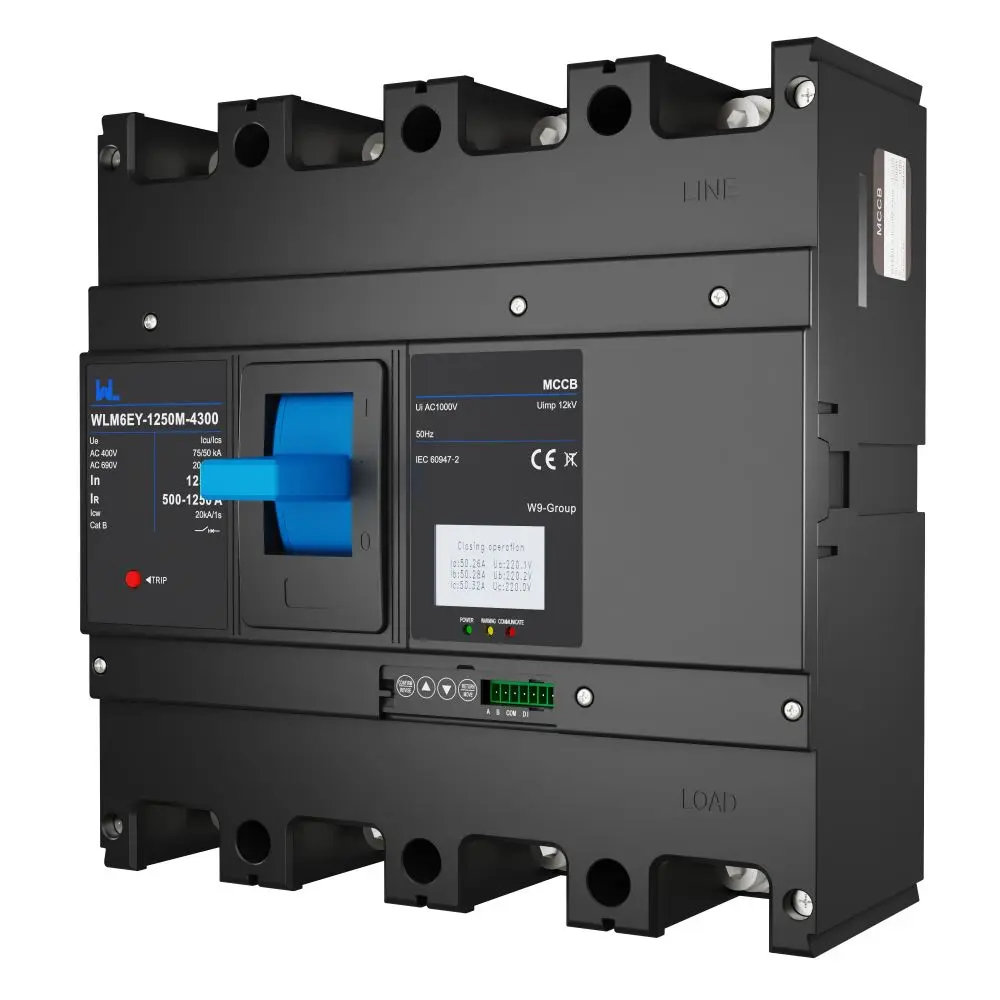

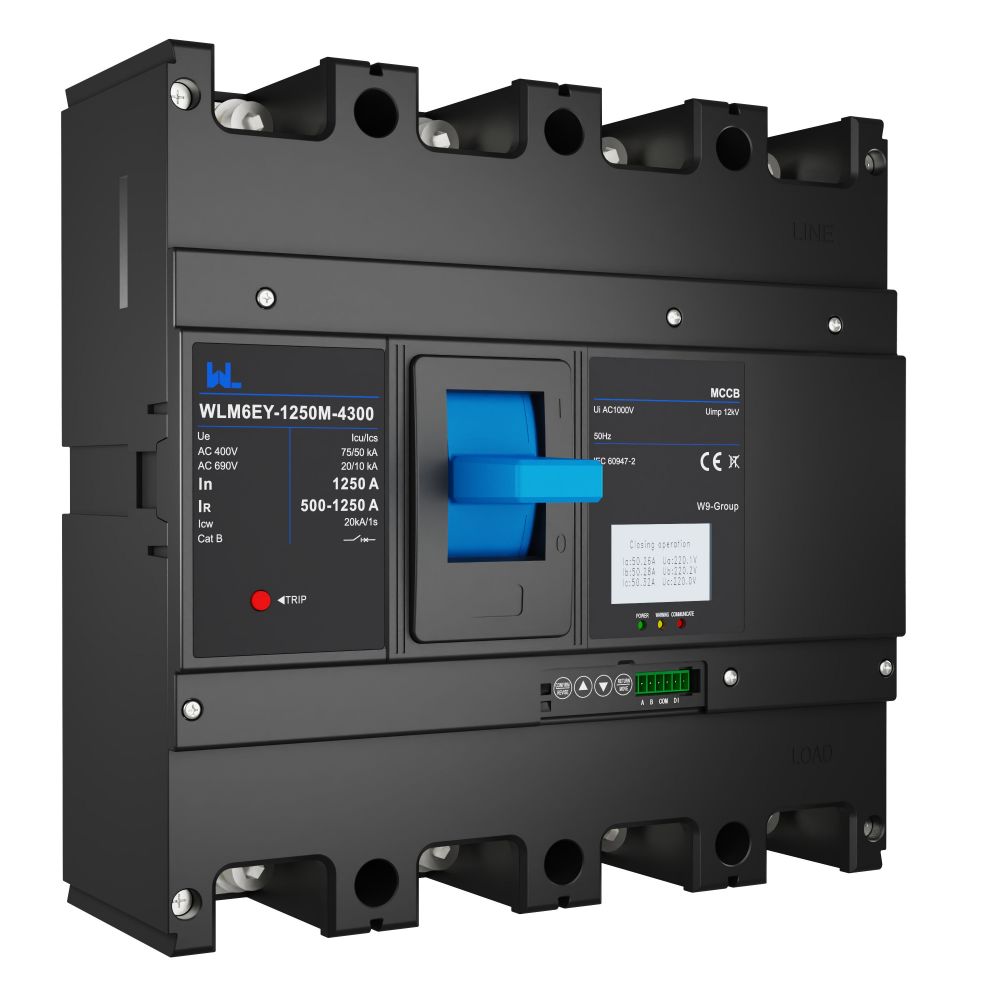

WLM6EY-1250A-3300 3P/4P liquid crystal type MCCB 1250A electronic circuit breaker 400V/690V 3 Poles /4 Poles with Modbus RS485

WLM6EY

WLM6EY-1250A-3300 3P/4P liquid crystal type MCCB 1250A electronic circuit breaker 400V/690V 3 Poles /4 Poles with Modbus RS485
WLM6EY-1250A-3300 3P/4P liquid crystal type MCCB 1250A electronic circuit breaker 400V/690V 3 Poles /4 Poles with Modbus RS485
WLM6EY-1250A-3300 3P/4P liquid crystal type MCCB 1250A electronic circuit breaker 400V/690V 3 Poles /4 Poles with Modbus RS485
WLM6EY-1250A-3300 3P/4P liquid crystal type MCCB 1250A electronic circuit breaker 400V/690V 3 Poles /4 Poles with Modbus RS485
WLM6EY-1250A-3300 3P/4P liquid crystal type MCCB 1250A electronic circuit breaker 400V/690V 3 Poles /4 Poles with Modbus RS485
WLM6EY-1250A-3300 3P/4P liquid crystal type MCCB 1250A electronic circuit breaker 400V/690V 3 Poles /4 Poles with Modbus RS485

WLM6EY-1250A-3300 3P/4P liquid crystal type MCCB 1250A electronic circuit breaker 400V/690V 3 Poles /4 Poles with Modbus RS485

Rated Current : 1250A

Number Of Poles : 3P/4P

Rated Working Voltage : 400V/690V

    3P4P
    Contact us
    01/03

    x

    01/03

    x

    Product Details

    MCCB Highlights

    The WLM6EY MCCB is also designed to meet the highest standards of safety and reliability. With its robust construction and advanced thermal and magnetic protection features, the MCCB offers dependable performance in demanding operating conditions. Furthermore, the integration of advanced diagnostic capabilities, such as ground fault protection and waveform capture, enables early detection of potential issues, allowing for proactive maintenance and troubleshooting. The WLM6EY MCCB with LCD and Modbus communication is a testament to the ongoing innovation in the field of circuit protection and electrical distribution.
    By combining advanced monitoring, communication, and protection capabilities, this MCCB offers a comprehensive solution for modern electrical installations, addressing the evolving needs of industry professionals and facility managers. In conclusion, the WLM6EY electronic type MCCB with LCD and Modbus communication represents a significant leap forward in the realm of circuit protection and electrical distribution.
    With its advanced features, robust construction, and seamless connectivity, this MCCB is poised to redefine the way electrical systems are monitored, managed, and protected. As the demand for intelligent and reliable circuit protection solutions continues to grow, the WLM6EY MCCB stands out as a prime example of innovation and excellence in the industry.

    Main performance index of WLM6EY series circuit breaker

    WLM6EY Moulded Case Circuit Breaker
    		 1250
    Rated operating current In (A),40℃
    		 6 adjutable knobs 850-900-950-1000-1050-1100-1150-1200-1250
    3 adjutable knobs 850-900-950-1000-1050-1100-1150-1200-1250
    Electric characteristics
    Rated insulation voltage Ui (V) 1000
    Rated impulse withstand voltage (kV) 8
    Rated operational voltage Ue(V),AC 50/60Hz 380/400/415,440,500,660/690
    Breaking capacity code C S M H
    Number of poles 1P - - - -
    2P - - - -
    3P - - ■ ■
    4P - - ■ ■
    Number of poles AC220/230/240V - - - -
    AC380/400/415V - 25 70 100
    AC440V - - - -
    AC500V - - - -
    AC660/690V - - 20 20
    Number of poles AC220/230/240V - - - -
    AC380/400/415V - 18 50 70
    AC440V - - - -
    AC500V - - - -
    AC660/690V - - 10 10
    Standard
    Utilization category B
    Ambient temperature
    Safety of insulation ■
    Arcing distance 0
    Mechanical life
    (CO recycle)
    		 Maintenance 2500
    Electrical life
    (CO recycle)
    		 AC415V,In 500
    AC690V,In 400
    Release units
    Distribution protection
    		 E ■
    Motor protection
    		 E ■
    Mounting and connection
    Fixed
    		 Front connection ■
    Rear connection ■
    Plug-in
    		 Front connection ■
    Rear connection ■
    Draw-out
    		 Front connection ■
    Rear connection ■
    DIN rail
    		 Front connection ■
    Dimension
    Dimension (mm)
    W×H×D
    		 Width (3P/4P) 210/280
    Height 275.5
    Depth 103
    Weight
    Distribution protection
    		 1P -
    2P -
    3P 9.896
    4P 13.187
