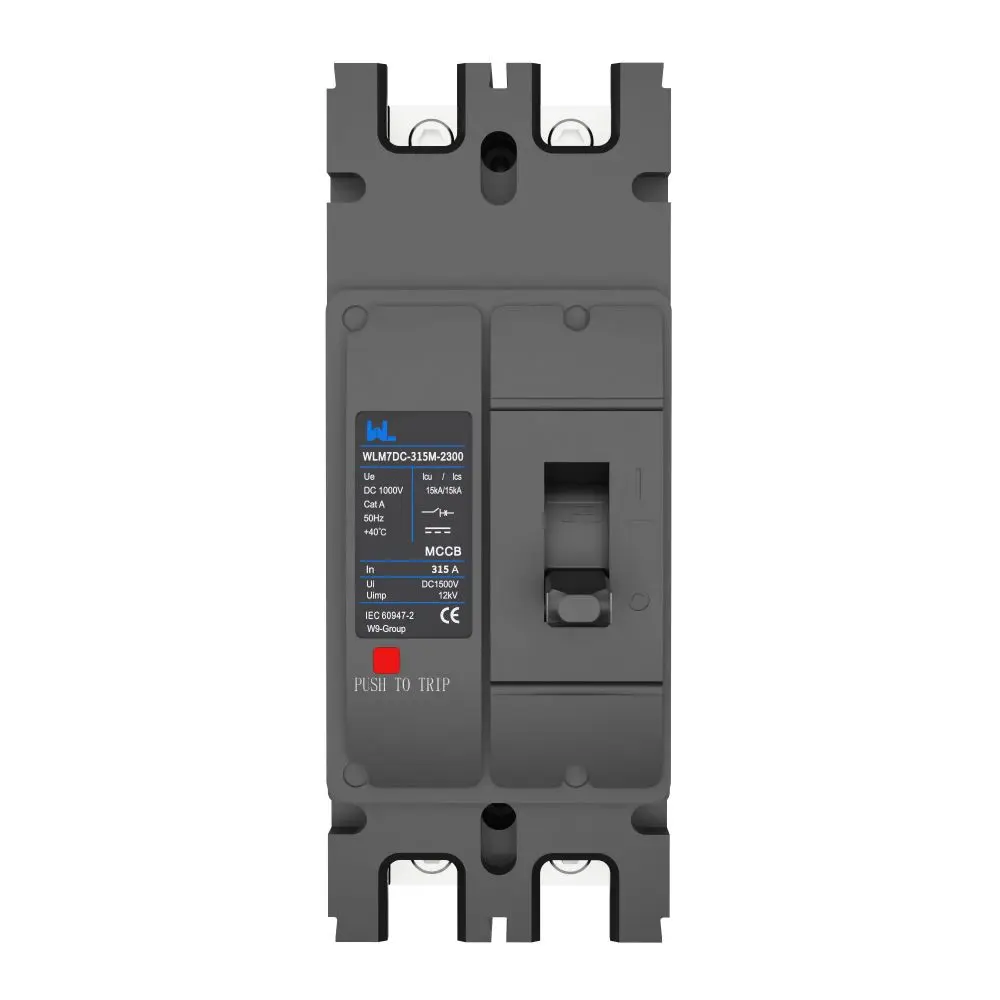

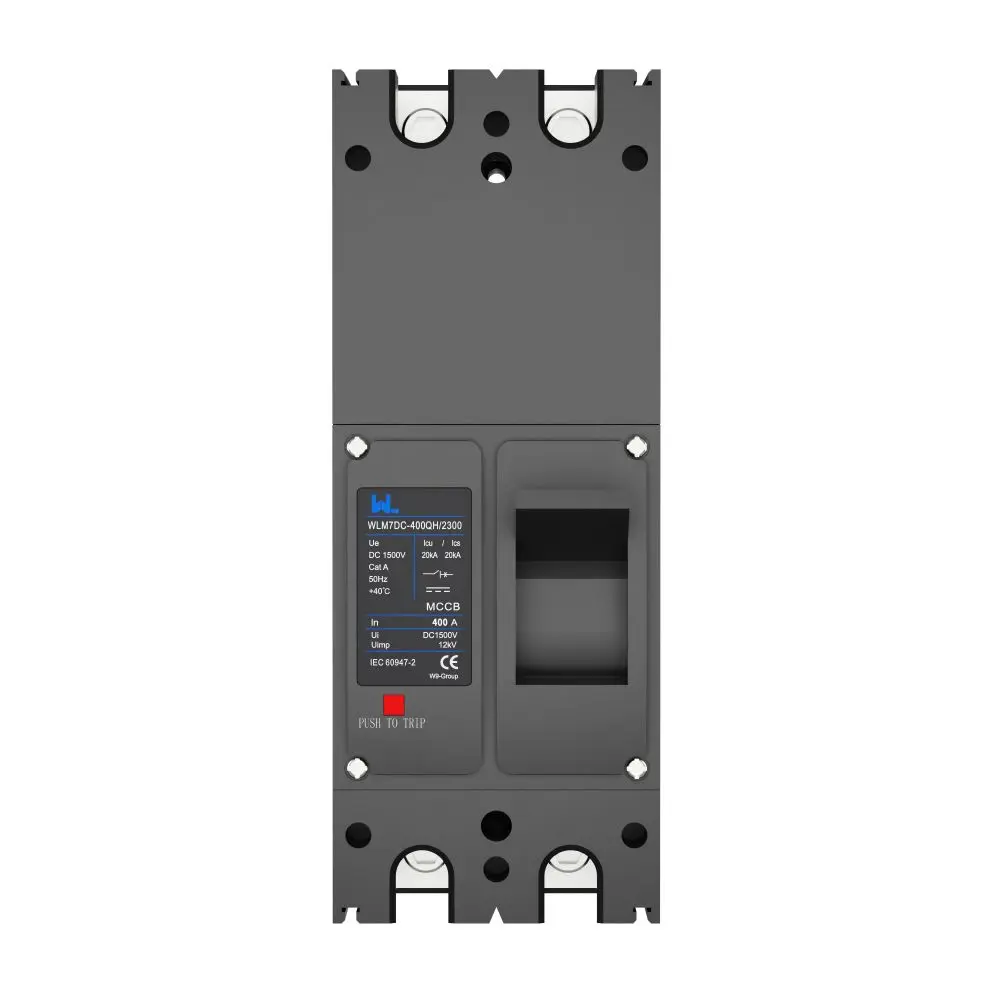

WLM7DC-400A-2300 2P/3P WLM7DC Series Photovoltaic solar type Molded Case Circuit Breakers
WLM7DC-400A-2300 2P/3P WLM7DC Series Photovoltaic solar type Molded Case Circuit Breakers
WLM7DC-400A-2300 2P/3P WLM7DC Series Photovoltaic solar type Molded Case Circuit Breakers

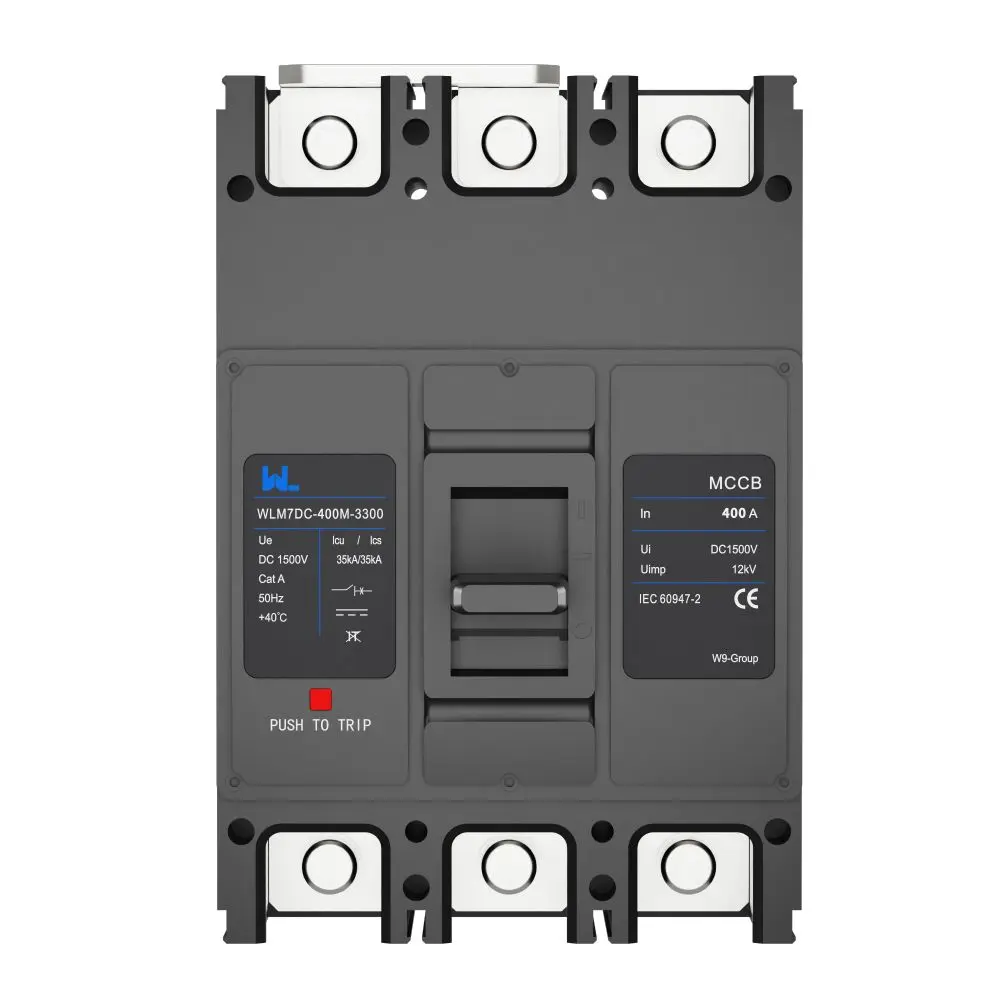

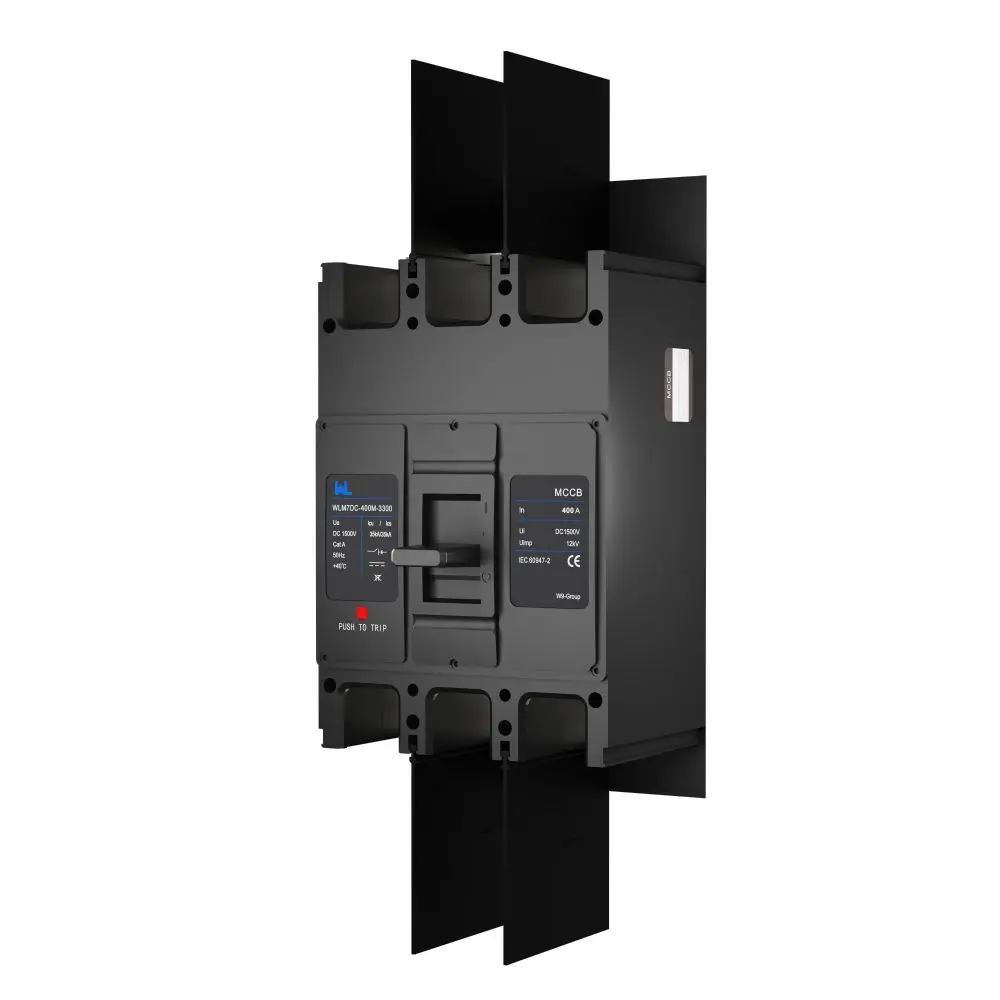

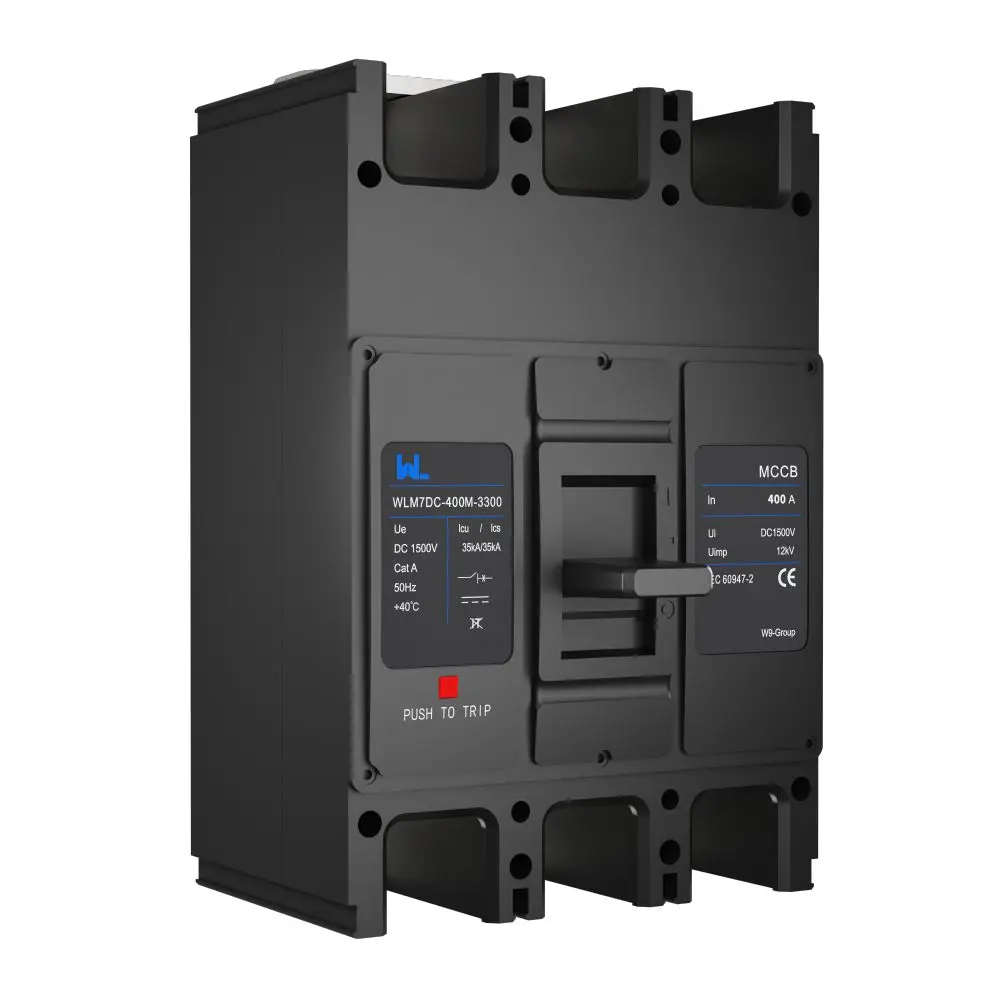

WLM7DC-400A-2300 2P/3P WLM7DC Series Photovoltaic solar type Molded Case Circuit Breakers 250vdc/500vdc/750VDC/1000VDC/1500VDC 400A Photovoltaic DC circuit breaker

Rated Current : 400A

Number Of Poles : 2P/3P

Rated Working Voltage : 800V

    Contact us
    Product Details

    MCCB Highlights

    WLM7DC series Moulded Case Circuit Breaker is designed to distribute power and protect the circuit and power equipment against overload in solar system.
    Is a new type of product, developed and manufactured by Adopting international advanced technology

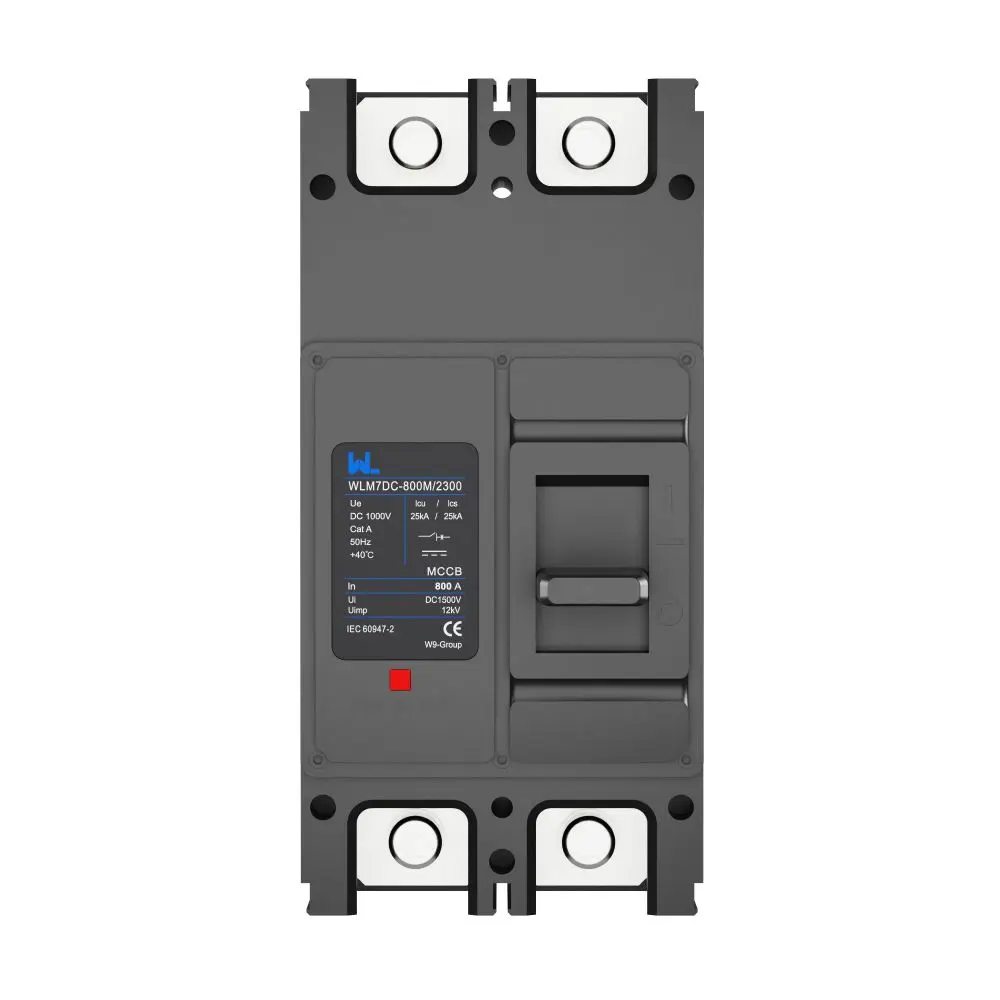

    It is supplied with rated insulation voltage 1000V and used for circuit of  50Hz /60Hz, rated operation voltage DC 1000V or below rated operation current up to 800A for infrequent changing over and starting of the motors. Equipped with the protection devices for over-current, short circuit and under voltage, the product is capable of preventing damage of circuits and supply units. The product conforms to IEC60947-2 standard.


    Main performance index of WLM7DC  series circuit breaker

    WLM7DC Moulded Case Circuit Breaker
    		 400
    Rated operating current In (A),40℃
    		 250-315-350-400
    Rated insulation voltage Ui (V) 1500
    Rated impulse withstand voltage (kV) 12
    Rated operational voltage Ue(V),AC 50/60Hz
    110/250/500/750/1000/1200/1500
    Breaking capacity code - M H
    Number of poles 2P
    		 - ■ ■
    3P - ■ ■
    DC250V - 25 50
    DC500V - 25 50
    Rated ultimate
    short-circuit breaking
    capacity Icu(kA)
    		 DC750V - 15 25
    DC1000V - 15(3P30) 25(3P40)
    DC1250V - - -
    DC1500V - 10(3P25) 10(3P30)
    Rated service breaking
    capacity Ics(kA)
    		 DC250V - 25 50
    DC500V - 25 50
    DC750V - 15 25
    DC1000V - 15(3P30) 25(3P40)
    DC1250V - - -
    DC1500V - 10(3P20) 10(3P30)
    Standard IEC/EN 60947-2
    Utilization category A
    Ambient temperature -40℃ ~+70 ℃
    Safety of insulation ■
    Arcing distance 0
    Mechanical life
    (CO recycle)
    		 Maintenance free 20000
    Electrical life
    (CO recycle)
    		 Maintenance free 2000(DC1500V is :1000times)
    Release units
    Distribution protection
    		 TM ■
    Mounting and connection
    Fixed
    		 Front connection ■
    Rear connection ■
    Plug-in
    		 Front connection ■
    Rear connection ■
    Draw-out
    		 Front connection -
    Rear connection -
    DIN rail
    		 Front connection -
    Dimension
    Dimension (mm)
    W×H×D
    		 Width 130/182
    Height 270
    Depth 125.8
    Weight
    Weight(kg)/Fixed
    		 2P 2.5
    3P 3.2
    4P -

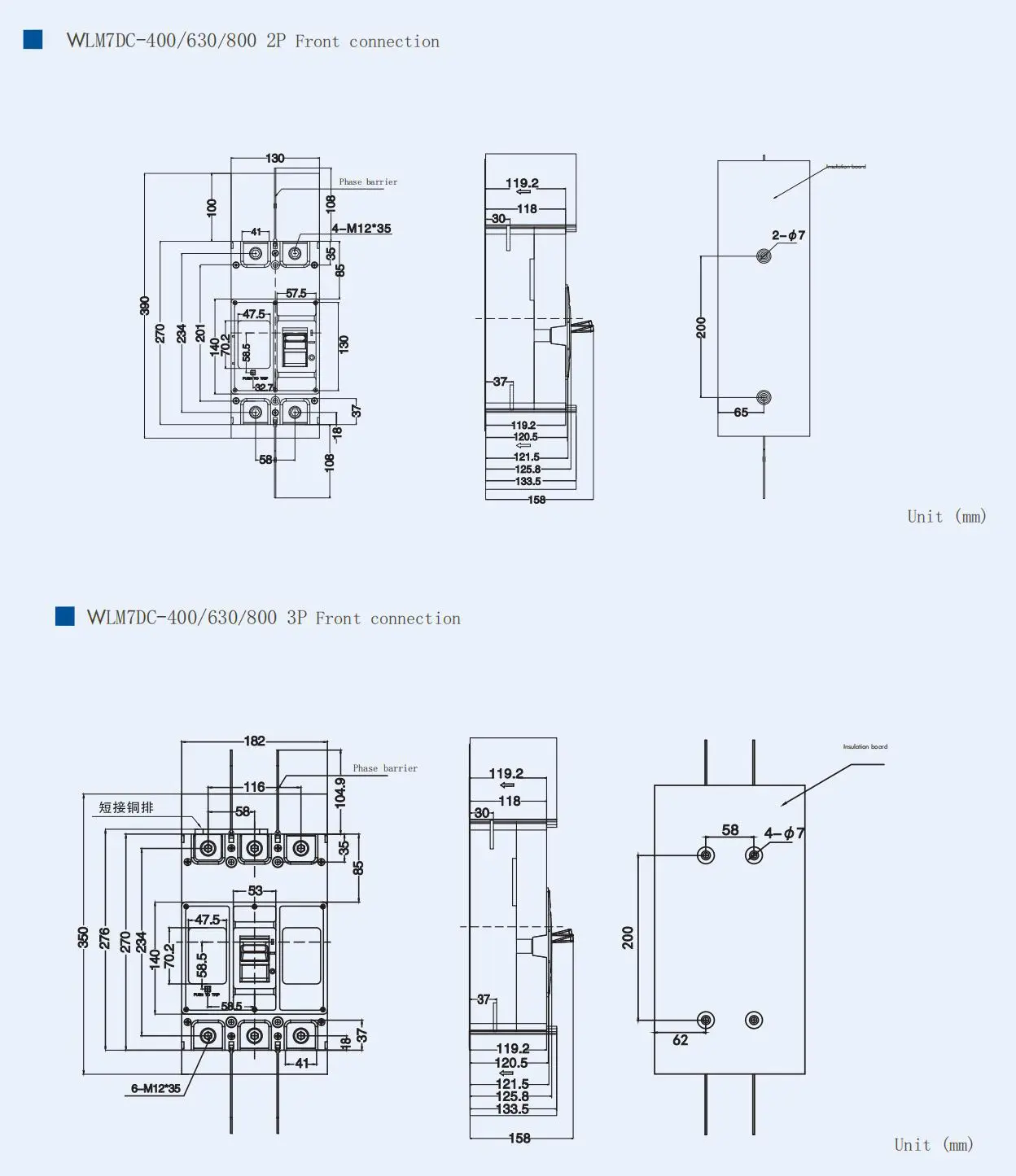

    Overall and installation dimensions of circuit breaker


    400630800qzw

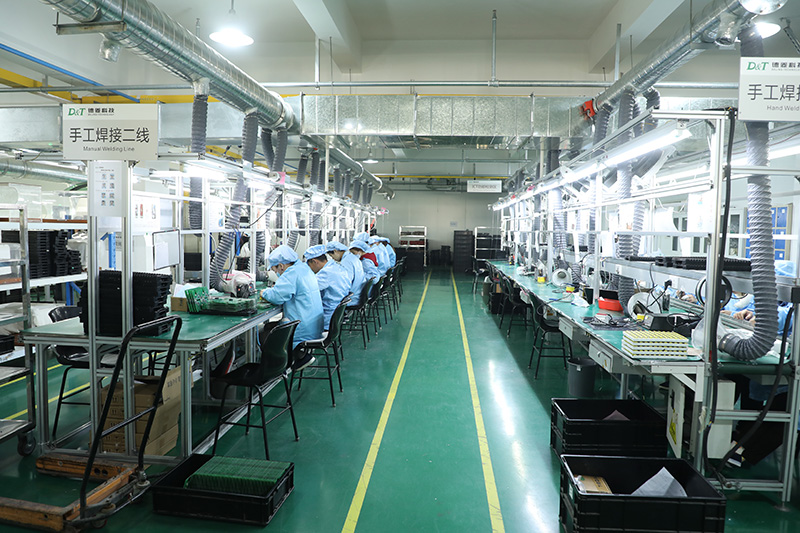

    MCCB Production Line Real Showing
