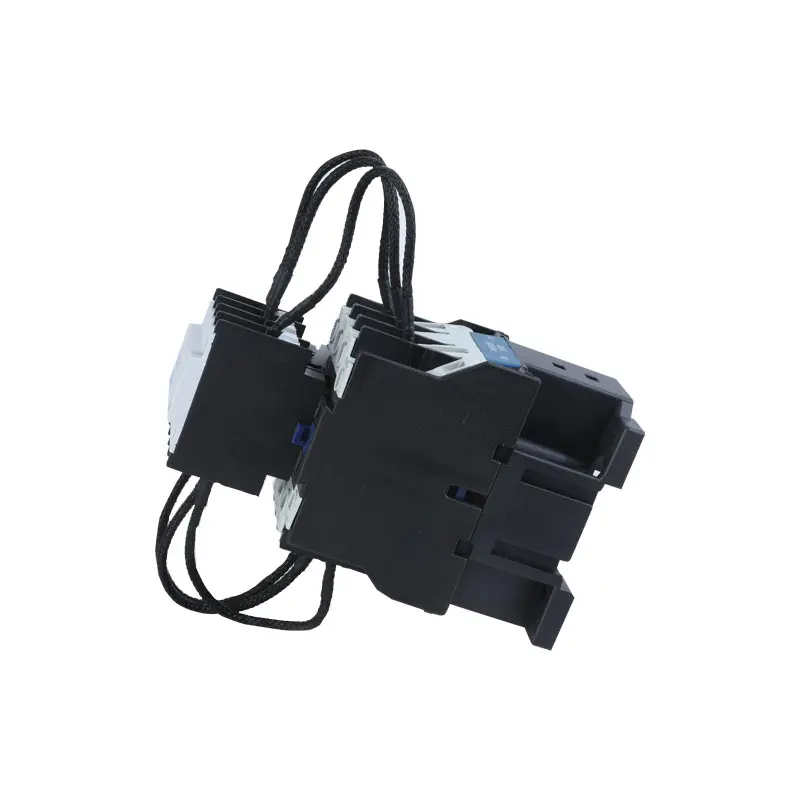

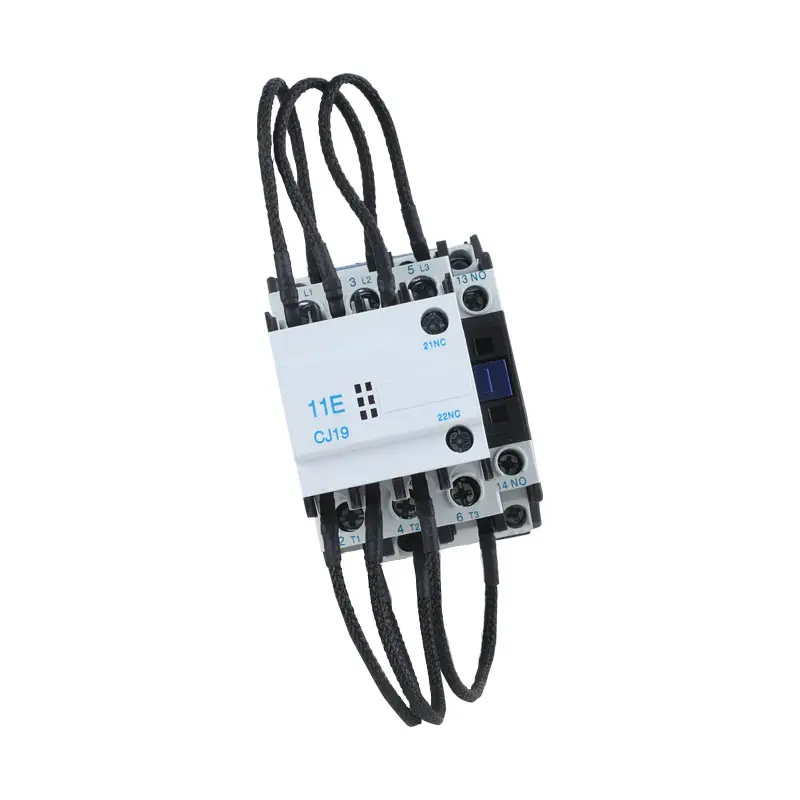

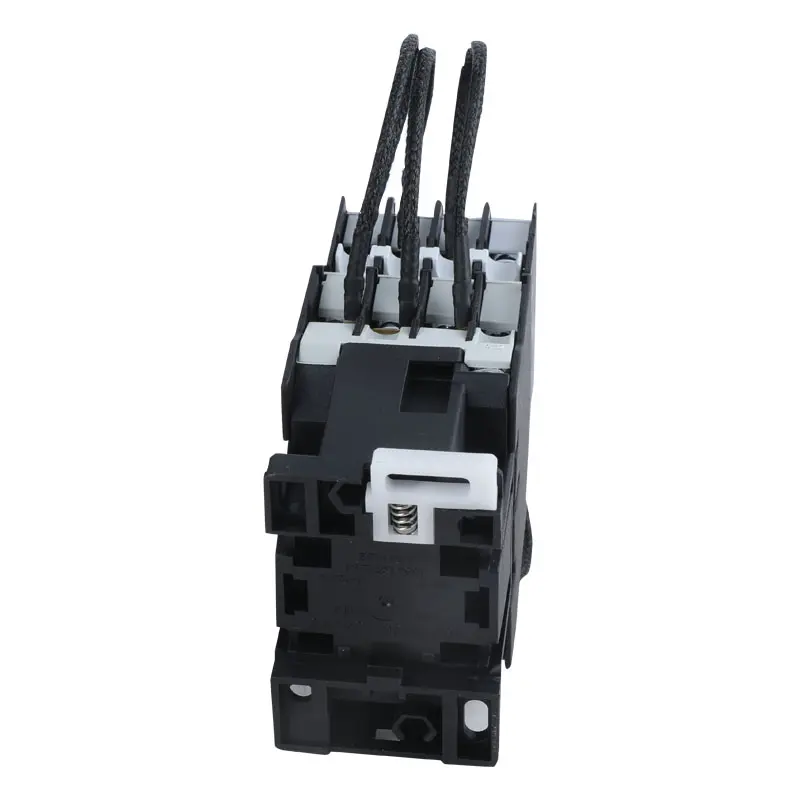

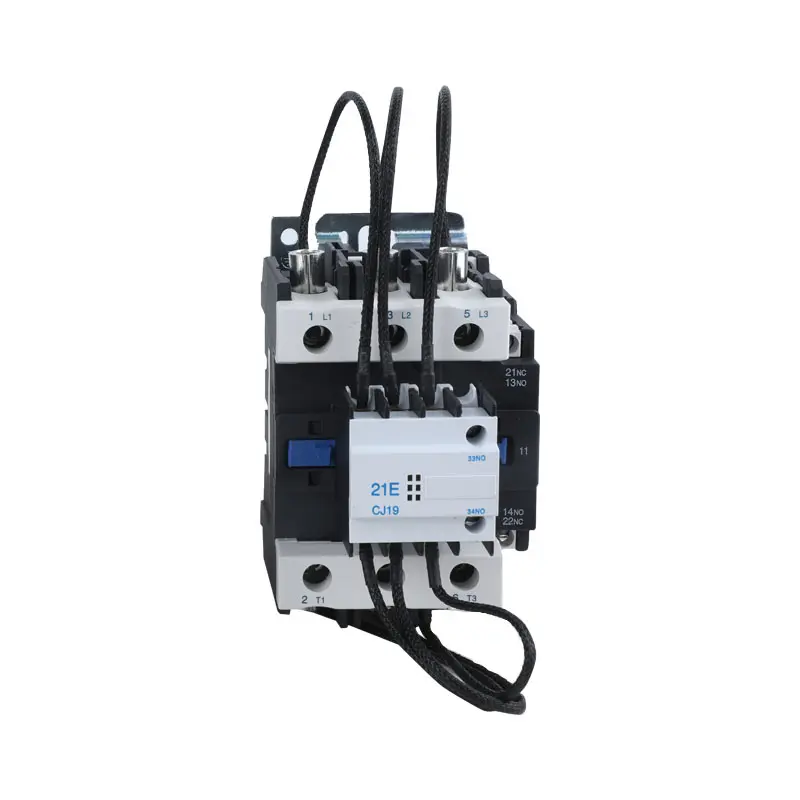

Modular Contactor CJ19 Changeover capacitor Ac contactor

CJ19 Series changeover capacitor contactor is especially used for low voltage shunt capacitor switching. And it widely used in reactive power compensation equipment in which AC 50HZ, voltage 380V, inrush current system in the contactor can decrease shock to capacitor and lower switching overvaluation while breaking a circuit.Moreover, It can replace transfer device which are composed of one contractor and three current limiting reactors, small, light, joins convenient and reliable, high capacity of turning on/off.
These series contactor  conforms to IEC60947-4-1 standard.

CJ19 series AC Contactor is suitable for using in the circuits the rated voltage up to 400V AC 50Hz or 60Hz. CJ19 is used to combine with low voltage reactive power compensators or cut off low voltage shunt capacitor. CJ19 series AC Contactor has restraining device to effectively decrease impact caused by inrush transient current when switch on or over voltage when switch off.

2. Altitude: The equipment is suitable for installation below an altitude of 2000m to ensure its adaptability to various geographical locations.

3. Atmospheric conditions: In an environment with a temperature of 40°C, the relative humidity of the atmosphere should not exceed 50%. However, at lower temperatures, higher relative humidity may be allowed. The maximum monthly relative humidity should not exceed 90%, and special measures should be taken to prevent the occurrence of condensation to ensure the reliability and durability of the equipment under different atmospheric conditions.

4. Pollution level: The equipment is designed to operate effectively in Level 3 pollution environments, demonstrating its recovery capabilities in moderately polluted environments.

5. Installation category: The installation category is designated as III, which indicates that the equipment is suitable for fixed installation and ensures its stability and reliability in various applications.

6. Installation conditions: The inclination between the mounting surface and the vertical surface should not exceed II, ensuring correct installation and alignment for optimal performance and safety.

7. Shock Impact: The product should be installed and used in places where it may be subject to frequent vibrations and shocks, highlighting its sturdy structure and ability to withstand challenging working conditions.

1. The contactor adopts a direct-acting double breakpoint structure design to ensure efficient and reliable operation. Its sensitive action mechanism is easy to inspect by hand and its compact structure makes it easy to replace contacts, minimizing downtime and maintenance workload.

2. The terminal block is protected by a cover to prevent accidental contact and ensure that connections are properly insulated, improving safety and reliability.

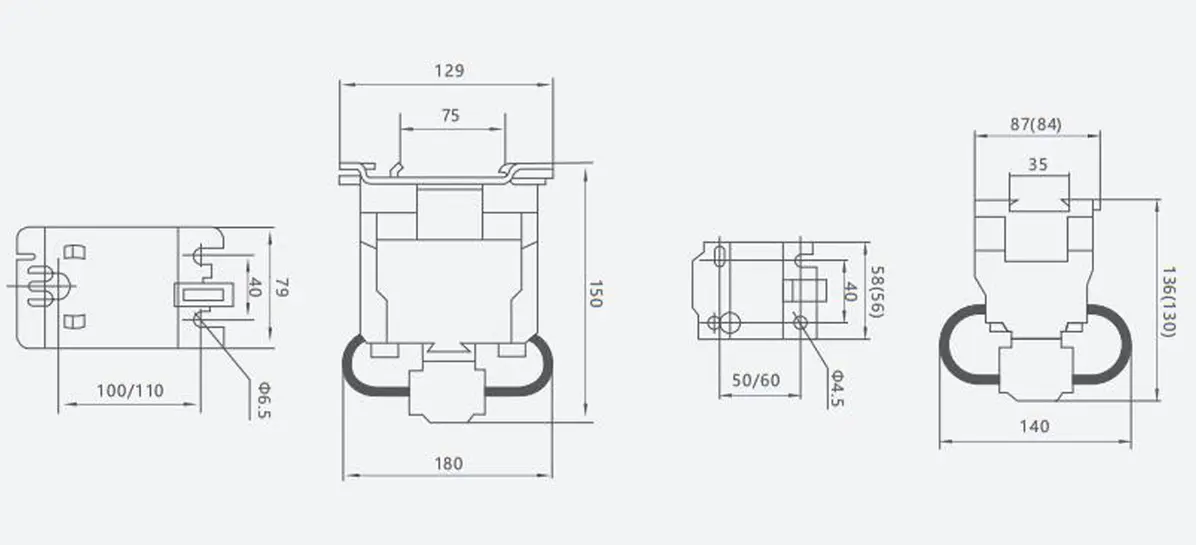

3. A variety of installation methods are provided. The contactor can be installed with screws or on a 35/75mm standard rail. The deployment is flexible and can meet various installation requirements.

4. The contactor complies with the IEC60947-4-1 standard, ensuring that its performance, safety and quality comply with international standards, giving users confidence in its reliability and suitability for a variety of applications.
