Residual Current Device JC3RH-S

RCCB


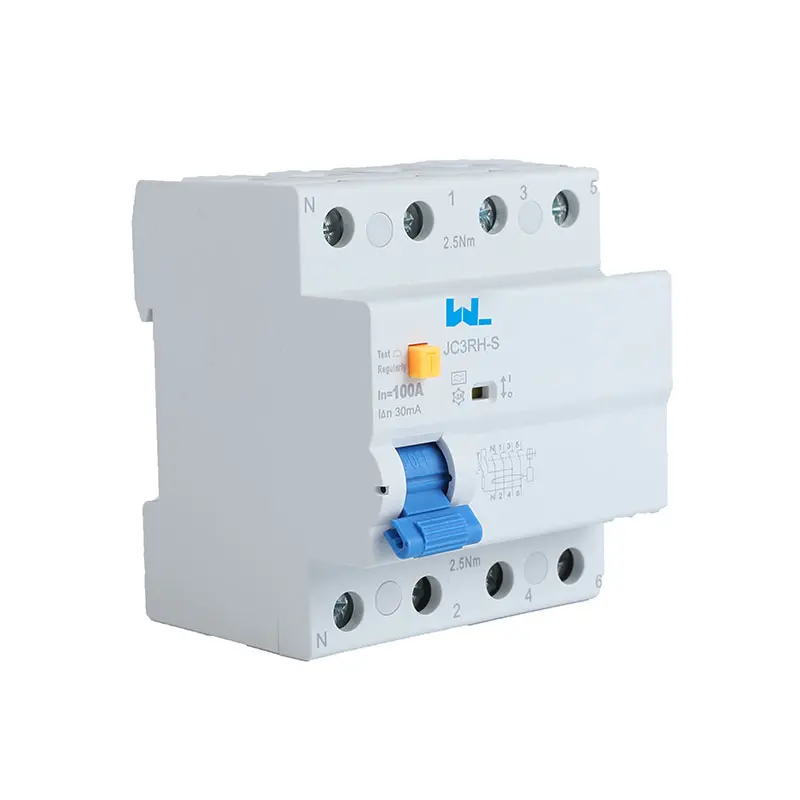

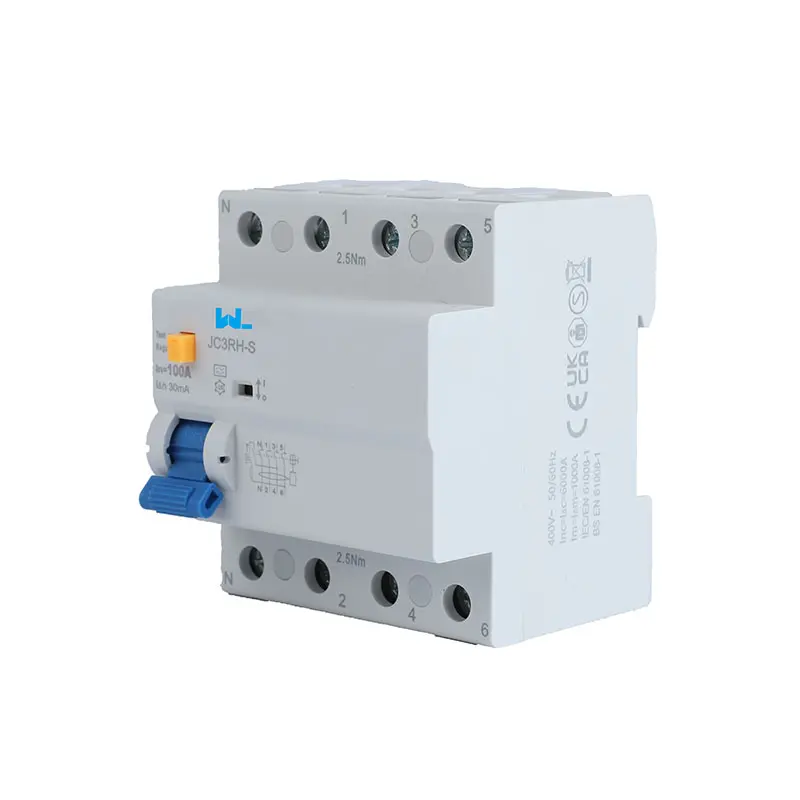

Residual Current Device JC3RH-S

The JC3RH-S RCD (residual current circuit breaker with overload protection) are suitable for consumer units or distribution boards, applied under occasions such as industrial, and commercial, high-rise buildings and residential houses.

    Contact us
    Product Details

    -3g3q

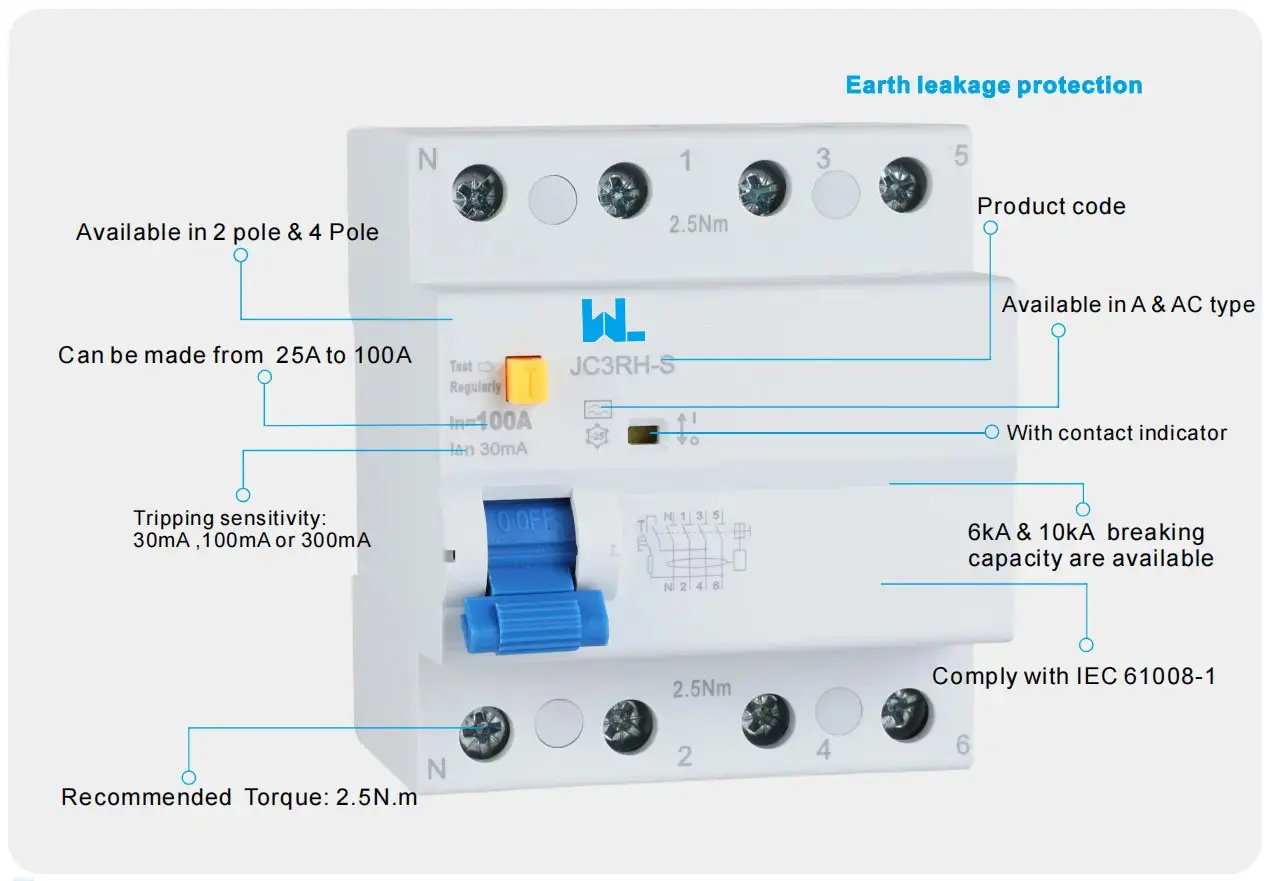

    Features

    ● Electromagnetic Type

    ● Earth leakage protection

    ● Breaking capacity 6kA, or 10kA

    ● Rated current up to 100A

    ● Available in Type A or Type AC

    ● Tripping sensitivity: 30mA,100mA,300mA

    ● Connection from top or bottom

    ● Complies with IEC 61008-1, EN61008-1

    Application

    The JC3RH-S RCD (residual current circuit breaker with overload protection) are suitable for consumer units or distribution boards, applied under occasions such as industrial, and commercial, high-rise buildings and residential houses.
    6jrp


    Overall, the JCSD1-125 is a must-have accessory for anyone looking to increase the safety and efficiency of their electrical installations. Its intuitive design, rugged construction and compliance with industry standards make it an excellent solution for MCB and RCBO monitoring. With the JCSD1-125, users can control their circuits with confidence knowing they have a reliable and effective tool.

    Standard
    IEC61008-1 , EN61008-1
    Electrical features
    Rated current In (A)
    25, 40, 50, 63, 80, 100
    Type
    Electromagnetic
    Type (wave form of the earth leakage sensed)
    AC, A, AC-G, A-G, AC-S and A-S are available
    Poles
    2 Pole, 4 Pole
    Rated voltage Ue(V)
    230/240 (2P), 400/415(4P)
    Rated sensitivity I∆n
    30mA,100mA,300mA are available
    Insulation voltage Ui (V)
    500
    Rated residual making and breaking capacity I∆m (A)
    500 (In=25A/40A), 630 (In=63A),
    1000(In=80A/100A)
    Rated frequency
    50/60Hz
    Rated breaking capacity
    6kA, 10kA
    Rated impulse withstand voltage(1.2/50) Uimp (V)
    6000
    Dielectric test voltage at ind. Freq. for 1 min
    2.5kV
    Pollution degree
    2
    Mechanical features
    Electrical life
    2, 000
    Mechanical life
    2, 000
    Contact position indicator
    Yes
    Protection degree
    IP20
    Reference temperature for setting of thermal
    element(°C)
    30
    Ambient temperature (with daily average ≤35°C)
    -5...+40
    Storage temperature (°C)
    -25...+70

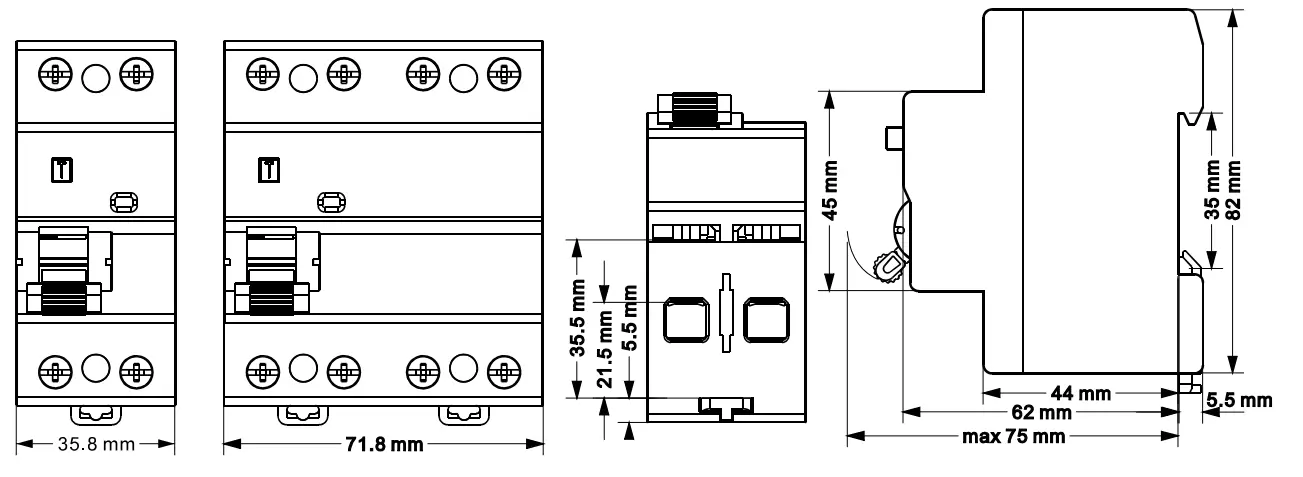

    Installation
    Terminal connection type
    Cable/U-type busbar/Pin-type busbar
    Terminal size top/bottom for cable
    25mm2 , 18-3/18-2 AWG
    Terminal size top/bottom for Busbar
    10/16mm2 ,18-8 /18-5AWG
    Tightening torque
    2.5 N*m / 22 In-Ibs.
    Mounting
    On DIN rail EN 60715 (35mm)
    Connection
    From top or bottom
