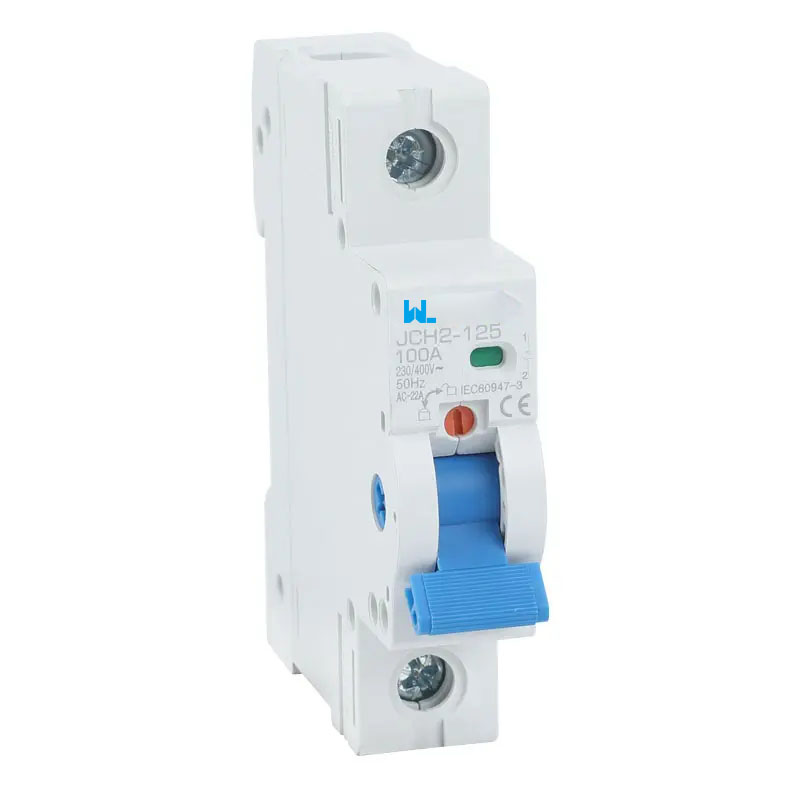

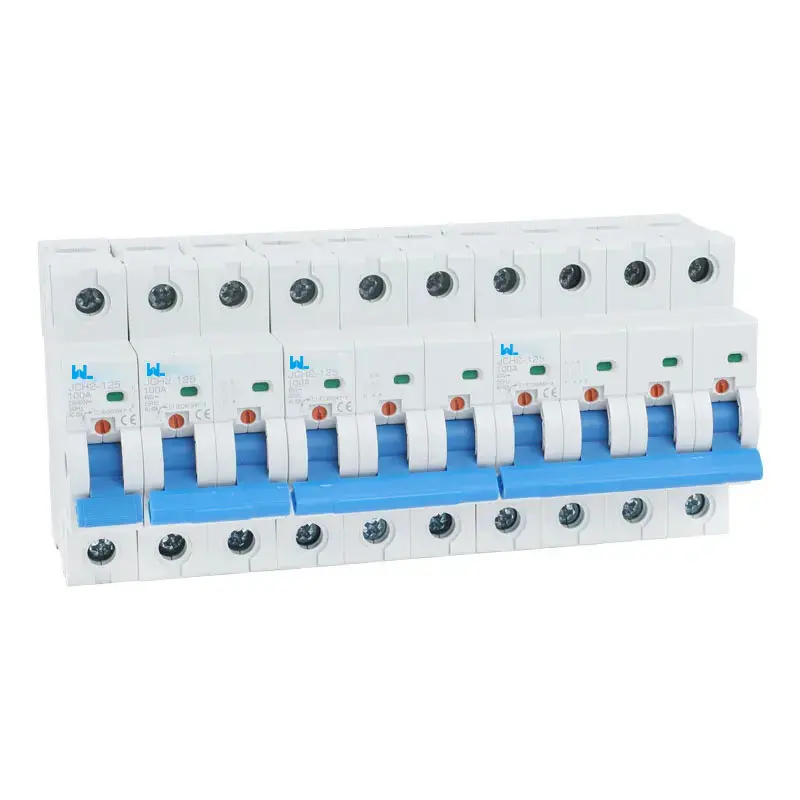

Lsolating Switch JCH2-125 Main Switch Isolator 100A 125A

Lsolating Switch


Lsolating Switch JCH2-125 Main Switch Isolator 100A 125A

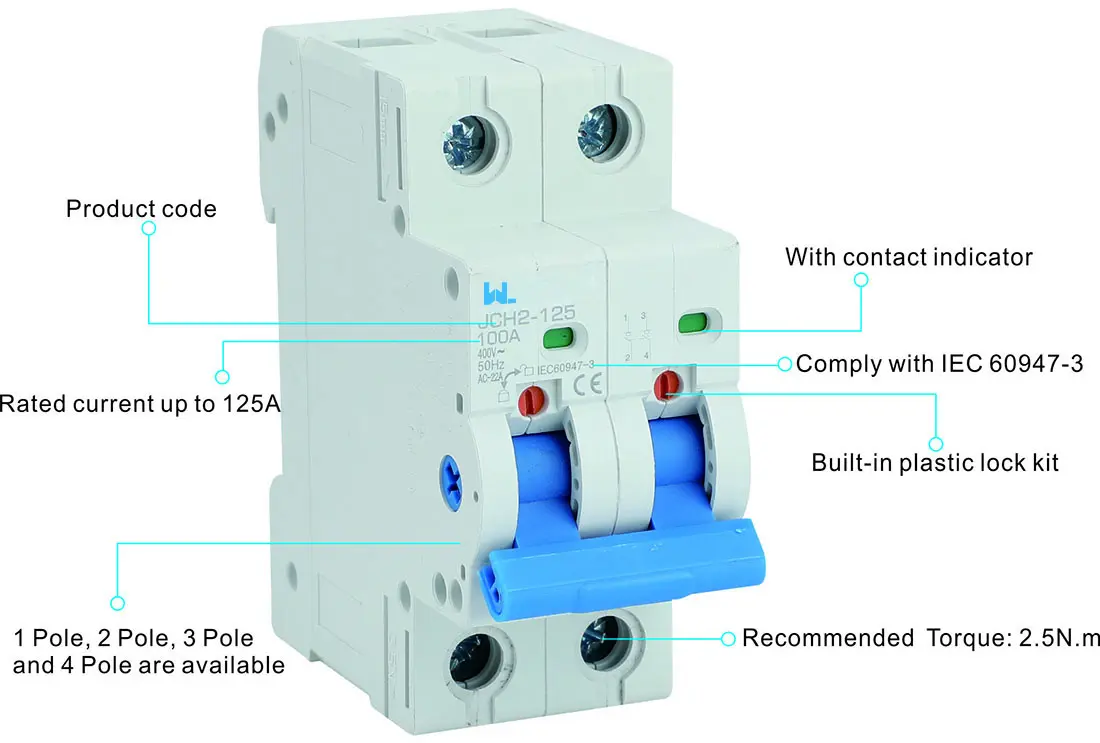

JCH2-125 series Main Switch is a switch disconnector which can be used as an Isolator, and can be used for residential and light commercial applications.
With plastic lock
With contact indicator
Rated current up to 125A

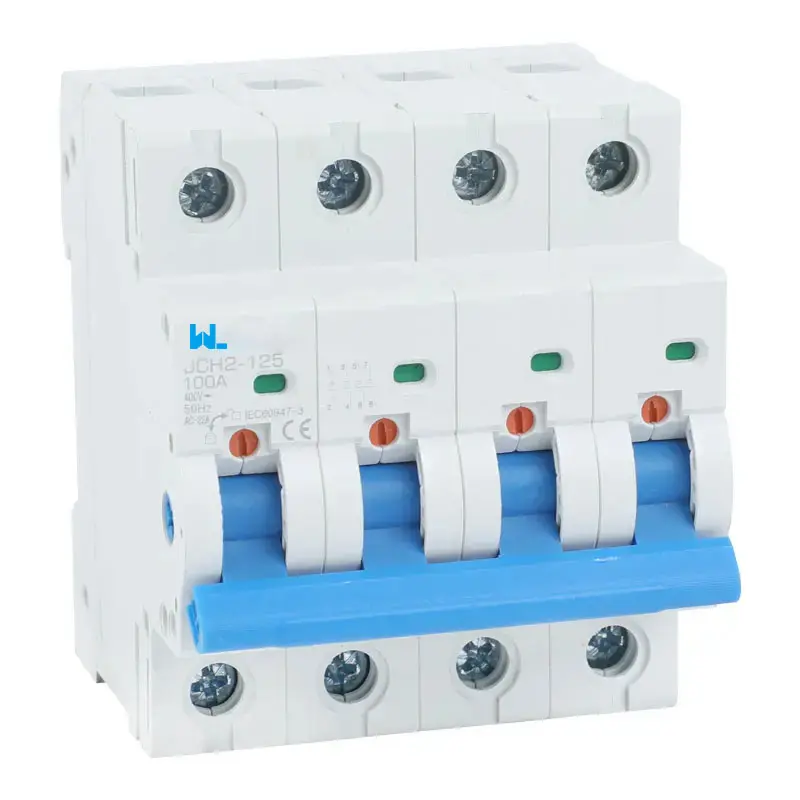

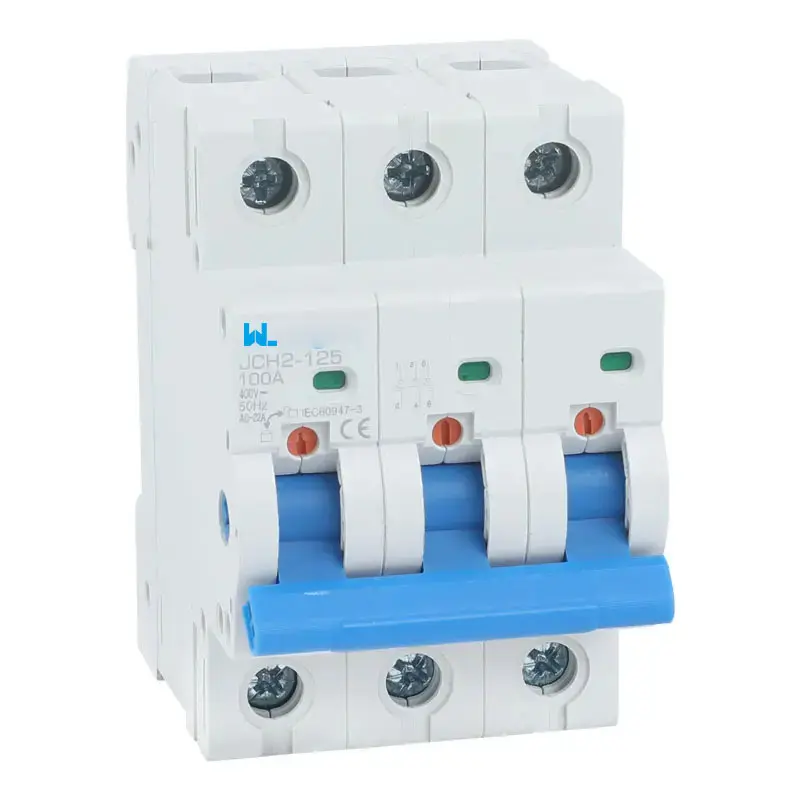

1 Pole, 2 Pole, 3 Pole , 4 Pole are available
Comply with IEC 60947-3

    Contact us
    Product Details

    Introduction

    JCH2-125 Main switch isolator is designed to employ the main switch that may simultaneously sever the connection between the live and neutral wires.
    JCH2-125 main switch that is also a switch disconnector which can be used as an Isolator, and can be used for residential and light commercial applications. The rate current is up to 125A. Rate current is available in 40A, 63A, 80A, 100A, 125A
    JCH2-125 Main switch is available in 1 pole, 2 pole, 3 pole and 4 Pole. The rated frequency is 50/60Hz. The rated impulse withstand voltage is 4000V. Rated short circuit withstand current lcw: 12le, t=0.1s. Rated making and breaking capacity: 3le, 1.05Ue, COSØ=0.65. IP20 rated.
    JCH2-125 Isolator has a green / red indication on the handle giving positive contact indication.Positive contact indicator: Green visible window indicates a 4mm contact gap.
    JCH2-125 Isolator is 35mm din rail mounted, easy for installation. It is compatible with Pin type / fork type standard busbars. It is Ideal for use where local isolation is required.
    JCH2-125 Isolator is a main switch only, without overload protection. It works to connect to cut off the load circuit.When it works as main switch, it may also trip when some of it's sub-circuit faulty. In such situation, it functions as main switch to function as earlier circuit protection.
    JCH2-125 Main switch isolator comply with IEC60947-3, EN60947-3

    Product Description

    wlle79

    Main Features

    ● Rated current: 40A, 63A, 80A, 100A, 125A, providing a wide range of options to suit various power requirements.
    ● Utilisation Type: Type AC-22A, indicating its suitability for switching and control of resistive and inductive loads.
    ● Rated short circuit withstand current lcw: 12le, t=0.1s, ensuring reliable performance under short circuit conditions.
    ● Rated short circuit making capacity 1cm: 20le, t=0.1s, demonstrating its ability to handle short circuit situations effectively.
    ● Rated making and breaking capacity: 3le, 1.05Ue, COSØ=0.65, ensuring stable and efficient operation during switching.
    ● Insulation Voltage Ui: 690V, providing a high level of insulation for enhanced safety.
    ● Rated impulse withstand voltage Uimp: 4000V, ensuring protection against voltage surges and spikes.
    ● IP rating: IP20 rated, offering protection against solid objects and providing safety in various environments.
    ● Current limiting class 3, indicating its ability to limit fault current to a safe level.
    ● Contact position indicator red – green, providing clear visual indication of the contact position for added safety.

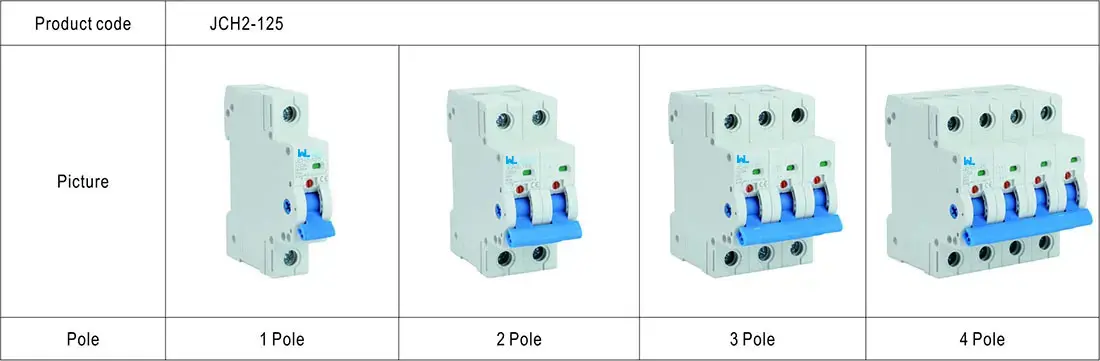

    ● Available in 1 Pole, 2 Pole, 3 Pole, and 4 Pole configurations, offering flexibility for different installation requirements.
    ● Compatible with PIN or Fork type standard busbar, ensuring ease of installation and compatibility with standard components.
    ● Device capable of being locked in ‘ON’ or ‘OFF’ position using a device lock or padlock, providing additional security and control.
    ● Complies with IEC60947-3, EN60947-3, ensuring that it meets international standards for safety and performance, giving users confidence in its reliability and quality.

    660392bb45

    Technical Data

     ●Standards: IEC60947-3, EN60947-3, ensuring compliance with international safety and performance standards.
     ● Rated current: 32A, 40A, 50A, 63A, 80A, 100A, 125A, providing a variety of options to adapt to various power needs.
     ●Number of poles: 1P, 2P, 3P, 4P, can be flexibly adapted to different installation configurations.
     ● Rated voltage Ue: 230V/400V～240V/415V, suitable for various voltage systems.
     ● Insulation voltage Ui: 500V, ensuring high insulation level and enhancing safety.
     ● Rated frequency: 50/60Hz, suitable for use in different frequency environments.
     ● Rated impulse withstand voltage (1.2/50) Uimp: 4000V, providing surge voltage and peak voltage protection.
     ● Rated short-time withstand current lcw: 12le, 1s, ensuring reliable performance under short circuit conditions.
     ● Rated making and breaking capacity: 3le, 1.05Ue, cosφ=0.65, ensuring stable and efficient operation during switching.
     ● Rated short-circuit making capacity: 20le, t=0.1s, which reflects its ability to effectively handle short-circuit situations.
     ● Insulation test voltage. frequency.  5s: 2kV, ensuring electrical insulation and safety.
     ● Pollution level: Level 2, suitable for use in low to moderate pollution environments.
     ● Mechanical life: 8500 times, ensuring durability and longevity.
     ● Electrical life: 1500 times, proving its reliability and performance over multiple switching cycles.
     ● Protection level: IP20, which can prevent solid objects from entering and ensure safety in various environments.
     ●Ambient temperature (daily average ≤35℃): -5℃~+40℃, suitable for operation in a wide range of temperature conditions.
     ● Contact position indicator: green = off, red = on, providing clear visual indication of contact position to increase safety.
     ● Terminal connection type: cable/pin busbar, flexible connection method.
     ● Installation: Installed on DIN rail EN 60715 (35mm) through quick clamp device to ensure convenient and safe installation.
     ● Recommended torque: 2.5Nm, provides guidance for correct installation and maintenance.

    Standard  IEC/EN 60947-3

    Electrical features

    		 Rated current In (A) 32,40,50,63,80,100,125
    Poles 1P,  2P, 3P, 4P
    Rated voltage Ue(V) 230/400~240/415
    Insulation voltage Ui (V) 500
    Rated frequency 50/60Hz
    Rated impulse withstand voltage(1.2/50) Uimp (V) 4,000
    Rated short-time withstand current lcw 12le, 1s
    Rated making and breaking capacity 3le, 1.05Ue, cosφ=0.65
    Rated short circuit making capacity 20le, t=0.1s
    Dielectric test voltage at ind. Freq. for 5s 2kV
    Pollution degree 2
      Uilization category AC-22A

    Mechanical features

    		 Electrical life 1500
    Mechanical life 8500
    Contact position indicator Yes
    Protection degree IP20
    Ambient temperature (with daily average ≤35℃) -5…+40
    Storage temperation (℃) -25…+70
    Installation Terminal connection type Cable/U-type busbar/Pin-type busbar
    Terminal size top/bottom for cable

    50mm2  / 18-1/0 AWG
    Terminal size top/bottom for Busbar

    35mm2  / 18-2 AWG
    Tightening torque

    2.5 N*m  /  22 In-Ibs.

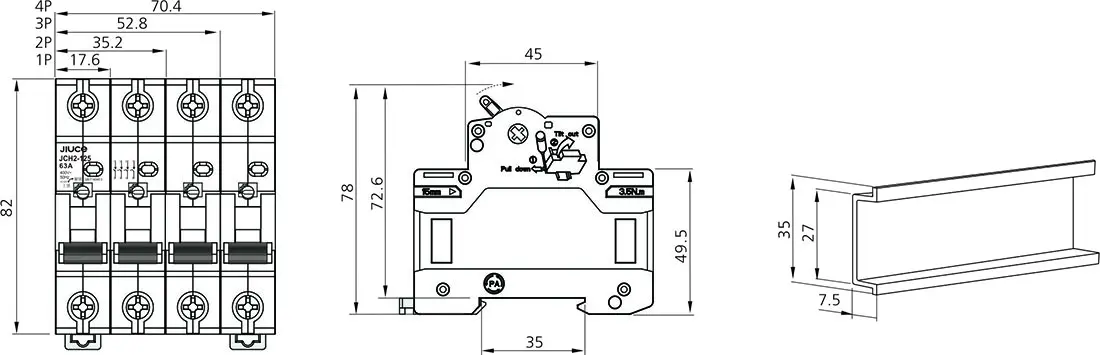

    Mounting On DIN rail EN 60715 (35mm) by means of fast clip device
    Connection From top and bottom

    JCH2-125-3z9h

    Q1: Wonder if you accept small orders?

    A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convenient ,we accept small order.



    Q2: Can you send products to my country?

    A2: Sure, we can. If you do not have your own ship forwarder, we can help you.



    Q3: Can you do OEM for me?

    A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.



    Q4: What's your payment terms ?

    A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% against the copy of B/L.



    Q5: How can I place the order?

    A5: First sign the PI,pay deposit,then we will arrange the production.After the goods finished production we will send u the copy of B/L then u paid. Finally u will get the goods.



    Q6: When can I get the quotation ?

    A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
