Lsolating Switch JCH2-125 Main Switch Isolator 100A 125A

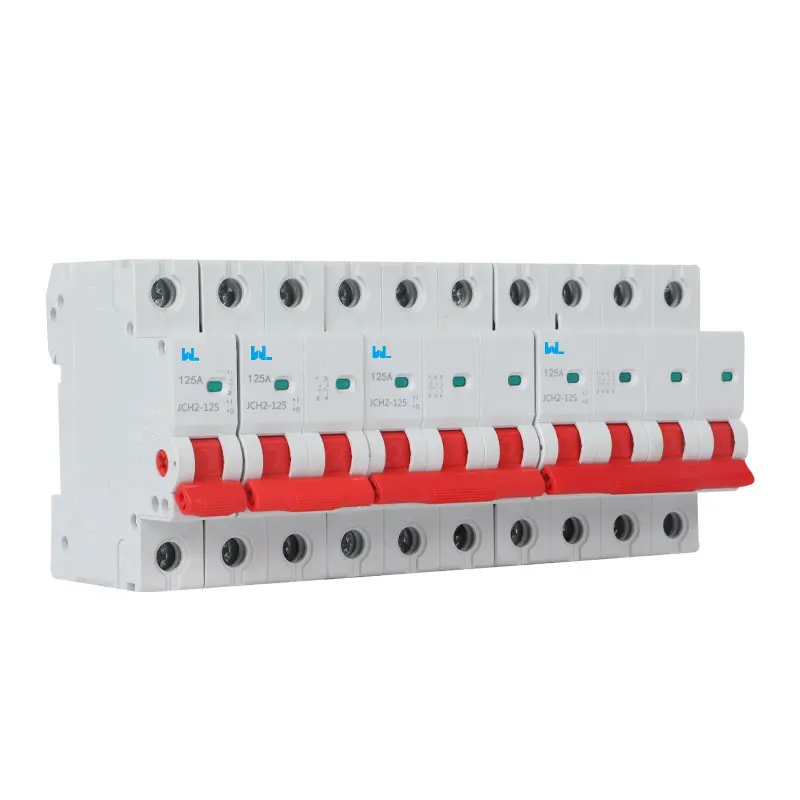

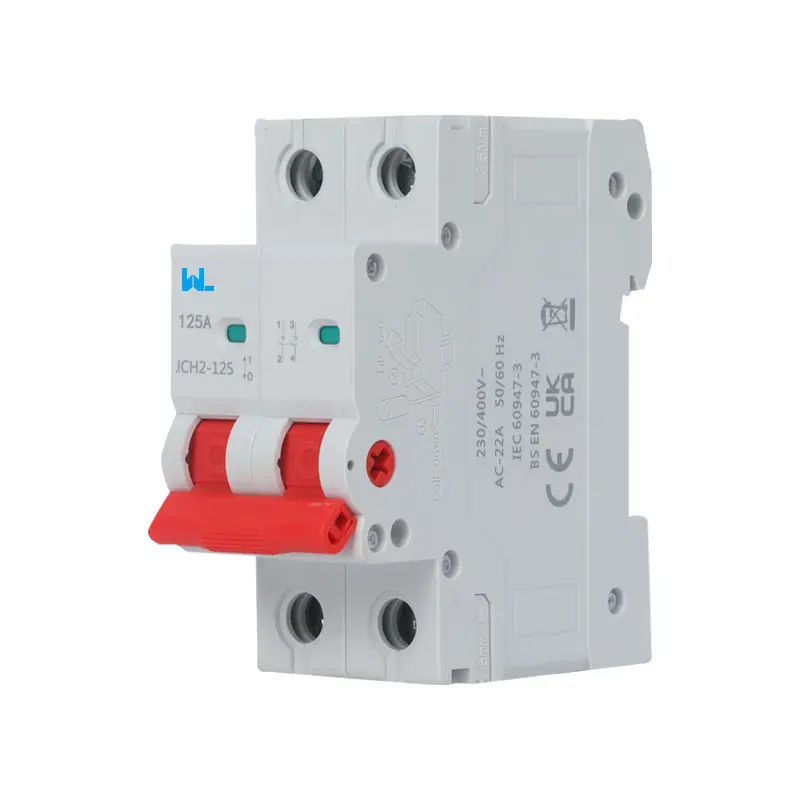

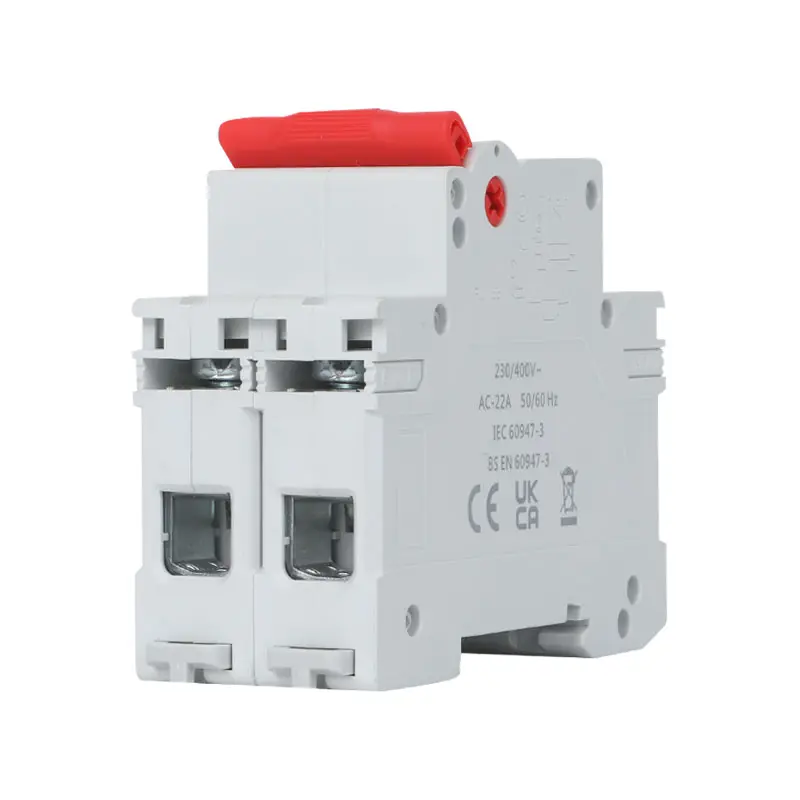

JCH2-125 Main switch isolator is designed to employ the main switch that may simultaneously sever the connection between the live and neutral wires.
JCH2-125 main switch that is also a switch disconnector which can be used as an Isolator, and can be used for residential and light commercial applications. The rate current is up to 125A. Rate current is available in 40A, 63A, 80A, 100A, 125A

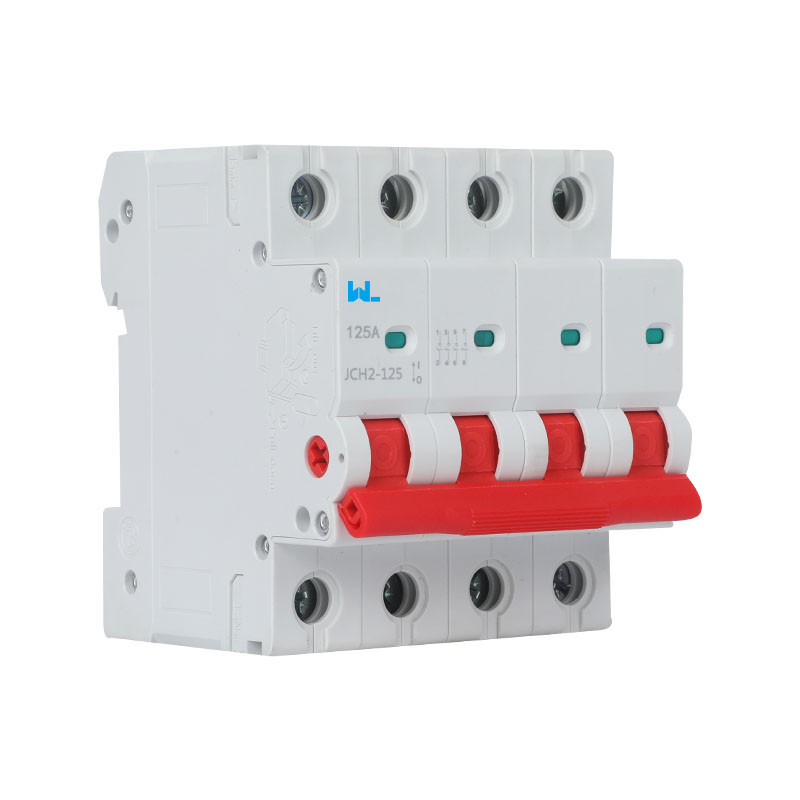

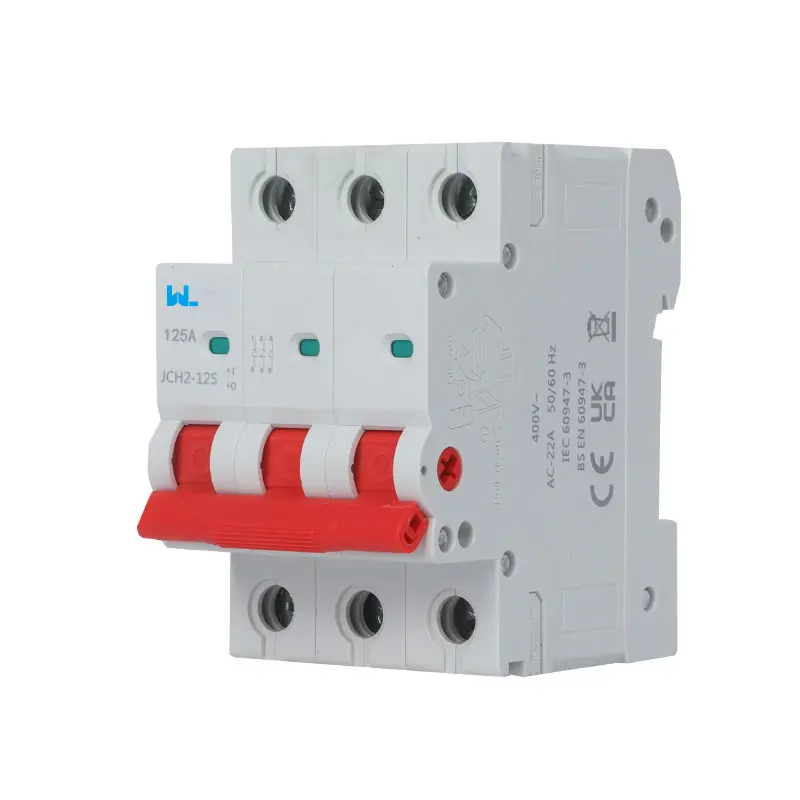

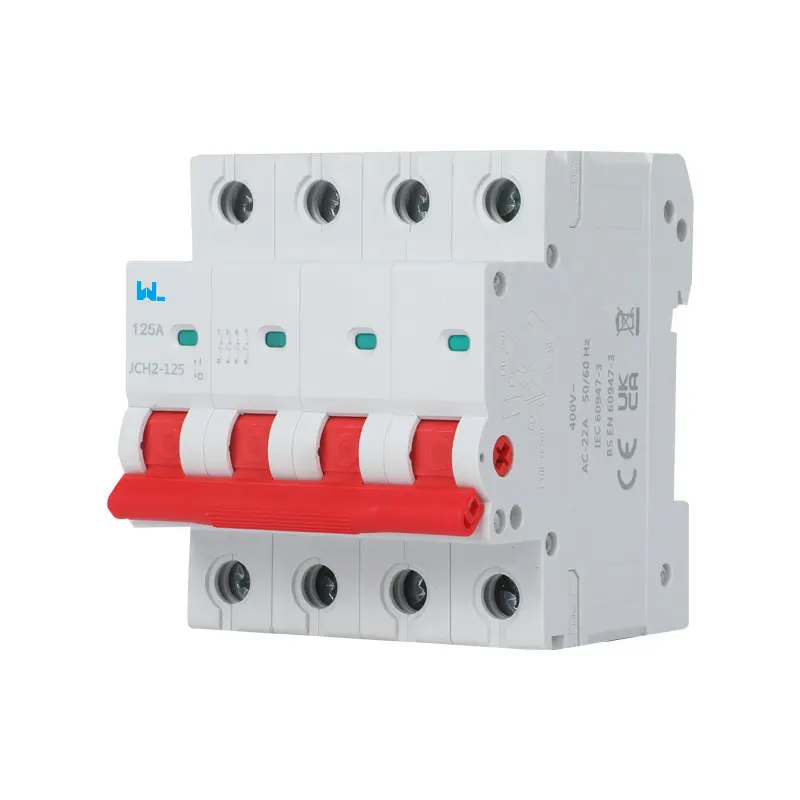

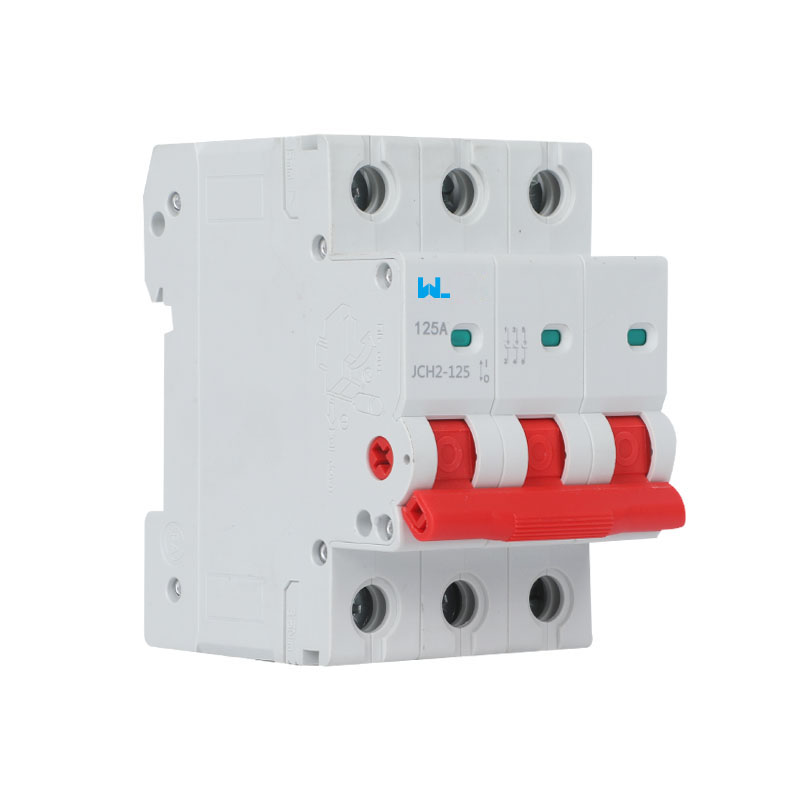

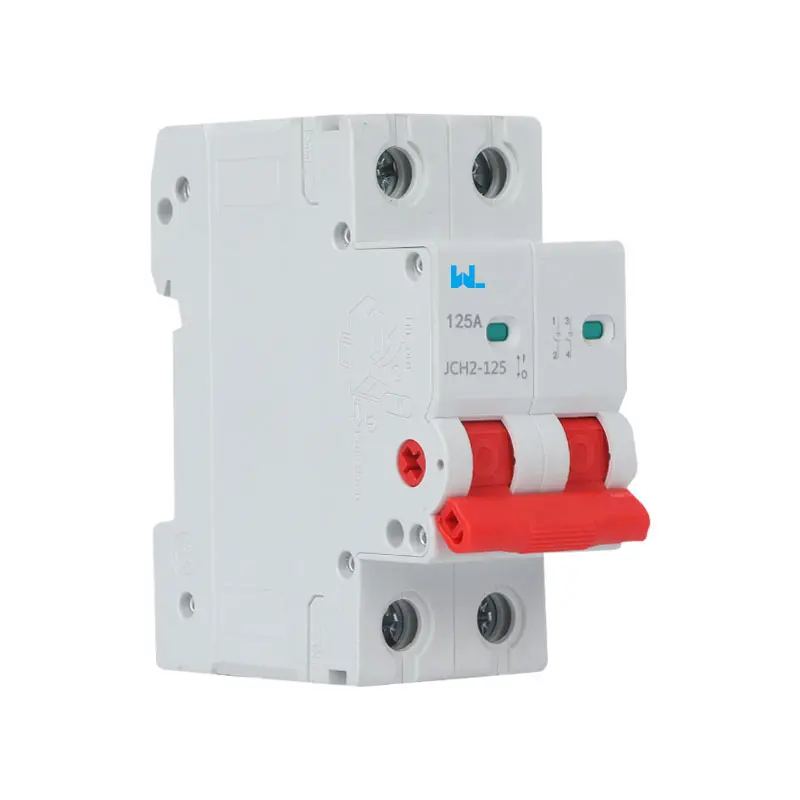

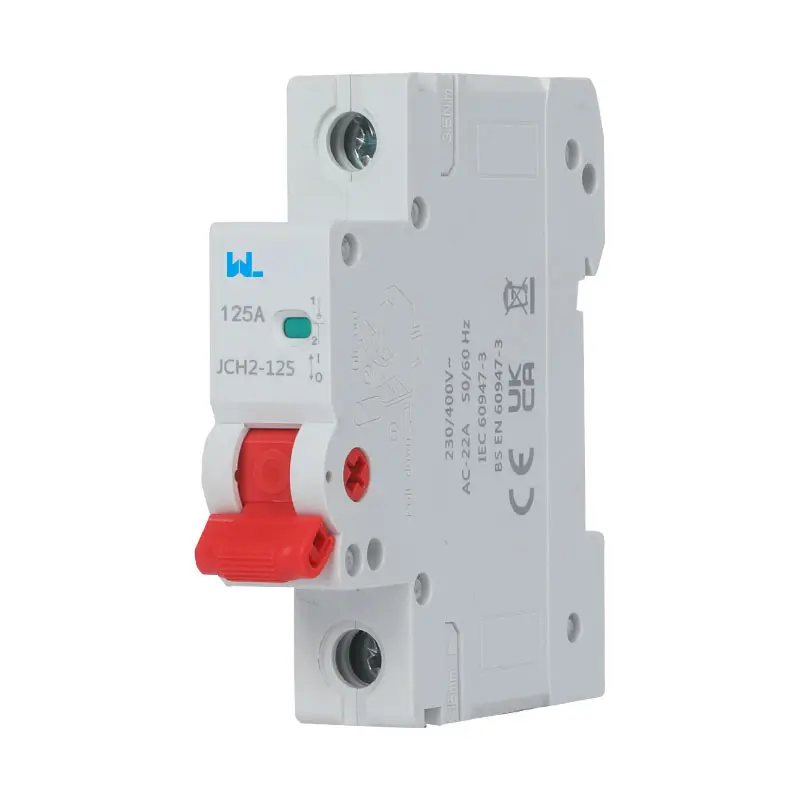

JCH2-125 Main switch is available in 1 pole, 2 pole, 3 pole and 4 Pole. The rated frequency is 50/60Hz. The rated impulse withstand voltage is 4000V. Rated short circuit withstand current lcw: 12le, t=0.1s. Rated making and breaking capacity: 3le, 1.05Ue, COSØ=0.65. IP20 rated.

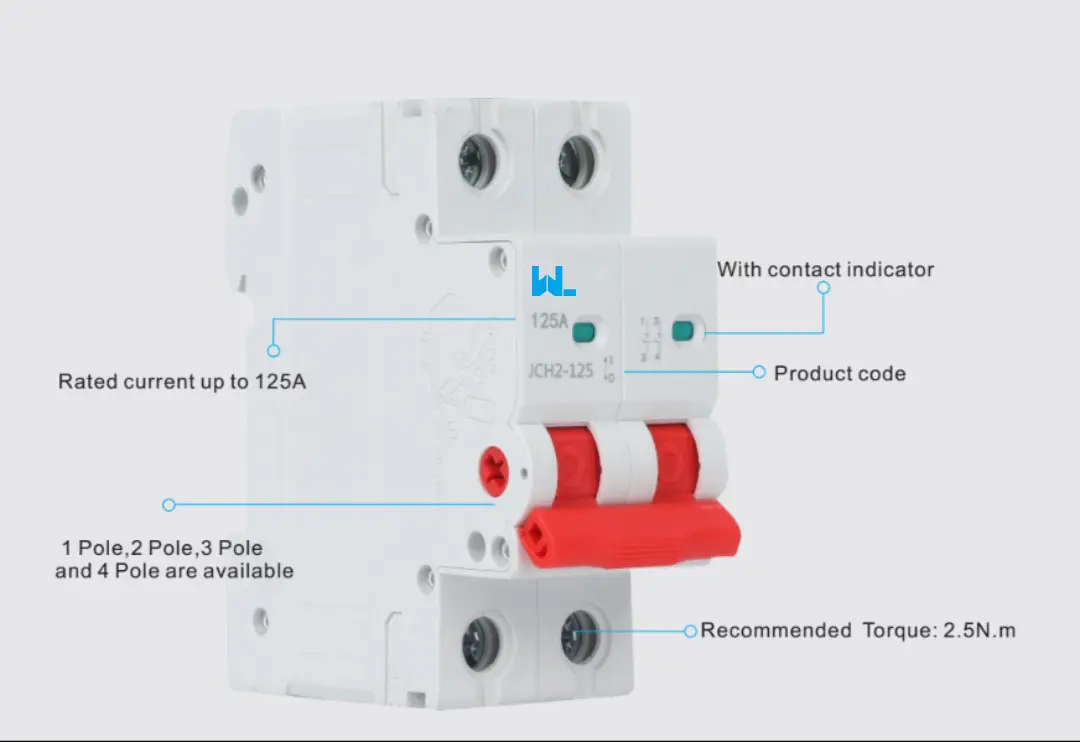

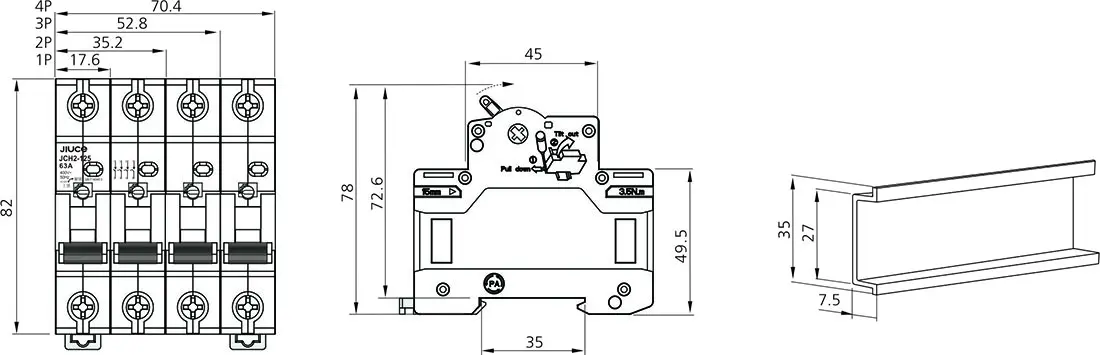

JCH2-125 Isolator has a green / red indication on the handle giving positive contact indication.Positive contact indicator: Green visible window indicates a 4mm contact gap.
JCH2-125 Isolator is 35mm din rail mounted, easy for installation. It is compatible with Pin type / fork type standard busbars. It is Ideal for use where local isolation is required.
JCH2-125 Isolator is a main switch only, without overload protection. It works to connect to cut off the load circuit.When it works as main switch, it may also trip when some of it's sub-circuit faulty. In such situation, it functions as main switch to function as earlier circuit protection.
JCH2-125 Main switch isolator comply with IEC60947-3, EN60947-3

● Usage type: AC-22A type, indicating the intended use of the isolating switch, that is, the type of load and duty cycle it can handle.

● Rated short circuit withstand current lcw: 12le, t=0.1s, ensuring robust protection and safety during short circuit.

● Rated short-circuit making capacity 1cm: 20le, t=0.1s, proving the ability of the isolating switch to handle short-circuit situations.

● Rated making and breaking capacity: 3le, 1.05Ue, COSØ=0.65, providing information on the making and breaking circuit performance of the isolating switch.

● Insulation voltage Ui: 690V, indicating the highest voltage at which the isolation switch can operate safely.

● IP rating: IP20 rating, providing protection against solid objects and limited protection against water.

● Current limiting level 3 indicates the ability of the isolating switch to limit the fault current.

● Contact position indicator red-green, provides visual indication of the contact position of the isolating switch to enhance safety and convenience.

● Available in 1-pole, 2-pole, 3-pole and 4-pole configurations to meet different installation requirements and electrical settings.

● Compatible with PIN or Fork type standard busbars, providing flexibility and compatibility with different busbar types.

● Ability to lock equipment in the "ON" or "OFF" position using an equipment lock or padlock, providing additional security and control over the operation of the disconnect switch.

● Comply with IEC60947-3 and EN60947-3 to ensure that electrical equipment complies with international standards and regulations, ensuring reliability and safety.

● Rated current: 32A, 40A, 50A, 63A, 80A, 100A, 125A, providing a variety of options to adapt to various electrical load requirements.

● Number of poles: 1P, 2P, 3P, 4P to meet different installation requirements and electrical settings.

● Rated voltage Ue: 230V/400V～240V/415V, indicating the rated operating voltage range of the isolating switch.

● Insulation voltage Ui: 500V, ensuring safe operation under specified voltage conditions.

● Rated frequency: 50/60Hz, indicating the rated frequency of the isolating switch action.

● Rated impulse withstand voltage (1.2/50) Uimp: 4000V, ensuring reliable performance under impulse voltage conditions.

● Rated short-time withstand current lcw: 12le, 1s, providing strong protection and safety in the event of a short circuit.

● Rated making and breaking capacity: 3le, 1.05Ue, cosφ=0.65, providing information on the making and breaking circuit performance of the isolating switch.

● Rated short-circuit making capacity: 20le, t=0.1s, indicating the ability of the isolating switch to handle short-circuit situations.

● Insulation test voltage. frequency. Lasts 5 seconds: 2kV, ensuring electrical insulation and safety under specified test conditions.

● Pollution level: Level 2, indicating the degree of pollution that the isolation switch can withstand while maintaining safe and reliable operation.

● Mechanical life: 8500 times, indicating the number of mechanical operations that the isolation switch can withstand.

● Electrical life: 1500 times, indicating the number of electrical operations that the isolation switch can withstand.

● Protection level: IP20, providing protection against solid objects and limited waterproof protection.

● Ambient temperature (daily average ≤35℃): -5℃～+40℃, indicating the ambient temperature range in which the isolation switch can effectively operate.

● Contact position indicator: green = closed, red = open, provides visual indication of isolation switch contact position to enhance safety and convenience.

● Terminal connection method: Cable/Pin type busbar, flexible and compatible with different terminal connection methods.

● Installation method: Installed on DIN rail EN 60715 (35mm) through a quick clamp device, providing a standardized and convenient installation method.

● Recommended torque: 2.5Nm, ensure the isolation switch is installed and operated correctly.
