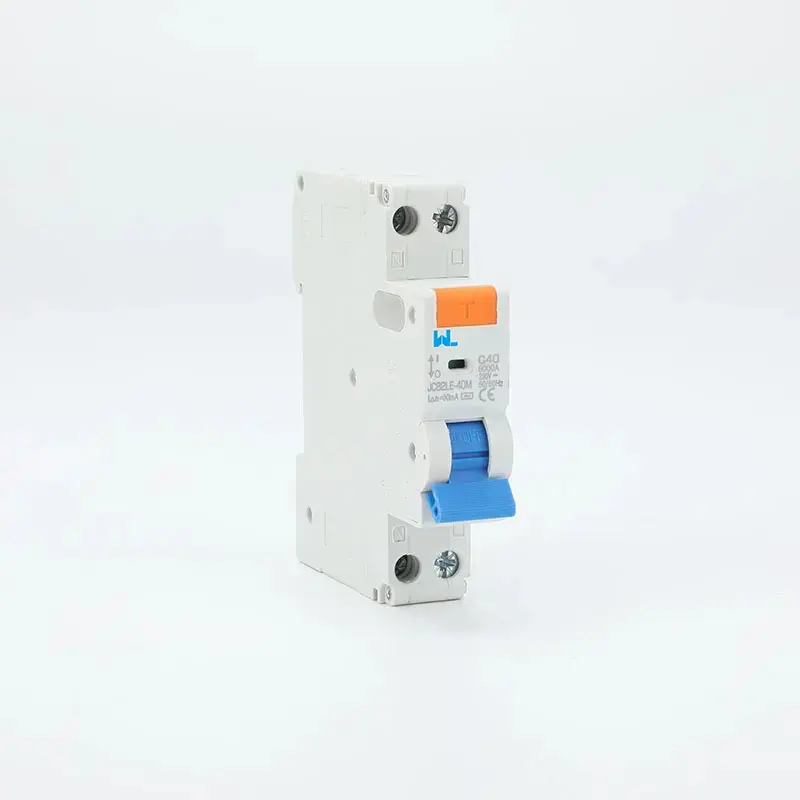

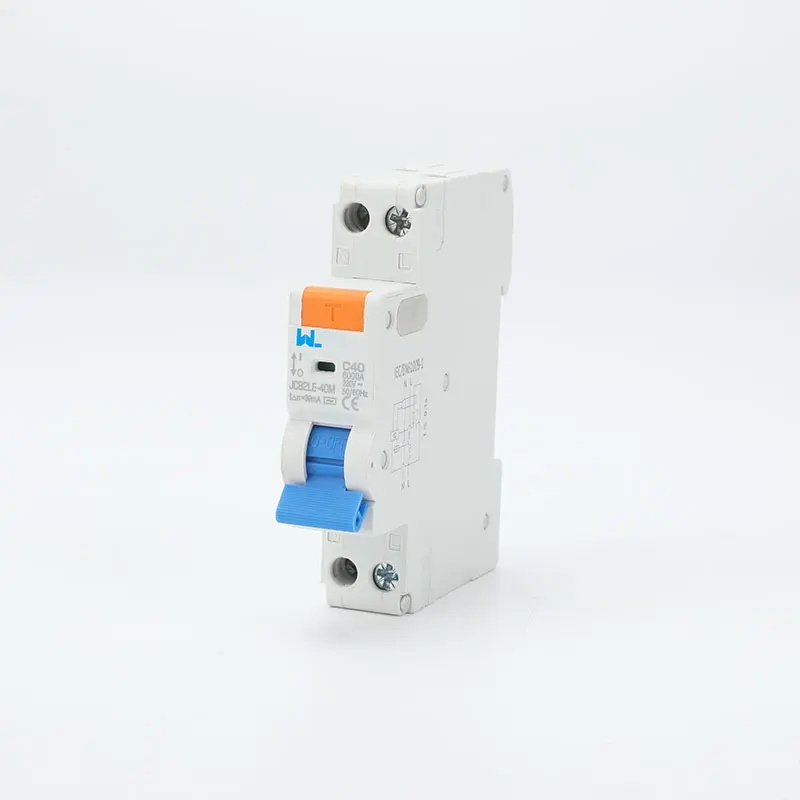

RCBO single Module residual current circuit breaker with overload protection JCB2LE-40M 1P+N mini 6kA

JCB2LE-40M rcbo provides combined residual current (earth leakage) protection and overload/short circuit protection in a single device and may be used to replace an RCCB/MCB combination. Movement characteristic of products can not be changed with outside mechanical tool;The operating organization has the free function to take off and buckle; Operate part can not be taken down from the shell outer of products, the shell can not influence the operating organization to work, the accessory group which replace the feelers pressure, should guarantee the feelers does not change while running.

JCB2LE-40M RCBO is very easy to install in the single phase distribution box, it is non Line / Load sensitive RCBO, its Installation flexibility with the choice of line connection either from top or bottom.

JCB2LE-40M RCBO is the RCBO that has a width of 18 mm or 1-module housing and a short circuit capacity of 6kA. It is available in 6kA, type A, type AC, 30mA, 100mA with various current ratings from 6A to 40A.

The JCB2LE-40M RCBOs (residual current circuit breaker with overload protection) are suitable for consumer units or distribution boards, applied under occasions such as industrial, and commercial, high-rise buildings and residential houses. It is highly advised to be used in installations that requires high level of protection such as bathrooms, hospitals, kindergartens, etc.

● Electronic type: RCBO utilizes electronic technology to provide advanced protection features.

● Leakage protection: Provide comprehensive leakage fault protection to improve safety.

● Overload and short-circuit protection: Ensure reliable overload and short-circuit protection to protect the electrical system.

● Non-Line/Load Sensitive: Provides installation flexibility with choice of top or bottom line connections.

● Breaking capacity up to 6kA: Provides high breaking capacity and effectively handles electrical faults.

● Current ratings up to 40A: Available in a variety of current ratings, providing versatility for different applications.

● B-curve or C trip curve available: options for different trip characteristics to meet specific requirements.

● Trip sensitivity: Provides 30mA and 100mA trip sensitivity options to meet diverse needs.

● Compact and ultra-thin module design: efficient use of space, allowing multiple RCDs/MCBs to be installed in a single housing.

● True bipolar circuit break: ensures complete isolation of faulty circuits for enhanced safety.

● Neutral pole switching: Reduce installation and debugging test time and improve efficiency.

● Insulation opening: facilitates busbar installation and simplifies the installation process.

● 35mm DIN rail mounting: Compatible with standard DIN rail mounting systems, easy to install.

● Compatible with various types of screwdrivers: it adopts combination head screws for easy installation and multi-function.

● Meet ESV additional testing and verification requirements: Meet additional testing and verification standards to enhance reliability.

● Comply with IEC 61009-1, EN61009-1: comply with international standards to ensure quality and safety compliance.

● Standards: Compliant with IEC 61009-1 and EN61009-1, ensuring compliance with international safety and quality standards.

● Type: Utilizes electronic technology to achieve advanced protection functions.

● Type (detected ground leakage waveform): Available in Type A or AC options to meet specific application requirements.

● Number of poles: 1P+N configuration is used to effectively protect the circuit.

● Rated current: Available in multiple current ratings of 2A, 6A, 10A, 16A, 20A, 25A, 32A and 40A, providing versatility for different applications.

● Rated working voltage: supports 110V and 230V~ (1P + N) configuration, suitable for a variety of electrical systems.

● Rated sensitivity I△n: Provides 30mA and 100mA rated sensitivity options to meet different protection needs.

● Rated breaking capacity: Provides high breaking capacity of 6kA to effectively handle electrical faults.

● Insulation voltage: Provides 500V insulation voltage, safe and reliable.

● Rated frequency: supports rated frequency of 50/60Hz, compatible with standard electrical systems.

● Rated pulse withstand voltage (1.2/50): Provides a rated pulse withstand voltage of 6kV to enhance surge protection.

● Pollution level: The design pollution level is level 2, suitable for various environmental conditions.

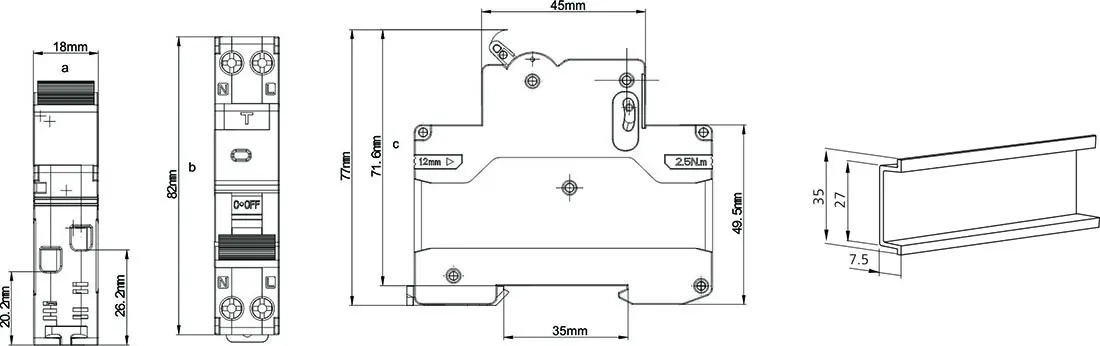

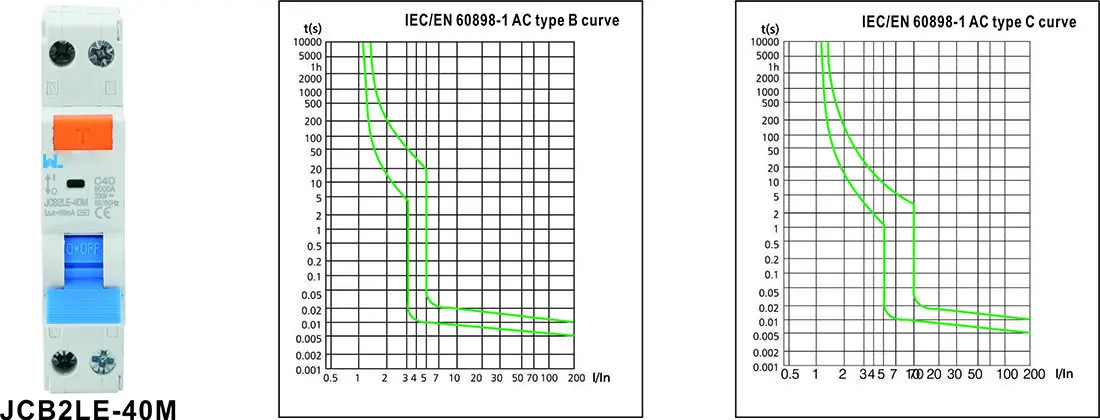

● Thermomagnetic release characteristics: B-curve, C-curve and D-curve options are provided to meet specific application requirements.

● Mechanical life: Mechanical life of 20,000 times, ensuring long-term reliability and durability.

● Electrical Life: Provides 2000 cycles of electrical life, demonstrating consistent performance over time.

● Protection level: With IP20 protection level, it provides protection against solid objects and limited waterproof protection.

● Ambient temperature: Suitable to operate at ambient temperatures from -5°C to +40°C, adapting to different environments.

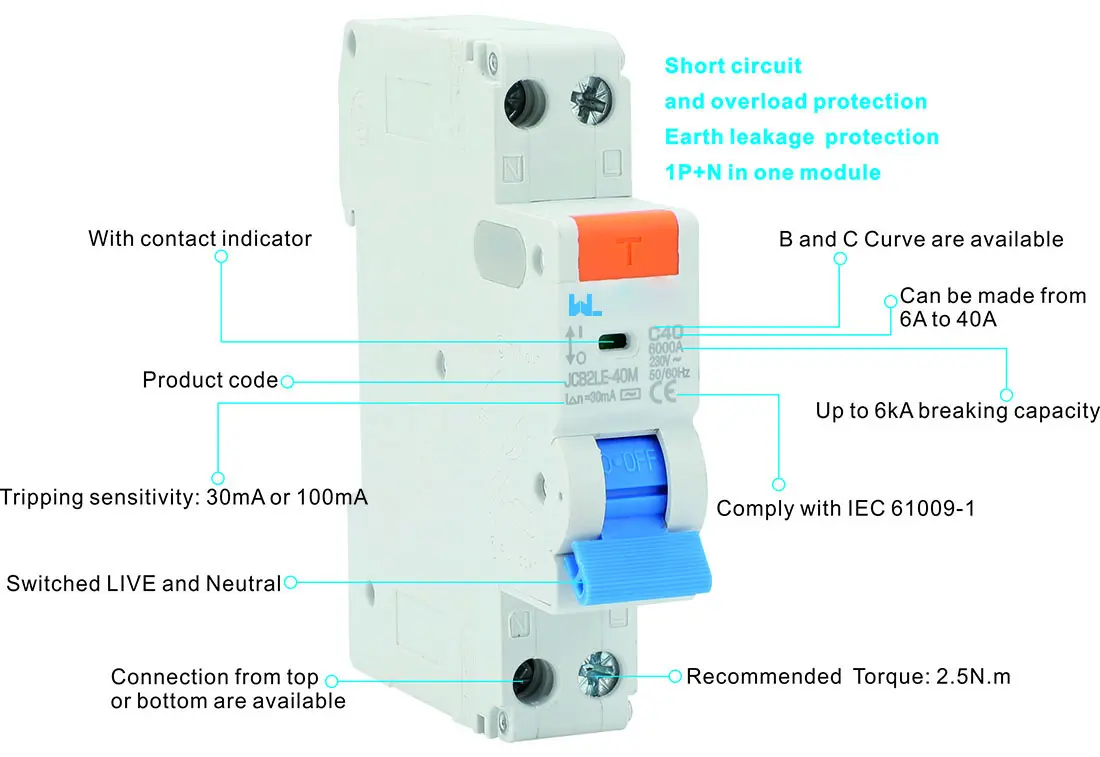

● Contact position indicator: Equipped with contact position indicator, green means OFF, red means ON, the status indication is clear at a glance.

● Terminal connection type: supports cable, U-shaped busbar, pin-type busbar connection, flexible installation.

● Installation: Easily mounts on DIN rail EN 60715 (35mm) using the quick clamp device, simplifying installation and ensuring a secure installation.

● Recommended torque: A recommended torque of 2.5Nm is provided to ensure correct installation and secure connection.

● Connection method: Flexible connection from top or bottom for easy installation and maintenance.
