RCBO

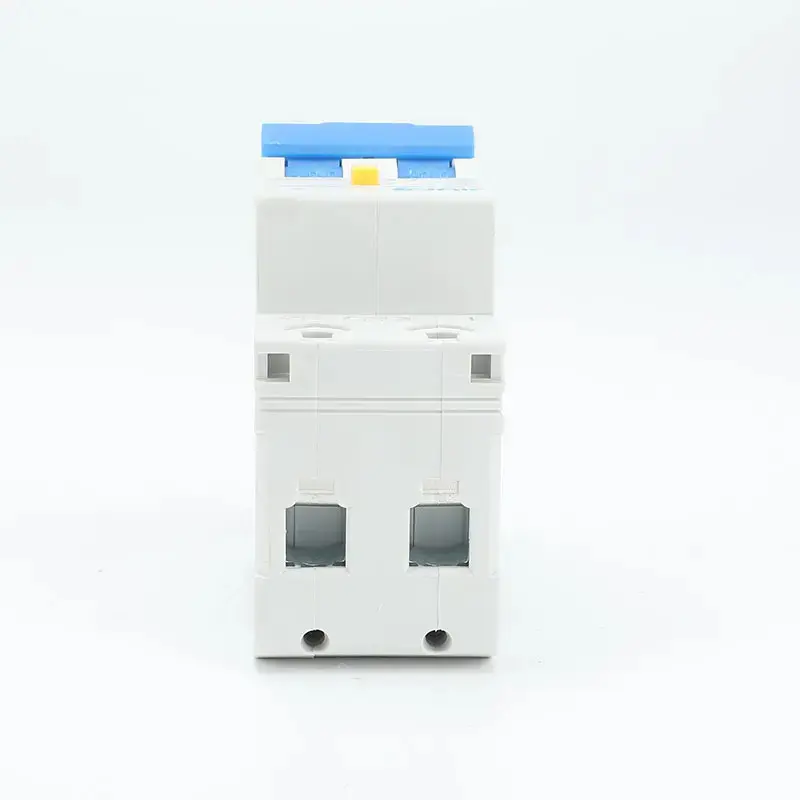

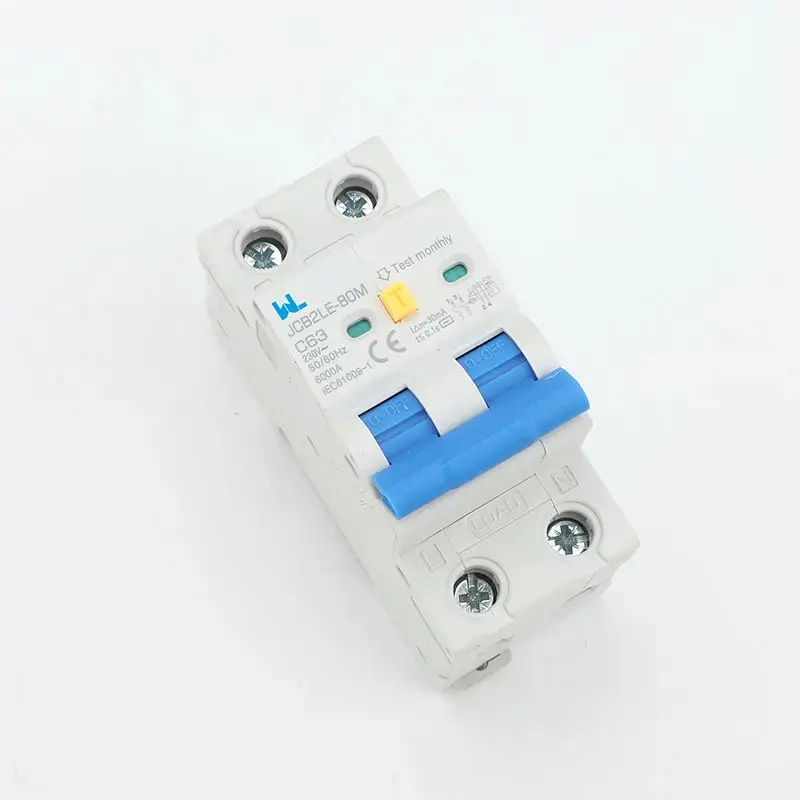

RCBO Residual Current Circuit Breaker With Over Current and Leakage protection，Differential circuit breaker JCB2LE-80M 2 Pole

The JCB2LE-80M RCBOs (residual current circuit breaker with overload protection) are suitable for consumer units or distribution boards, applied under occasions such as industrial, and commercial, high-rise buildings and residential houses.

Differential circuit breaker
Electronic Type
Residual current protection
Overload and short circuit protection
Breaking capacity 6kA, it can be upgraded to 10kA
Rated current up to 80A (available from 6A to 80A)
Available in B Curve or C tripping curves.
Tripping sensitivity: 30mA,100mA, 300mA
Type A or Type AC are available
Double pole switching for complete isolation of faulty circuits
Neutral pole switching significantly reduces the installation and commissioning test time
Complies with IEC 61009-1, EN61009-1

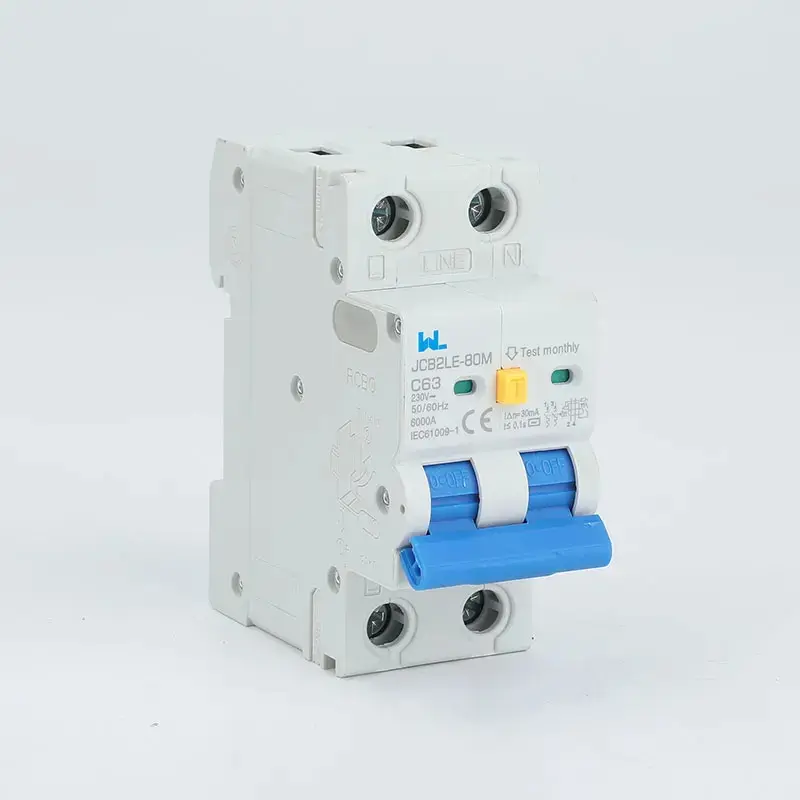

Product Details

Introduction

JCB2LE-80M RCBO (residual current circuit breaker with overload protection) provides protection against earth faults, overloads, short circuits. They are suitable for consumer units or distribution boards, applied under occasions such as industrial, and commercial, high-rise buildings and residential houses.

JCB2LE-80M RCBO is more safe with both disconnected neutral and phase guarantees its proper actuation against earth leakage faults even when the neutral and phase are wrongly connected.

JCB2LE-80M is a electronic type RCBO, which incorporates a filtering device preventing the risks of unwanted due to transient voltages and Transient currents.

JCB2LE-80M RCBOs feature dual pole switching with live and neutral disconnection. Available as Type AC (for alternating current only) or Type A (for alternating and pulsating DC currents)

JCB2LE-80M RCBO in 2 pole and 1P+N is a high-quality residual current circuit breaker and miniature circuit breaker combination with line voltage-dependent tripping and a wide variety of rated tripping currents. The built-in electronics precisely monitors where the currents flow. The difference between harmless and critical residual currents will be detected.

JCB2LE-80M RCBO provides indirect protection to the operator’s body under such a situation that the exposed live parts should be connected to a proper earth pole. It also provides overcurrent protection to circuits in the household, commercial, and other similar installations. Moreover, it prevents potential fire danger caused by earth fault current in case the overcurrent protection device fails.

JCB2LE-80M RCBO has a 6kA rating ideal for commercial and residential applications. The RCD/MCB combo will protect property and life should current be detected leaking to earth within 30mA. The switch has an inbuilt test switch and is easily reset after the fault is rectified.

Product Description

1-26eff

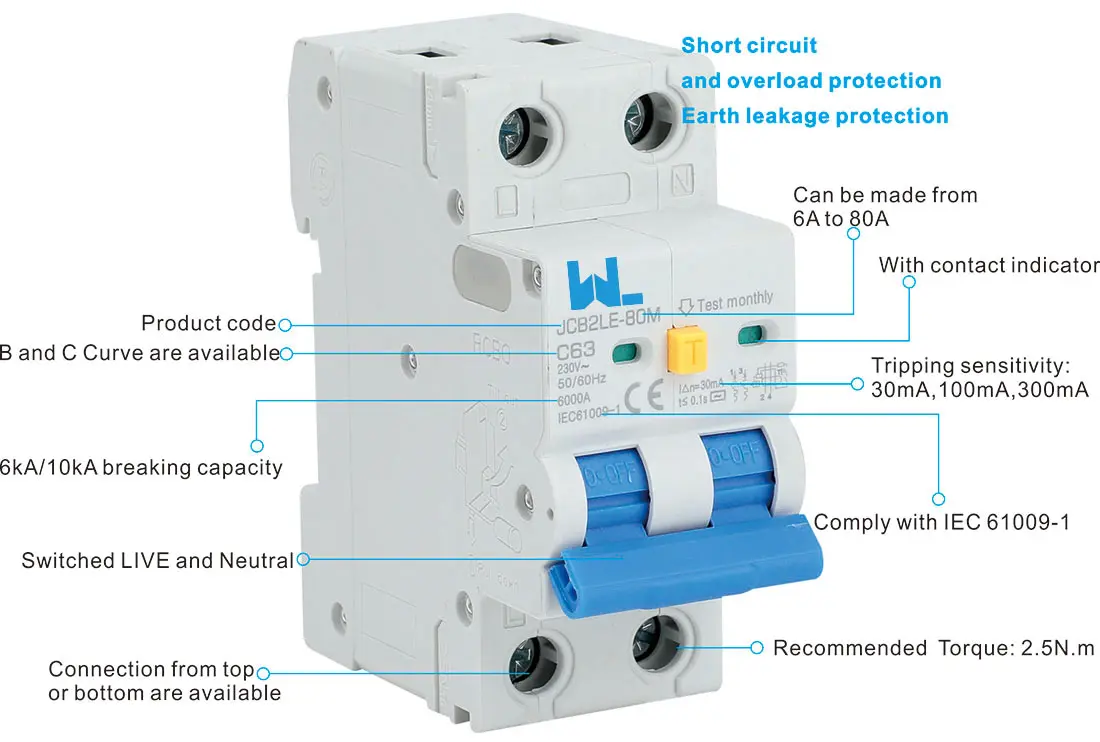

Main Features

● Electronic type: JCB2LE-80M RCBO is designed with electronic technology to ensure that the protection circuit is accurate and reliable.

● Leakage Protection: RCBO provides effective ground fault protection, reducing the risk of electrical hazards and ensuring safety in a variety of applications.

● Overload and short circuit protection: In addition to leakage protection, RCBO also protects against overload and short circuit, preventing damage to electrical systems and equipment.

● Non-Line/Load Sensitive: RCBO is non-linear/load sensitivity ensures consistent and effective protection regardless of specific electrical conditions.

● Breaking capacity: RCBO is breaking capacity is up to 6kA, which can be upgraded to 10kA, providing strong protection against high fault currents.

● Current Rating: RCBO is available in a variety of current rating options from 6A to 80A to meet various electrical load requirements in industrial, commercial and residential environments.

● Trip sensitivity and type: Trip sensitivity options of 30mA, 100mA and 300mA, as well as the availability of Type A or AC, allow protection to be tailored to specific needs.

● TRUE DOUBLE POLAR BREAKING: The RCBO features true bipolar breaking, which disconnects live and neutral conductors during fault current conditions and overloads for enhanced safety and protection.

● Installation flexibility: RCBO offers installation flexibility with insulated openings for easy busbar installation, 35mm DIN rail mounting and the choice of top or bottom line connections, ensuring easy installation in a variety of configurations.

● Compatibility and compliance: RCBO is compatible with many types of combination head screwdrivers, meets ESV additional testing and verification requirements, and complies with IEC 61009-1 and EN61009-1 standards to ensure reliability and safety in line with industry regulations.

Technical Data

● Standards: JCB2LE-80M RCBO complies with IEC 61009-1 and EN61009-1 standards, ensuring that it meets the necessary safety and performance requirements for electrical protection devices.

● Type: RCBO is electronic, using advanced electronic technology to provide precise and reliable protection against ground faults, overloads and short circuits.

● Number of poles: Available in 2-pole and 1P+N configurations, providing installation flexibility and compatibility with a variety of electrical systems.

● Rated current and voltage: RCBO has a variety of rated currents to choose from, from 6A to 80A, and rated operating voltages of 110V, 230V, 240V~ (1P+N) to meet different power load requirements and system configurations.

● Sensitivity and breaking capacity: RCBO has rated sensitivities of 30mA, 100mA and 300mA and a rated breaking capacity of 6kA, providing customizable protection against different levels of fault current and leakage.

● Insulation and impulse withstand voltage: RCBO has an insulation voltage of 500V and a rated impulse withstand voltage of 6kV, ensuring reliable operation and protection against surges and transients.

● Mechanical and Electrical Life: RCBO is designed with durability in mind, with a mechanical life of 10,000 times and an electrical life of 2000 times, ensuring long-term reliability and performance.

● Protection level and ambient temperature: RCBO protection level is IP20, suitable for indoor use, can work in the ambient temperature range of -5℃ to +40℃, and is suitable for a wide range of environmental conditions.

● Contact position indicator and terminal connection: RCBO has a contact position indicator with green for OFF and red for ON, providing intuitive status indication and flexible terminal connection types, including cables, U-shaped busbars, and pin busbars .

● Installation and torque: RCBO can be installed on DIN rail EN 60715 (35mm) using a quick clamp device, a torque of 2.5Nm is recommended to ensure safe and reliable installation.

● Connections: RCBO offers the flexibility of wiring from the top or bottom and can be easily installed in a variety of configurations.

	Standard	IEC61009-1 , EN61009-1
Electrical features	Rated current In (A)	6, 10, 16, 20, 25, 32, 40,50,63,80
	Type	Electronic
	Type (wave form of the earth leakage sensed)	A or AC are available
	Poles	2 Pole
	Rated voltage Ue(V)	230/240
	Rated sensitivity I△n	30mA,100mA,300mA are available
	Insulation voltage Ui (V)	500
	Rated frequency	50/60Hz
	Rated breaking capacity	6kA
	Rated impulse withstand voltage(1.2/50) Uimp (V)	6000
	Pollution degree	2

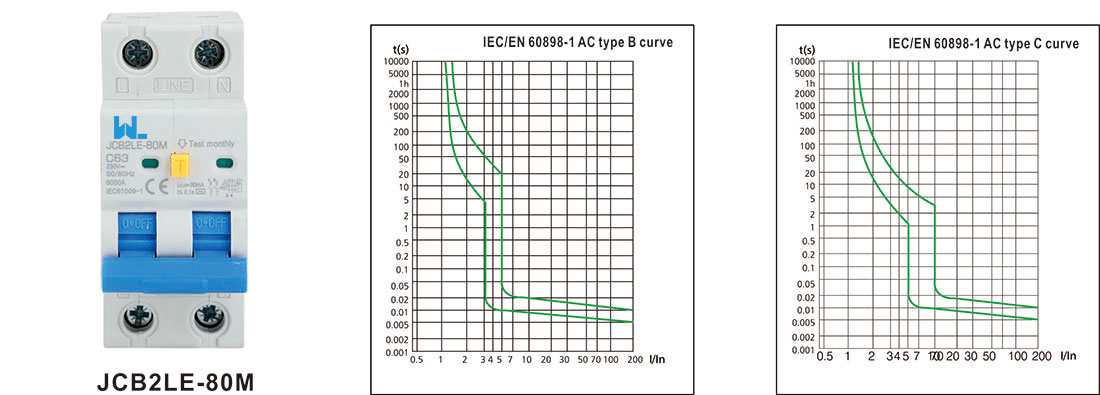

	Thermo-magnetic release characteristic	B, C
Mechanical features	Electrical life	2, 000
	Mechanical life	10, 000
	Contact position indicator	Yes
	Protection degree	IP20
	Reference temperature for setting of thermal element(℃)	30
	Ambient temperature (with daily average ≤35℃)	-5...+40
	Storage temperation (℃)	-25...+70
Installation	Terminal connection type	Cable/U-type busbar/Pin-type busbar
	Terminal size top/bottom for cable	25mm² / 18-3 AWG
	Terminal size top/bottom for Busbar	10mm² / 18-8 AWG
	Tightening torque	2.5 N*m / 22 In-Ibs.

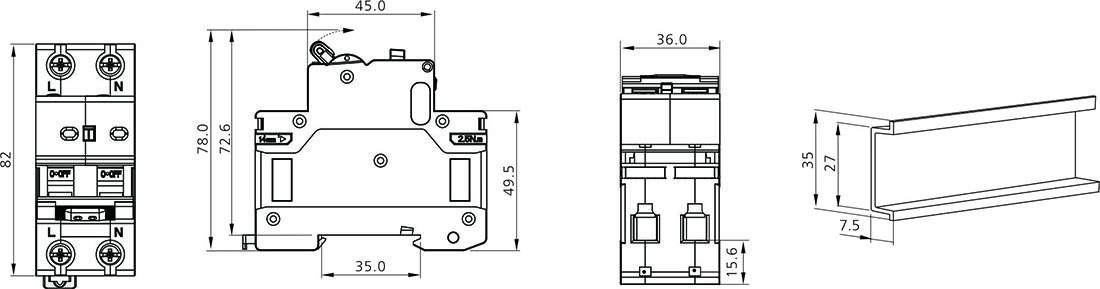

	Mounting	On DIN rail EN 60715 (35mm) by means of fast clip device
	Connection	From top or bottom are available

2-25bpe

RCBO (Residual Current Breaker with Over-Current) is an important electrical protection device that combines the functions of a miniature circuit breaker (MCB) and a residual current device (RCD). This integration enables the RCBO to provide comprehensive protection against two types of electrical faults: residual current (leakage) and overcurrent.

Residual current, or leakage, occurs when a circuit is accidentally interrupted due to factors such as poor electrical wiring or a DIY accident. For example, drilling through a cable when installing a picture hook or accidentally cutting it with a lawnmower can cause leakage. In this case, the electrical current will seek the path of least resistance, possibly through a lawn mower or drill, and reach the body, creating a risk of electrocution.

On the other hand, overcurrent comes in two forms: overload and short circuit. Overloading occurs when a circuit is burdened with too many power-hungry devices that exceeds the capacity of the cable. A short circuit, on the other hand, is caused by a direct connection between a live conductor and a neutral conductor, causing a rapid surge of current that can be very dangerous.

While conventional RCDs only protect against leakage, MCBs protect against overcurrent, and RCBOs provide complete protection against both types of faults. By detecting and responding to residual current and overcurrent conditions, RCBOs play a key role in ensuring electrical safety in a variety of applications, including residential, commercial and industrial environments.
