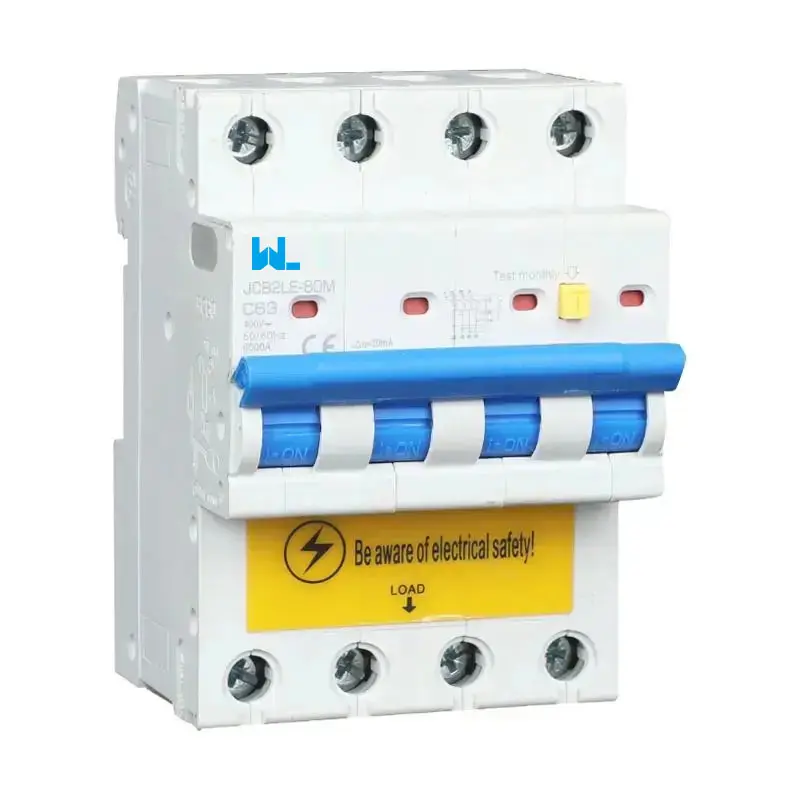

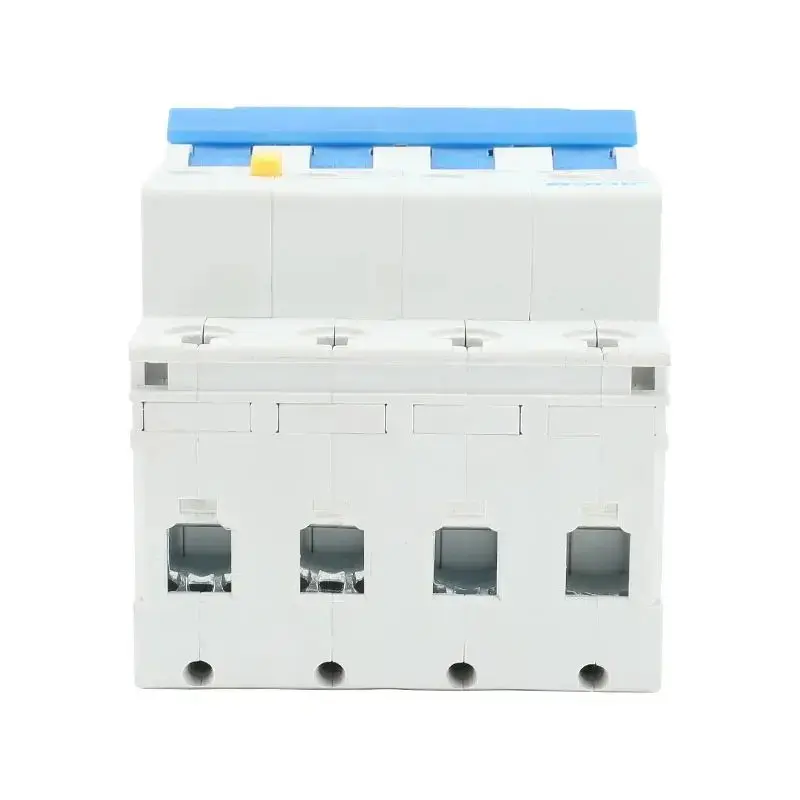

Residual Current Circuit Breaker JCB2LE-80M4P 4 Pole RCBO 6kA

The JCB2LE-80M RCBOs (residual current circuit breaker with overload protection) are suitable for consumer units or distribution boards, applied under occasions such as industrial, and commercial, high-rise buildings and residential houses.
Electronic Type
Residual current protection
Overload and short circuit protection
Breaking capacity 6kA
Rated current up to 80A (available from 6A to 80A)
Available in B Curve or C tripping curves.
Tripping sensitivity: 30mA,100mA,300mA
Type A or Type AC are available
Double pole switching for complete isolation of faulty circuits
Neutral pole switching significantly reduces the installation and commissioning test time
Complies with IEC 61009-1, EN61009-1

Product Details

Introduction

JCB2LE-80M4P RCBO combines RCD and MCB protection in a 4 module wide device and is operating for unbalanced loads and balanced loads, 3 phase protection in DIN rail distribution box.

JCB2LE-80M4P RCBO (Residual Current Circuit Breaker with Overload Protection) provides residual and overload protection in one neat device. The breaking capacity is up to 6kA. The rate current is up to 80Amps. It is available in 6A, 10A, 16A, 20A, 32A, 40A, 50A, 63A,80A. It is available in A type and AC type. Type AC RCBOs are used for general purpose on AC (Alternating Current) only circuits. Type A are used for DC (Direct Current) protection. Available in 30mA,100mA,300mA tripping sensitivity. Available in B, C ,D tripping curves.

JCB2LE-80M4P RCBO is commonly used in applications where there is the need to combine protection against overcurrents (overload and short-circuit) and protection against earth leakage currents. They help in sensing this kind of faults and trip the circuit ensuring complete protection of the people and connected equipment

JCB2LE-80M4P RCBO is purposed to protect one from the risk of electrical shocks, firesand electrocution. It can also assist in sudden earth faults. The installation of an JCB2LE-80M4P RCBO ensures that a circuit trips immediately and protects you from electric shock.

JCB2L3-80M4P comply with IEC 61009-1, EN61009-1 standard.

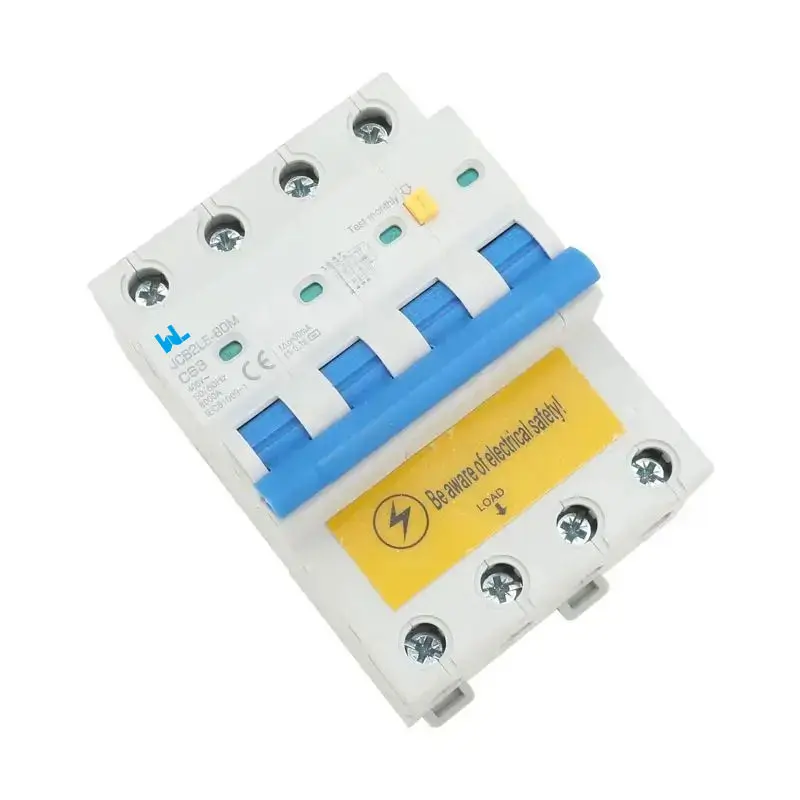

Product Description

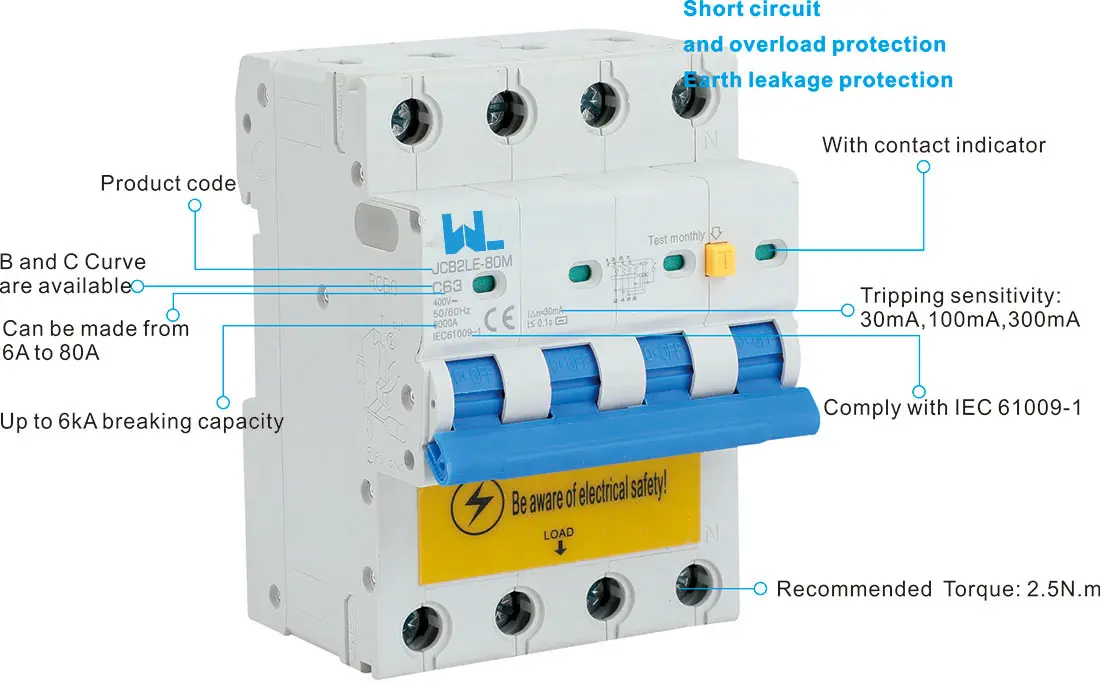

1-27n8m

Main Features

● Electronic 4-pole

● Leakage Protection

● Overload and short circuit protection

● Non-linear/load sensitive

● Breaking capacity up to 6kA

● Rated current up to 80A (available in 6A, 10A, 20A, 25A, 32A, 40A, 50A, 63A, 80A)

● Provide B-type and C-type tripping curves

● Trip sensitivity: 30mA, 100mA, 300mA

● Type A or AC available

● Insulated openings facilitate busbar installation

● 35mm DIN rail mounting

● Compatible with many types of combination head screwdrivers

● Meet ESV's additional testing and verification requirements for RCBO

● Comply with IEC 61009-1, EN61009-1

The electronic 4-pole RCBO offers comprehensive functionality to ensure strong electrical protection. It features leakage protection, overload and short-circuit protection, and non-linearity/load sensitivity designed to protect against a wide range of electrical faults. Breaking capabilities up to 6kA and current ratings up to 80A (available in various amperages) make them suitable for a variety of applications.

RCBO has B-type and C-type tripping curves to choose from, and the tripping sensitivity has three options: 30mA, 100mA, and 300mA, which can meet different requirements. Additionally, it offers the flexibility of Type A or AC configurations to meet specific circuit needs.

The design includes insulated openings for easy busbar installation and 35mm DIN rail mounting, ensuring easy and safe installation. In addition, it is compatible with many types of double-ended screwdrivers, simplifying maintenance and upkeep.

The device meets ESV's additional testing and validation requirements for RCBOs to ensure compliance with industry standards, including IEC 61009-1 and EN61009-1, providing safety and performance assurance.

Technical Data

● Standard: IEC 61009-1, EN61009-1

● Type: Electronic

● Type (detected leakage waveform): A or AC available

● Number of poles: 4 poles

● Rated current: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A

● Rated working voltage: 400V, 415V AC

● Rated sensitivity I△n: 30mA, 100mA, 300mA

● Rated breaking capacity: 6kA

● Insulation voltage: 500V

● Rated frequency: 50/60Hz

● Rated impulse withstand voltage (1.2/50): 6kV

● Pollution level: 2

● Thermomagnetic release characteristics: B curve, C curve, D curve

● Mechanical life: 10,000 times

● Electrical life: 2000 times

● Protection level: IP20

● Ambient temperature (daily average ≤35℃): -5℃~+40℃

● Contact position indicator: green = closed, red = open

● Terminal connection type: cable/U-shaped busbar/pin busbar

● Installation: Mounting on DIN rail EN 60715 (35mm) via quick clamp device

● Recommended torque: 2.5Nm

● Connection method: can be connected from the top or bottom

Electronic RCBOs are designed to comply with a comprehensive set of technical specifications to ensure reliable and safe operation in a variety of electrical installations. It complies with IEC 61009-1 and EN61009-1 standards and complies with international safety and performance standards.

The 4-pole RCBO has a rated current range from 6A to 80A and is suitable for rated operating voltages from 400V to 415V AC. It offers rated sensitivity options of 30mA, 100mA and 300mA to ensure effective protection against ground leakage currents.

The RCBO has a rated breaking capacity of 6kA, an insulation voltage of 500V and is designed to withstand electrical stresses and impulses. Pollution level 2, suitable for use in various environments.

The device is equipped with thermomagnetic release characteristics in B-curve, C-curve and D-curve options, providing flexibility to meet specific application requirements. The mechanical life span reaches 10,000 times and the electrical life span reaches 2,000 times, ensuring long-term reliability.

The RCBO has an IP20 protection rating, which provides adequate protection against solid objects but limited protection against water intrusion. Its designed working environment temperature range is -5℃ to +40℃, suitable for a variety of working conditions.

RCBO is available in a variety of terminal connection types, including cable, U-busbar and pin-type busbar, and can be mounted on DIN rail EN 60715 (35mm) using quick-clamp devices. The recommended installation torque is 2.5Nm, and it can be flexibly connected from the top or bottom for easy installation and maintenance.

	Standard	IEC61009-1 , EN61009-1
Electrical features	Rated current In (A)	6, 10, 16, 20, 25, 32, 40,50,63,80
	Type	Eletronic
	Type (wave form of the earth leakage sensed)	A or AC are available
	Poles	4 Pole
	Rated voltage Ue(V)	230/240
	Rated sensitivity I△n	30mA,100mA,300mA
	Insulation voltage Ui (V)	500
	Rated frequency	50/60Hz
	Rated breaking capacity	6kA
	Rated impulse withstand voltage(1.2/50) Uimp (V)	6000
	Pollution degree	2
	Thermo-magnetic release characteristic	B, C
Mechanical features	Electrical life	2, 000
	Mechanical life	10, 000
	Contact position indicator	Yes
	Protection degree	IP20
	Reference temperature for setting of thermal element(℃)	30
	Ambient temperature (with daily average ≤35℃)	-5...+40
	Storage temperation (℃)	-25...+70
Installation	Terminal connection type	Cable/U-type busbar/Pin-type busbar
	Terminal size top/bottom for cable	25mm² / 18-4 AWG
	Terminal size top/bottom for Busbar	10mm² / 18-8 AWG
	Tightening torque	2.5 N*m / 22 In-Ibs.
	Mounting	On DIN rail EN 60715 (35mm) by means of fast clip device
	Connection	From top

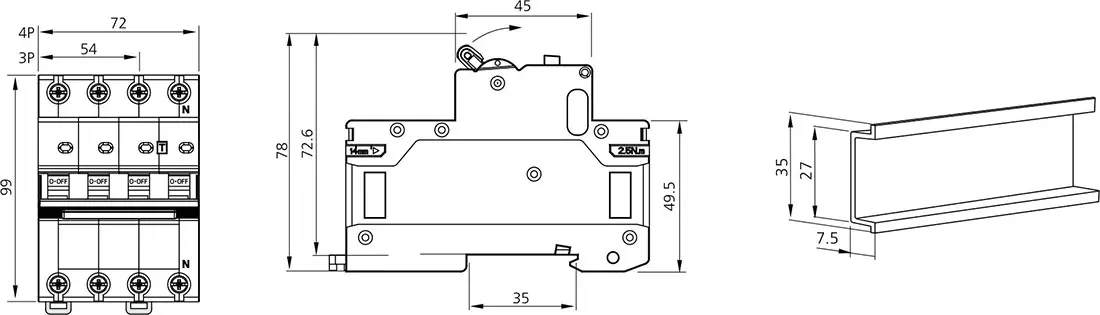

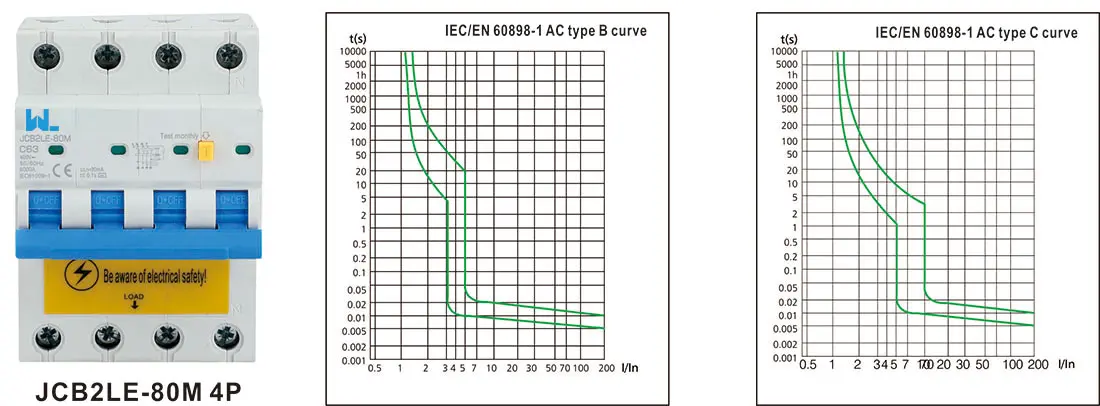

2-26emy

Respect the environment – comply with EU directives:

In addition to complying with Directive 2002/95/EC of January 27, 2003 (known as "RoHS"), this directive restricts the use of hazardous substances such as lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB) and polybrominated compounds. Phenyl ether (PBDE) brominated flame retardants, our commitment to environmental responsibility extends to compliance with Directive 91/338/EEC of 18 June 1991 and Decree No. 94-647 of 27 June 2007.

We ensure that our MCCB production lines comply with these directives, demonstrating our commitment to sustainable and environmentally friendly manufacturing practices. By complying with these regulations, we contribute to protecting the environment and the health and safety of our customers and communities. Our commitment to environmental compliance is evident in every aspect of our production process, from material sourcing to manufacturing and distribution.
