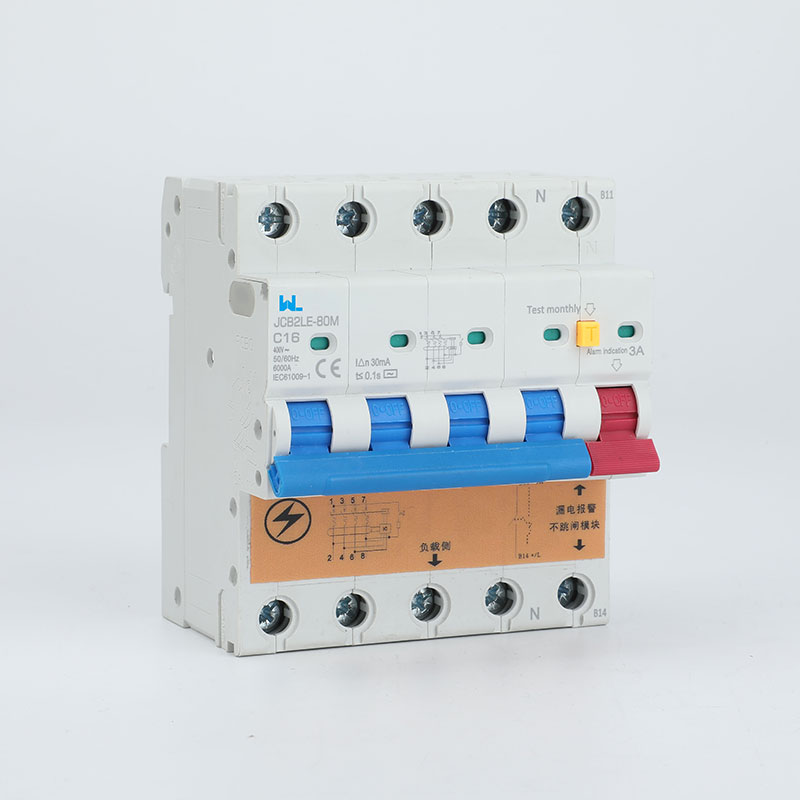

RCBO With Alarm 6kA Safety Switch Circuit Breaker JCB2LE-80M4P+A 4 Pole

The JCB2LE-80M RCBOs (residual current circuit breaker with overload protection) are suitable for consumer units or distribution boards, applied under occasions such as industrial, and commercial, high-rise buildings and residential houses.
Electronic Type
Residual current protection
Overload and short circuit protection
Breaking capacity 6kA
Rated current up to 80A (available from 6A to 80A)
Available in B Curve or C tripping curves.
Tripping sensitivity: 30mA,100mA,300mA
Type A or Type AC are available
Double pole switching for complete isolation of faulty circuits
Neutral pole switching significantly reduces the installation and commissioning test time
Complies with IEC 61009-1, EN61009-1

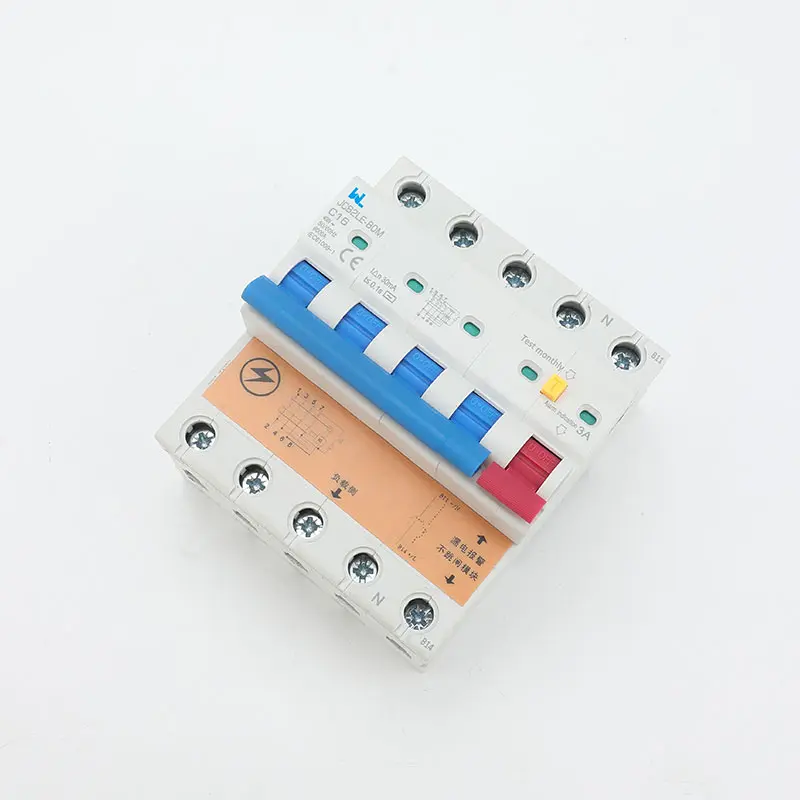

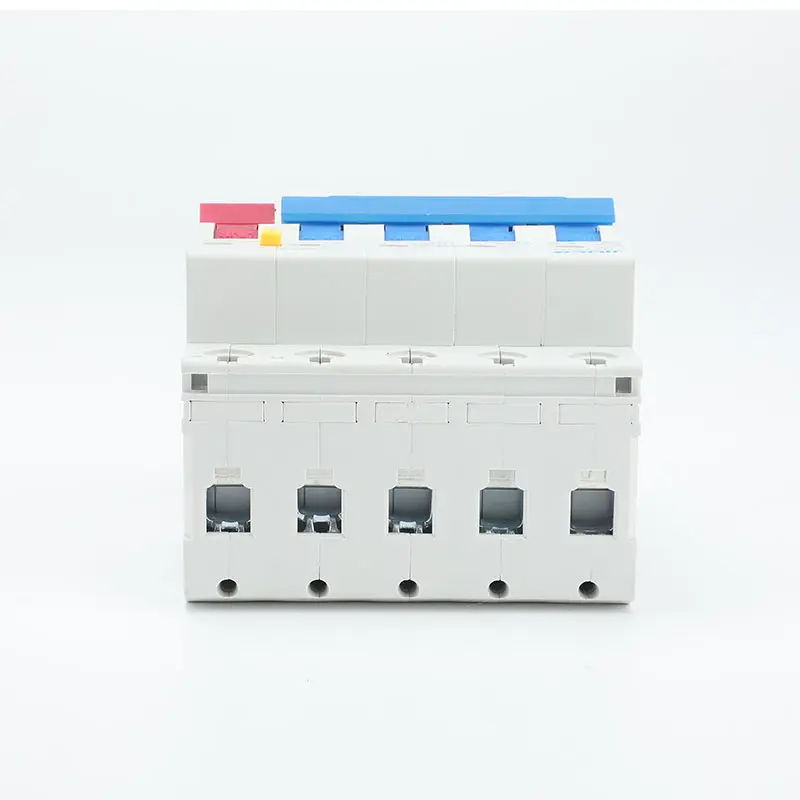

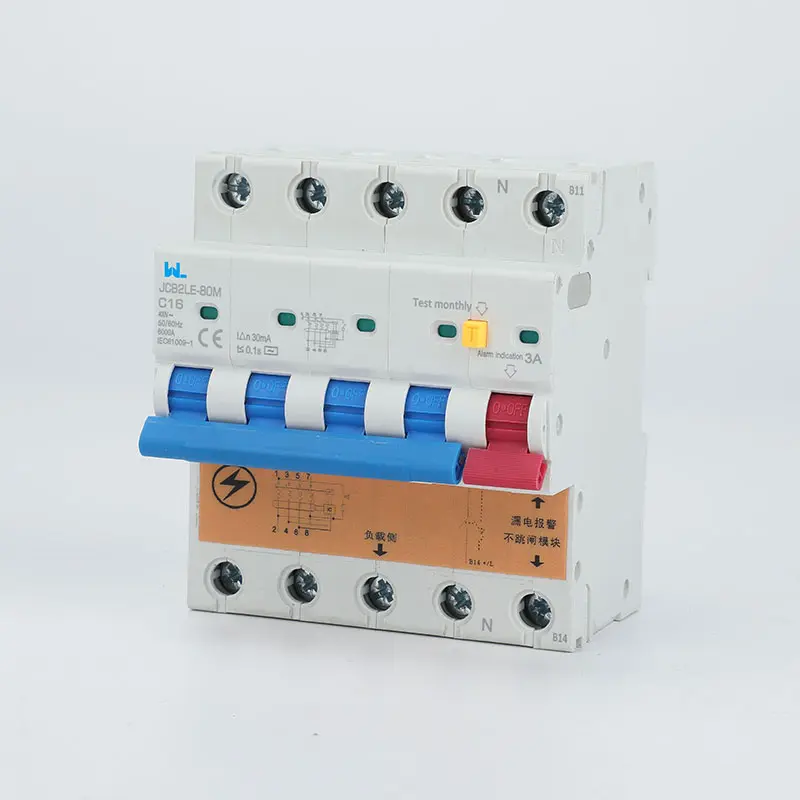

Product Details

Introduction

The JCB2LE-80M RCBOs (residual current circuit breaker with overload protection) with Alarm are suitable for circuit monitoring, it is convenient for customer to check earth fault and make you more safety.

Provides protection against earth fault/leakage current and function of isolation.

High short-circuit current withstand capacity.

Fire resistant plastic parts endures abnormal heating and strong impact.

Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity.

Independent of power supply and line voltage, and free from external interference, voltage fluctuation.

I∆n ≤ 30 mA: additional protection in the case of direct contact
I∆n ≤300 mA: preventative fire protection in the case of ground

AC Type – Tripping is ensured for sinusoidal, alternating currents, whether they be quickly applied or slowly increase.

A Type – Tripping is ensured for sinusoidal, alternating residual currents as well as for pulsed DC residual currents, whether they be quickly applied or slowly increase.

Product Description

1-280z1

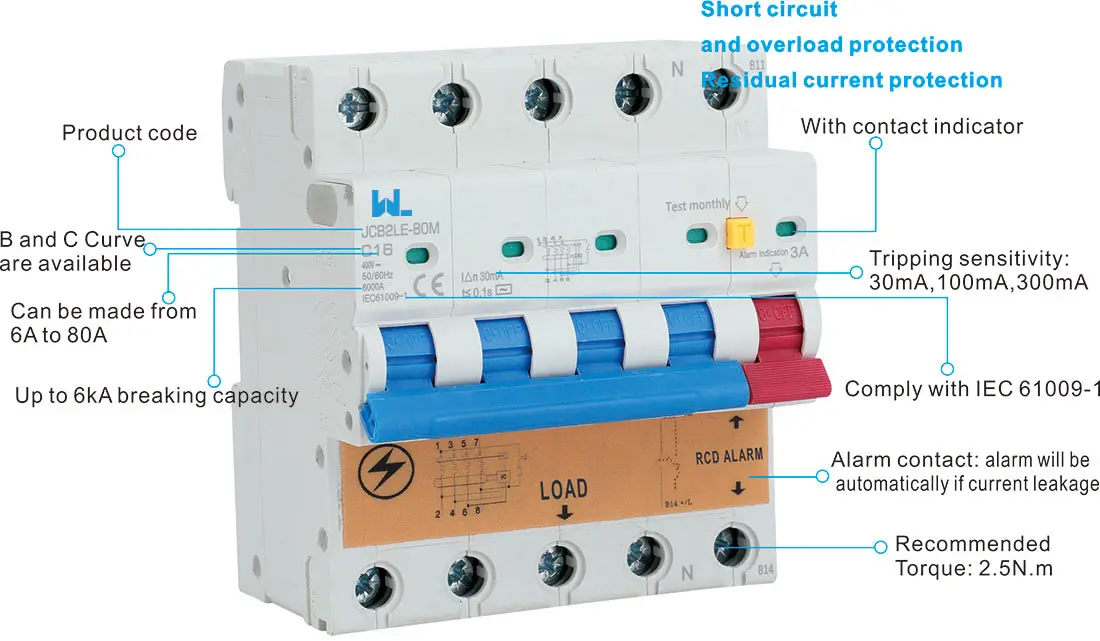

Main Features

● Electronic 4-pole for full protection

● Leakage protection to improve safety

● Overload and short circuit protection, reliable performance

● Non-linear/load sensitive, suitable for many applications

● Breaking capacity up to 6kA, providing strong protection

● Rated current up to 80A, with multiple options from 6A to 80A

● Provides Type B and Type C tripping curves for flexibility

● Trip sensitivity: 30mA, 100mA, 300mA for customized protection

● Type A or AC variants to suit different needs

● Insulated openings facilitate busbar installation, ensuring convenience

● 35mm DIN rail installation, easy and safe installation

● Compatible with various types of combination head screwdrivers for easy installation and maintenance

● Meet ESV's additional testing and verification requirements for RCBO to ensure compliance with industry standards

● Comply with IEC 61009-1, EN61009-1 safety and performance guarantee

Together, these features make the JCB2LE-80M RCBO a versatile and reliable choice for a variety of applications, providing comprehensive protection and meeting strict industry standards.

Technical Data

● Standard: Comply with IEC 61009-1, EN61009-1 industry standard performance and safety

● Type: Electronic, ensuring advanced functionality and reliability

● Type (Detected Leakage Waveform): Available in A or AC variants, providing flexibility for different applications

● Number of poles: 4 poles + 1 pole alarm, providing comprehensive protection and monitoring capabilities

● Rated current: multiple options from 6A to 80A to meet different power needs

● Rated working voltage: 400V, 415V ac to ensure compatibility with common electrical systems

● Rated sensitivity I△n: 30mA, 100mA, 300mA, providing customizable protection levels

● Rated breaking capacity: 6kA, providing strong overload and short circuit protection

● Insulation voltage: 500V to ensure safe and reliable operation

● Rated frequency: 50/60Hz, suitable for various electrical systems

● Rated impulse withstand voltage (1.2/50): 6kV, providing surge voltage protection

● Pollution level: 2, indicating suitable for various environmental conditions

● Thermomagnetic release characteristics: B curve, C curve, D curve to meet different application needs

● Mechanical life: 10,000 times, ensuring long-term durability and reliability

● Electrical life: 2000 cycles, providing consistent performance over an extended period of time

● Protection level: IP20, providing protection against solid objects and limited liquid ingress

● Ambient temperature (daily average ≤35℃): -5℃~+40℃, suitable for a variety of working environments

● Contact position indicator: green = closed, red = open, providing clear visual indication of circuit status

● Terminal connection type: cable/U-shaped busbar/pin busbar, providing multiple installation options

● Installation: Installed on DIN rail EN 60715 (35mm) through quick clamp device to ensure safe and convenient installation

● Recommended torque: 2.5Nm, helps with correct and secure connection

● Connection: Can be connected from top or bottom, providing flexibility in installation configurations

	Standard	IEC61009-1 , EN61009-1
Electrical features	Rated current In (A)	6, 10, 16, 20, 25, 32, 40,50,63,80
	Type	Eletronic
	Type (wave form of the earth leakage sensed)	A or AC are available
	Poles	4 Pole
	Rated voltage Ue(V)	230/240
	Rated sensitivity I△n	30mA,100mA
	Insulation voltage Ui (V)	500
	Rated frequency	50/60Hz
	Rated breaking capacity	6kA
	Rated impulse withstand voltage(1.2/50) Uimp (V)	6000
	Pollution degree	2

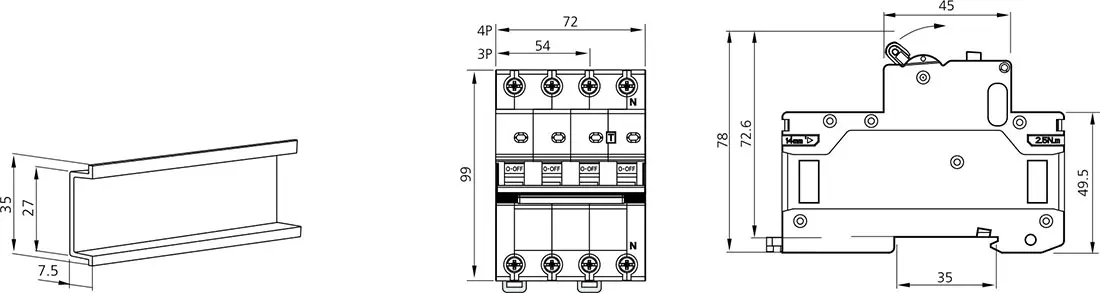

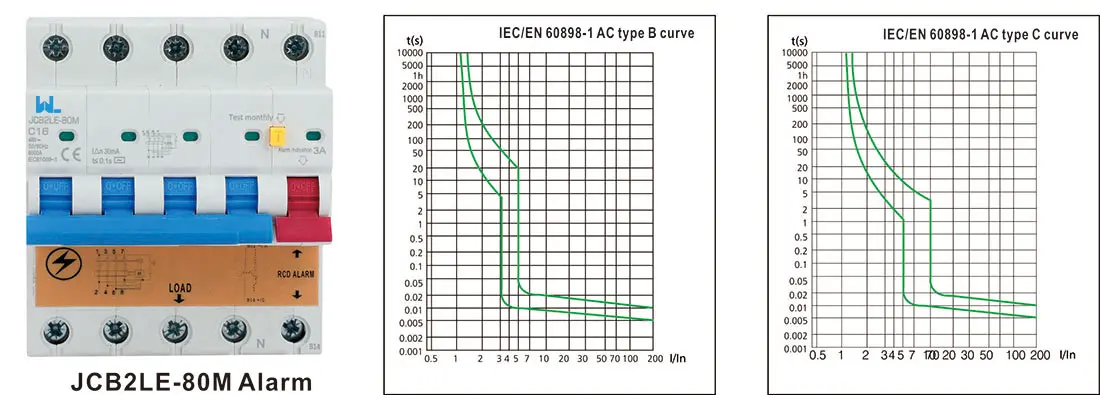

	Thermo-magnetic release characteristic	B, C
Mechanical features	Electrical life	2, 000
	Mechanical life	2, 000
	Contact position indicator	Yes
	Protection degree	IP20
	Reference temperature for setting of thermal element(℃)	30
	Ambient temperature (with daily average ≤35℃)	-5…+40
	Storage temperation (℃)	-25…+70
Installation	Terminal connection type	Cable/U-type busbar/Pin-type busbar
	Terminal size top/bottom for cable	25mm2 / 18-4 AWG
	Terminal size top/bottom for Busbar	10mm2 / 18-8 AWG
	Tightening torque	2.5 N*m / 22 In-Ibs.
	Mounting	On DIN rail EN 60715 (35mm) by means of fast clip device
	Connection	From top or bottom are available
