RCBO

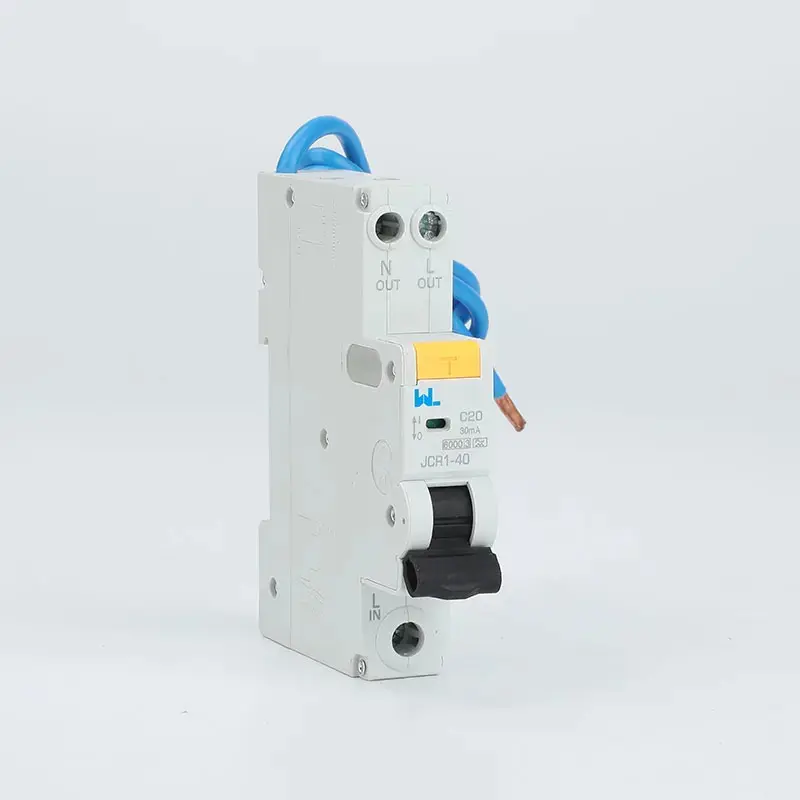

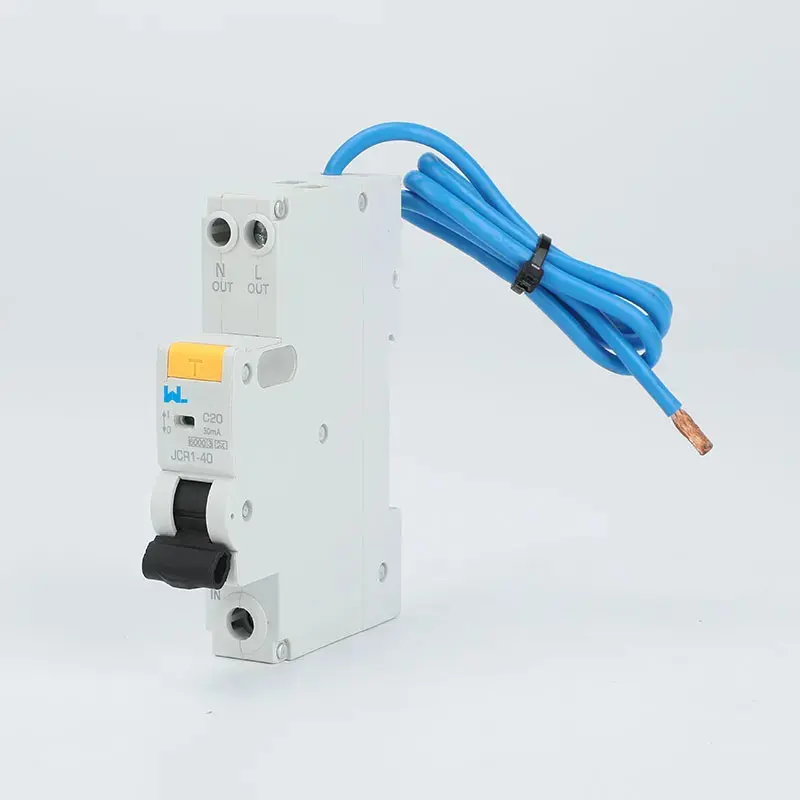

RCBO with Switched Live and Neutral JCR1-40 Single Module Mini 6kA

The JCR1-40 RCBOs (residual current circuit breaker with overload protection) are suitable for consumer units or distribution boards, applied under occasions such as industrial, and commercial, high-rise buildings and residential houses.
Electronic Type
Residual current protection
Overload and short circuit protection
Breaking capacity 6kA, it can be upgraded to 10kA
Rated current up to 40A (available from 6A to 40A)
Available in B Curve or C tripping curves.
Tripping sensitivity: 30mA,100mA, 300mA
Type A or Type AC are available
Switched Live and Neutral
Double pole switching for complete isolation of faulty circuits
Neutral pole switching significantly reduces the installation and commissioning test time
Complies with IEC 61009-1, EN61009-1

Product Details

Introduction

JCR1-40 RCBO provides protection against earth faults, overloads, short circuits and domestic installation. The RCBO with both disconnected neutral and phase guarantees its proper actuation against earth leakage faults even when the neutral and phase are wrongly connected.

JCR1-40 electronic RCBO incorporates a filtering device preventing the risks of unwanted due to transient voltages and transient currents;

JCR1-40 RCBO's combine the overcurrent functions of an MCB with the earth fault functions of an RCD in a single unit.

JCR1-40 RCBO, which does the job of both an RCD and MCB, thus prevents this type of nuisance tripping and should be used on mission critical circuits.

JCR1-40 miniature RCBO's provide more wiring space in the enclosure for the installer making the whole installation process easier and quicker. During installation, resistance testing live and neutral conductors do not have to be disconnected. Now with an increased level of safety these JCR1-40 RCBO’s include switched neutral as standard. A faulty or damaged circuit is fully isolated by disconnecting the live and neutral conductors. Healthy circuits remain in service, only the faulty circuit is switched off. This avoids danger and prevents inconvenience in the event of a fault.

Type AC RCBOs are used for general purpose on AC (Alternating Current) only circuits. Type A are used for DC (Direct Current) protection, these mini RCBOs provide both levels of protection.

The A Type JCR1-40 RCBO responds to both AC and pulsating DC residual currents. It protects against both overcurrents due to overload and fault and residual current earth leakage. In either event, the RCBO interrupts the electrical supply to the circuit thus preventing damage to the installation and devices and electric shock to humans.

B curve JCR1-40 RCBO trips between 3-5 times full load current is suited for domestic application. C curve JCR1-40 rcbo trips between 5-10 times full load current is suited for commercial applications where there is greater chance of higher short circuit currents, such as inductive loads or fluorescent lighting.

JCR1-40 Available in current ratings that range from 6A to 40A and in B and C type tripping curves.

JCR1-40 RCBO Complies with BS EN 61009-1, IEC 61009-1, EN 61009-1, AS/NZS 61009.1

Product Description

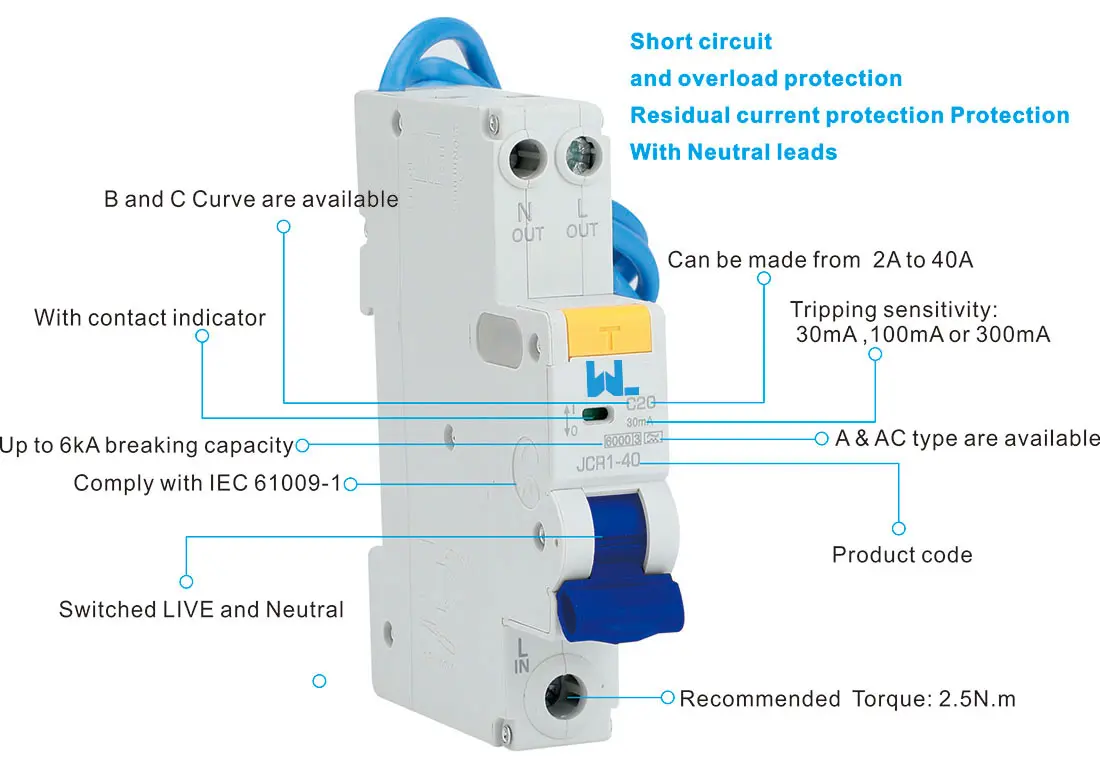

1-29jqh

The most important features

The JCR1-40 RCBO has many essential features, making it a reliable and versatile choice for a variety of electrical installations. Its high quality, functional design and easy installation process ensure it meets the needs of homes and similar applications. As an electronic RCBO, it has comprehensive protection functions for leakage, overload and short circuit, and the breaking capacity is up to 6kA.

The JCR1-40 RCBO is available in current ratings from 2A to 40A, with a variety of options available to meet a variety of electrical requirements. It is also available with B-curve or C trip curves, trip sensitivity options of 30mA and 100mA, and in Type A and AC configurations.

The RCBO implements true bipolar circuit breaking in a single module, as well as bipolar switching for complete isolation of fault circuits, ensuring enhanced safety and reliability. In addition, neutral pole switching significantly reduces installation and commissioning test times, while insulating openings facilitate busbar installation.

The JCR1-40 RCBO also features positive indication of on or off, 35mm DIN rail mounting and installation flexibility with optional top or bottom line connections. Its compatibility with many types of combination head screwdrivers further enhances its ease of use.

In addition, RCBO meets ESV additional testing and verification requirements and complies with international standards such as IEC 61009-1, EN61009-1 and AS/NZS 61009.1, ensuring its reliability and safety in various electrical installations. Together, these features make the JCR1-40 RCBO a trusted and efficient solution for a variety of electrical protection needs.

Technical Data

● Standards: IEC 61009-1, EN61009-1

● Type: Electronic

● Type (detected leakage waveform): A or AC to choose from

● Number of poles: 1P+N (1Mod)

● Rated current: 2A, 6A, 10A, 16A, 20A, 25A, 32A, 40A

● Rated working voltage: 110V, 230V~ (1P+N)

● Rated sensitivity I△n: 30mA, 100mA

● Rated breaking capacity: 6kA

● Insulation voltage: 500V

● Rated frequency: 50/60Hz

● Rated impulse withstand voltage (1.2/50): 6kV

● Pollution level: 2

● Thermal magnetic tripping characteristics: B curve, C curve, D curve

● Mechanical life: 20,000 times

● Electrical life: 2000 times

● Protection level: IP20

● Ambient temperature (daily average ≤35℃): -5℃~+40℃

● Contact position indicator: green = closed, red = open

● Terminal connection type: cable/U-shaped busbar/pin busbar

● Installation: Installed on DIN rail EN 60715 (35mm) through quick clamp device

● Recommended torque: 2.5Nm

● Connection method: connect from the bottom

JCR1-40 RCBO has expanded technical data designed to meet the highest safety and performance standards. The rated breaking capacity is 6kA and the rated current range is 2A to 40A, providing reliable protection for various electrical applications. Electronic RCBO is available in Type A and AC configurations, which can be flexibly adapted to different installation requirements.

The device has an insulation voltage of 500V, a rated impulse withstand voltage of 6kV, and a pollution level of Level 2, ensuring its adaptability in a variety of environmental conditions. Its thermal magnetic tripping characteristics include B curve, C curve and D curve, which can achieve accurate and effective circuit protection.

JCR1-40 RCBO is designed for extended service life, with a mechanical life of 20,000 operations and an electrical life of 2000 operations, ensuring consistent performance over an extended period of time. Its protection level is IP20 and the ambient temperature range is -5℃ to +40℃, making it suitable for a wide range of working environments.

The device's contact position indicator, terminal connection type and mounting options on DIN rail EN 60715 (35mm) further enhance its usability and installation flexibility. The JCR1-40 RCBO has a recommended torque of 2.5Nm, uses bottom connection, is easy to install and maintain, and is a reliable and efficient choice for electrical protection needs.

	Standard	IEC/EN 61009-1
Electrical features	Rated current In (A)	6, 10, 16, 20, 25, 32, 40
	Type	Electronic
	Type (wave form of the earth leakage sensed)	A or AC are available
	Poles	1P+N( Switched Live and Neutral)
	Rated voltage Ue(V)	230/240
	Rated sensitivity I△n	30mA, 100mA,300mA
	Insulation voltage Ui (V)	500
	Rated frequency	50/60Hz
	Rated breaking capacity	6kA
	Rated residual making and breaking capacity I△m (A)	3000
	Rated impulse withstand voltage(1.2/50) Uimp (V)	4000
	Break time under I△n (s)	≤0.1
	Pollution degree	2
	Thermo-magnetic release characteristic	B, C
Mechanical features	Electrical life	2, 000
	Mechanical life	2, 000
	Contact position indicator	Yes
	Protection degree	IP20
	Reference temperature for setting of thermal element(℃)	30
	Ambient temperature (with daily average ≤35℃)	-5...+40
	Storage temperation (℃)	-25...+70
Installation	Terminal connection type	Cable/Pin-type busbar
	Terminal size top for cable	10mm²
	Terminal size bottom for cable	16mm² / 18-8 AWG
	Terminal size bottom for busbar	10mm² / 18-8 AWG
	Tightening torque	2.5 N*m / 22 In-Ibs.
	Mounting	On DIN rail EN 60715 (35mm) by means of fast clip device
	Connection	From bottom

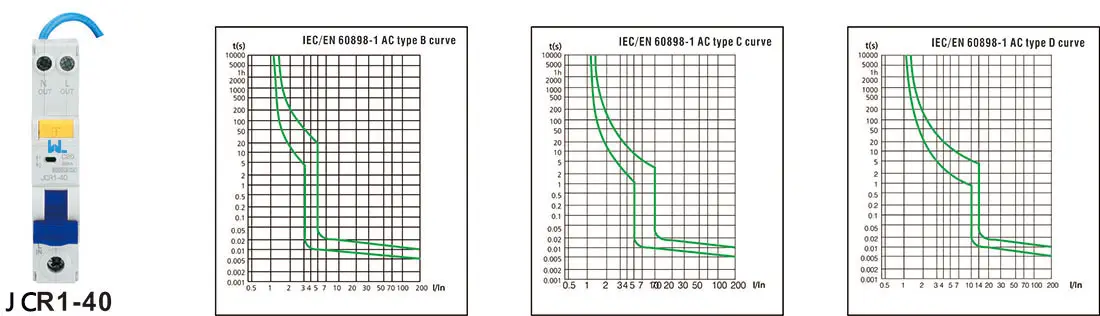

2-28bf2

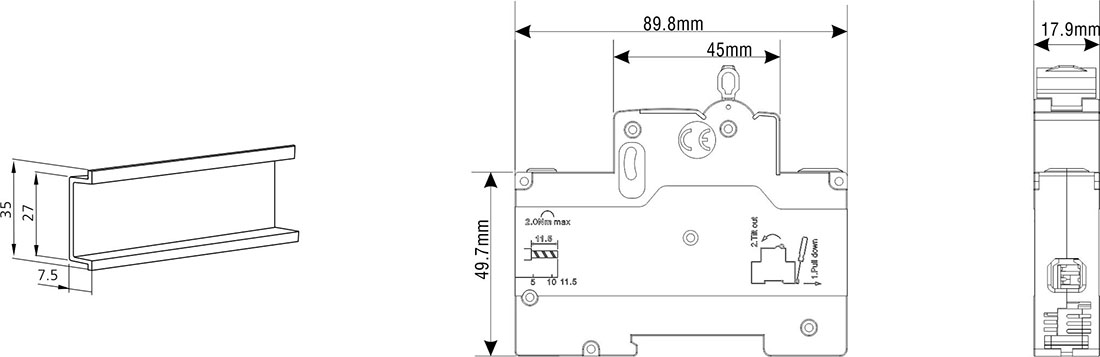

Single-Module-Mini-RCBO-with-Switched-Live-and-Neutral-6kA-JCR1-40_1-1m4x

Why use small RCBO?

Miniature RCBOs (Residual Current Circuit Breakers with Overcurrent Protection) offer a compelling solution for electrical installations due to the unique combination of RCD (Residual Current Device) and MCB (Miniature Circuit Breaker) functions in a single device. RCBO's RCD components are specifically designed to detect earth leakage, preventing the risk of current flowing where it shouldn't and providing vital protection to individuals.

In traditional residential installations, a combination of RCDs and MCBs are often used in consumer units to protect multiple circuits. However, this approach can lead to a situation where a ground fault on one circuit triggers the disconnection of an entire group of circuits, including those that are functioning normally. This practice violates the specific provisions outlined in the IET Wiring Regulations, 17th Edition, in particular Chapter 31 - Installation, Clause 314.1.

Regulation 314.1 emphasizes the need to divide installations into circuits to achieve several key objectives, including avoiding hazards in the event of failure, facilitating safety inspection, testing and maintenance, taking into account hazards arising from faults in individual circuits, and reducing inaccuracies not caused by faults. Possibility of necessary RCD tripping.

By integrating micro RCBOs into electrical installations, these devices are able to comply with the regulatory requirements outlined in the IET 17th Edition Wiring Regulations. They provide a more precise and targeted approach to circuit protection, ensuring that disconnection of a circuit is limited to the specific area affected by a fault, thereby increasing safety, minimizing disruption and simplifying maintenance and testing procedures. This makes micro RCBOs the first choice for modern electrical installations, complying with the principles of safety, efficiency and regulatory compliance.
