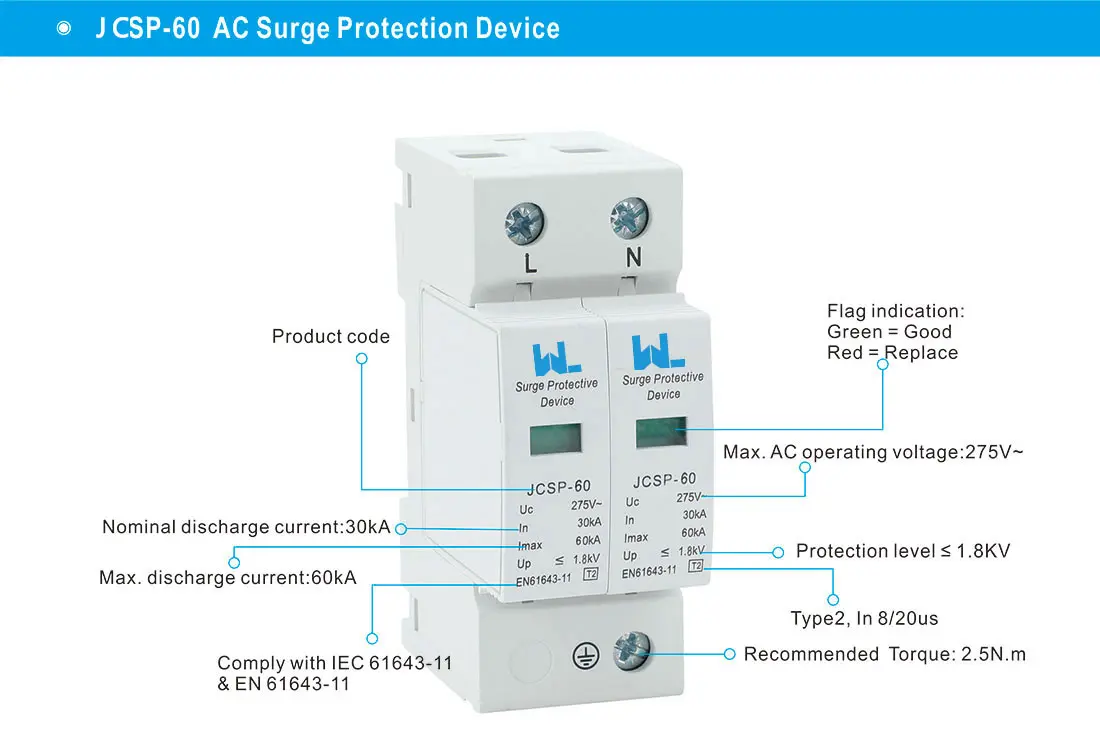

AC Surge Protective Device JCSP-60 Surge protection Device 30/60kA

JCSP-60 Type 2 AC Surge Protective Device is available in a variety of pole options to ensure it caters to your installation needs, including 1 pole, 2 pole, 2p+N, 3Pole, 4Pole, and 3P+N pole options. This makes it an incredibly versatile tool that can be used in many different environments, catering specifically to your needs.

The nominal discharge current of our product is In 30kA, and it offers a maximum discharge current of Imax 60kA for 8/20 µs. This means that it's a powerful tool that can protect all your electrical equipment from dangerous surges.

JCSP-60 Type 2 AC Surge Protective Device has a plug-in module design for ease of use, making it quick and effortless to connect and disconnect when necessary.

JCSP-60 surge arrestor is suitable for use on IT, TT, TN-C, TN-C-S power sources, making it incredibly versatile and ideal for a range of installations. Additionally, it complies with IEC61643-11 & EN 61643-11 standards, ensuring the highest level of product quality and safety.

In summary, our JCSP-60 Type 2 AC Surge Protective Device is a powerful, versatile tool that will keep all of your expensive electrical equipment safe and secure from surges of 8/20 μs. It's designed to cater to all of your installation needs and is incredibly easy to install. So, if you're looking for a reliable surge protector that will safeguard your electrical equipment from damage, our product is the perfect choice!

Main Features

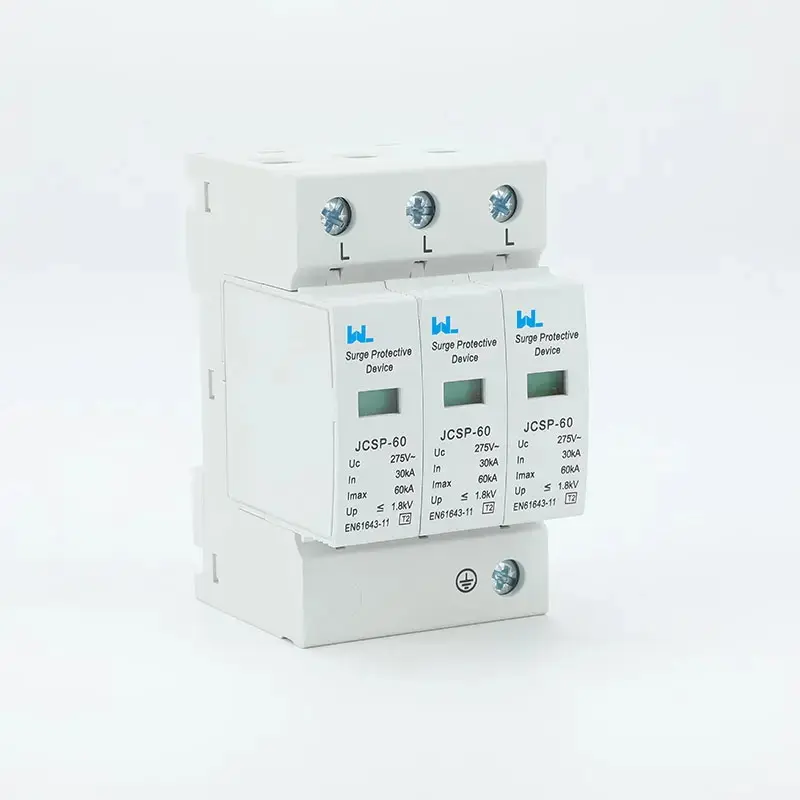

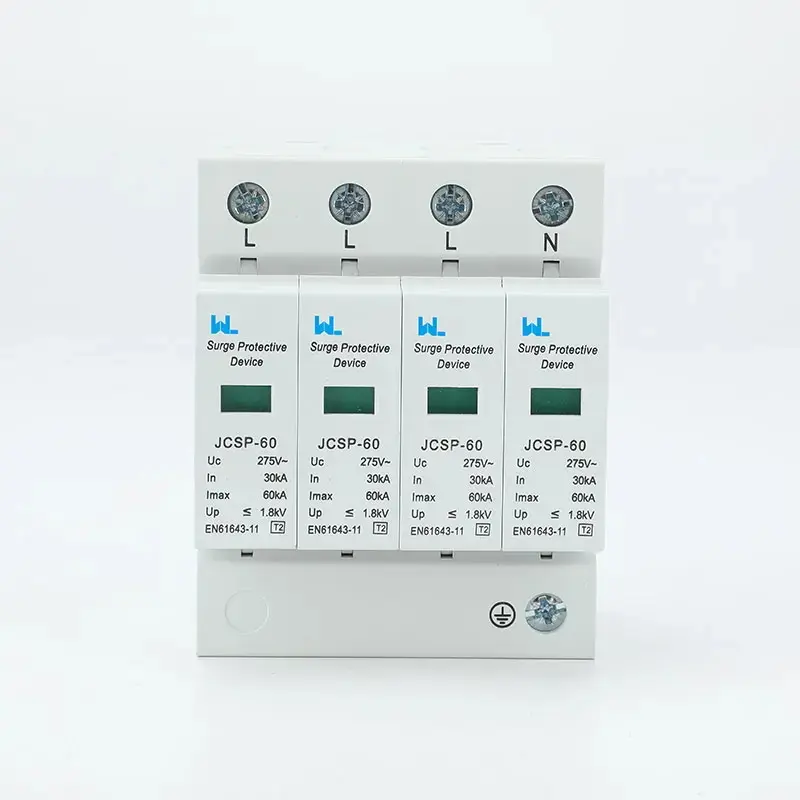

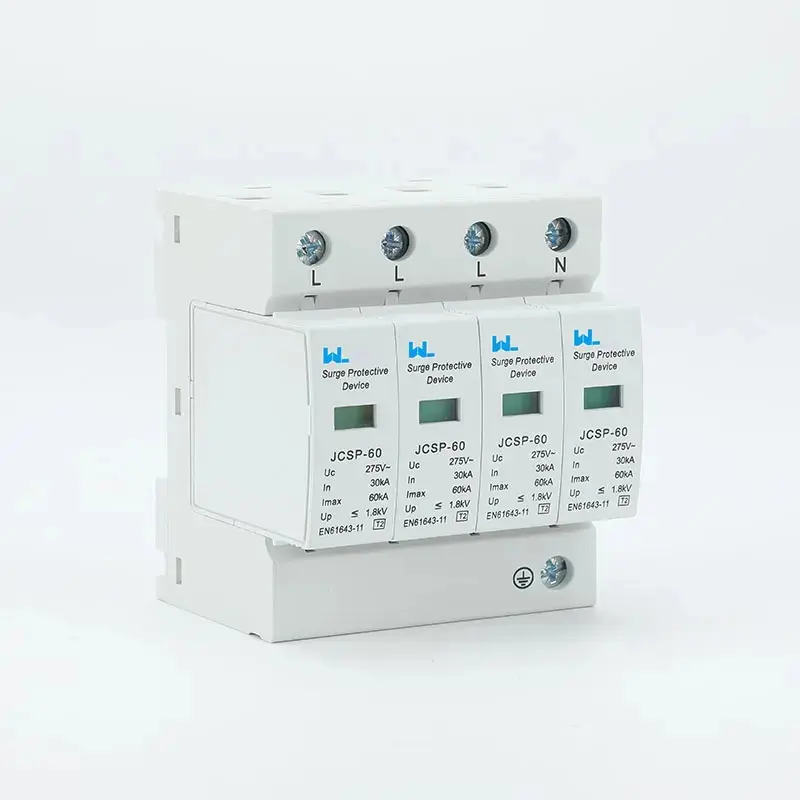

● Available in 1 Pole ,2P+N ,3 Pole,4 Pole, 3P+N
● MOV or MOV+GSG Technology
● Nominal discharge current In 20kA (8/20 µs) per path
● Maximum discharge current Imax 40kA (8/20 µs)
● Plug-in module design with status indication
● Visual Indication: Green=OK, Red=Replace
● Optional Remote indication contact
● Complies with IEC61643-11 & EN 61643-11

Technical Data
● Type 2
● Network, 230 V single-phase, 400 V 3-phase
● Max. AC operating voltage Uc: 275V
● Temporary Over Voltage (TOV) Charasteristics - 5 sec. UT: 335 Vac withstand
● Temporary Over Voltage (TOV) Charasteristics - 120 mn UT: 440 Vac disconnection
● Nominal discharge current In： 20 kA
● Max. discharge current Imax：40kA
● Total Maximum discharge current Imax total：80kA
● Withstand on Combination waveform IEC 61643-11 Uoc：6kV
● Protection level Up：1.5kV
● Protection level N/PE at 5 kA ：0.7 kV
● Residual voltage L/PE at 5 kA：0.7 kV
● Admissible short-circuit current：25kA
● Connection to Network：By screw terminals: 2.5-25 mm²

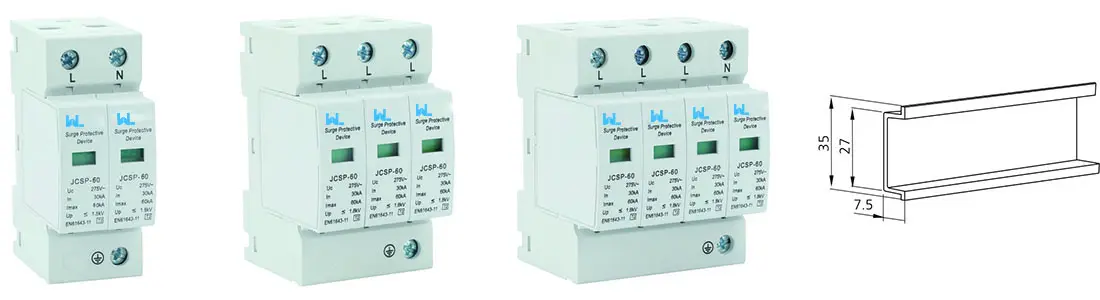

● Mounting：Symmetrical rail 35 mm (DIN 60715)
● Operating temperature：-40 / +85°C
● Protection rating：IP20
● Failsafe mode： Disconnection from AC network
● Disconnection indicator：1 mechanical indicator by pole - Red/Green
● Fuses：50 A mini. - 125 A max. - Fuses Type gG
● Standards compliance：IEC 61643-11 / EN 61643-11
